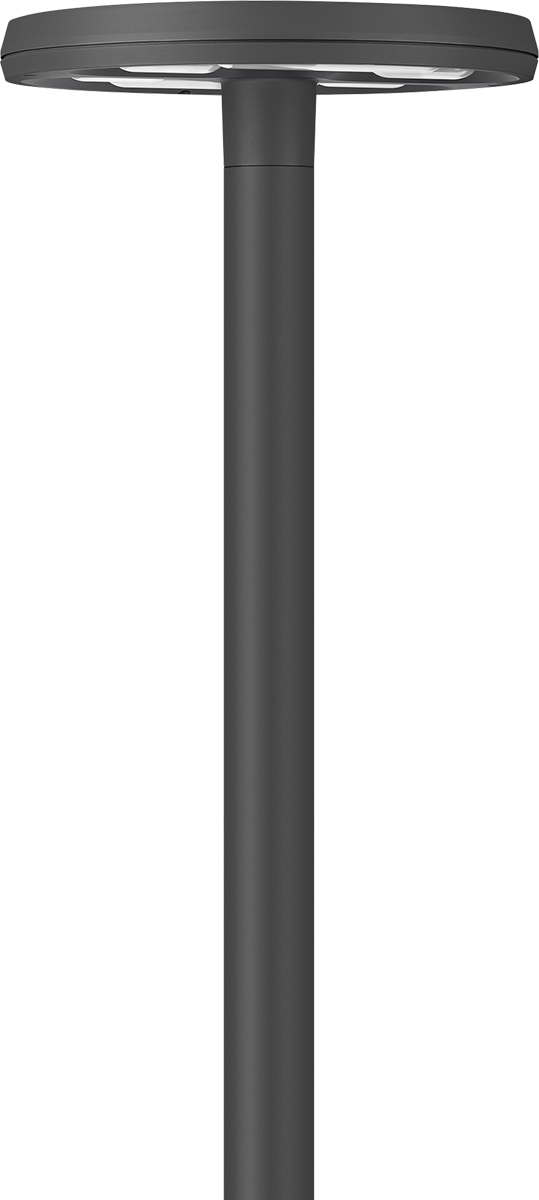

RMT320 One-sided

Family Spec Sheet Installation Instructions More Downloads

IP66. IK09. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection + primer including PCS hardware. RFC™ Reflection Free Contour main lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. DALI. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. DALI. CAD-optimised OLC® One LED Concept optics for superior illumination and glare control. Maximum spacing for pathway and streetlighting applications depends on wattage and light distribution:

Colours

RAL9004 Signal black

RAL9006 White aluminium

RAL9007 Grey aluminium

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS Polymer Coated Stainless Steel Hardware (unpainted)
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK09
Ingress Protection	IP66
Finish	Powdercoat finish in black RAL9004, grey aluminium RAL9007, white aluminium RAL9006 or white RAL9016
Corrosion Protection	5CE+Primer

Electrical

Ballast / Driver	Integral EC electronic converter. DALI
Cable	Pre-wired with 6 m cable in standard. The luminaire is factory-sealed.
Power Supply	230V / 50 Hz
Surge Protection	In-pole surge protection SP10 device supplied. Please refer to WE-EF installation instructions for details. Use suffix +A for Integral surge protection.

Additional Information

Warranty

The product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details.

Light Distribution

Delivered Lumen

Wattage

Colour Temperature

CRI

Part-ID	Light Distribution	Light Source	Delivered Lumen	CRI	Specifications
					Text	PDF
105-9870	asymmetric, side throw [S65]	LED-6/6W / 350 mA - 3000 K	857.3	80
105-9871	asymmetric, side throw [S65]	LED-6/12W / 700 mA - 3000 K	1520.3	80
105-9872	asymmetric, side throw [S65]	LED-12/12W / 350 mA - 3000 K	1714.5	80
105-9873	asymmetric, side throw [S65]	LED-12/24W / 700 mA - 3000 K	3040.6	80
105-9880	asymmetric, side throw [S65]	LED-6/6W / 350 mA - 4000 K	940.2	80
105-9881	asymmetric, side throw [S65]	LED-6/12W / 700 mA - 4000 K	1625.1	80
105-9882	asymmetric, side throw [S65]	LED-12/12W / 350 mA - 4000 K	1880.4	80
105-9883	asymmetric, side throw [S65]	LED-12/24W / 700 mA - 4000 K	3250.3	80
105-9890	asymmetric, side throw [S70]	LED-6/6W / 350 mA - 3000 K	851.6	80
105-9891	asymmetric, side throw [S70]	LED-6/12W / 700 mA - 3000 K	1510.3	80
105-9892	asymmetric, side throw [S70]	LED-12/12W / 350 mA - 3000 K	1703.3	80
105-9893	asymmetric, side throw [S70]	LED-12/24W / 700 mA - 3000 K	3020.6	80
105-9900	asymmetric, side throw [S70]	LED-6/6W / 350 mA - 4000 K	934.1	80
105-9901	asymmetric, side throw [S70]	LED-6/12W / 700 mA - 4000 K	1614.5	80
105-9902	asymmetric, side throw [S70]	LED-12/12W / 350 mA - 4000 K	1868.1	80
105-9903	asymmetric, side throw [S70]	LED-12/24W / 700 mA - 4000 K	3229	80
105-9910	rectangular, side throw [R65]	LED-6/6W / 350 mA - 3000 K	800.9	80
105-9911	rectangular, side throw [R65]	LED-6/12W / 700 mA - 3000 K	1420.4	80
105-9912	rectangular, side throw [R65]	LED-12/12W / 350 mA - 3000 K	1601.8	80
105-9913	rectangular, side throw [R65]	LED-12/24W / 700 mA - 3000 K	2840.7	80
105-9920	rectangular, side throw [R65]	LED-6/6W / 350 mA - 4000 K	878.4	80
105-9921	rectangular, side throw [R65]	LED-6/12W / 700 mA - 4000 K	1518.3	80
105-9922	rectangular, side throw [R65]	LED-12/12W / 350 mA - 4000 K	1756.8	80
105-9923	rectangular, side throw [R65]	LED-12/24W / 700 mA - 4000 K	3036.6	80
105-7006	pedestrian/bicycle lane [P65]	LED-6/6W / 350 mA - 3000 K	819.9	80
105-7022	pedestrian/bicycle lane [P65]	LED-6/6W / 350 mA - 4000 K	899.2	80
105-7007	pedestrian/bicycle lane [P65]	LED-6/12W / 700 mA - 3000 K	1454	80
105-7023	pedestrian/bicycle lane [P65]	LED-6/12W / 700 mA - 4000 K	1554.2	80
105-7008	pedestrian/bicycle lane [P65]	LED-12/12W / 350 mA - 3000 K	1639.7	80
105-7024	pedestrian/bicycle lane [P65]	LED-12/12W / 350 mA - 4000 K	1798.4	80
105-7009	pedestrian/bicycle lane [P65]	LED-12/24W / 700 mA - 3000 K	2907.9	80
105-7025	pedestrian/bicycle lane [P65]	LED-12/24W / 700 mA - 4000 K	3108.4	80
105-7016	pedestrian/bicycle lane [P65]	LED-12/36W / 1050 mA - 3000 K	4548.9	80
105-7032	pedestrian/bicycle lane [P65]	LED-12/36W / 1050 mA - 4000 K	4760.4	80
105-7017	pedestrian/bicycle lane [P65]	LED-12/52W / 1400 mA - 3000 K	5515	80
105-7033	pedestrian/bicycle lane [P65]	LED-12/52W / 1400 mA - 4000 K	5765.7	80
105-9930	asymmetric, side throw [S65]	LED-12/36W / 1050 mA - 3000 K	4756.4	80
105-9936	asymmetric, side throw [S65]	LED-12/36W / 1050 mA - 4000 K	4977.6	80
105-9931	asymmetric, side throw [S65]	LED-12/52W / 1400 mA - 3000 K	5766.6	80
105-9937	asymmetric, side throw [S65]	LED-12/52W / 1400 mA - 4000 K	6028.7	80
105-9942	asymmetric, side throw [S70]	LED-12/36W / 1050 mA - 3000 K	4725.2	80
105-7000	asymmetric, side throw [S70]	LED-12/36W / 1050 mA - 4000 K	4945	80
105-9943	asymmetric, side throw [S70]	LED-12/52W / 1400 mA - 3000 K	5728.8	80
105-7001	asymmetric, side throw [S70]	LED-12/52W / 1400 mA - 4000 K	5989.2	80
105-7038	rectangular, side throw [R65]	LED-12/36W / 1050 mA - 3000 K	4443.8	80
105-7044	rectangular, side throw [R65]	LED-12/36W / 1050 mA - 4000 K	4650.5	80
105-7039	rectangular, side throw [R65]	LED-12/52W / 1400 mA - 3000 K	5387.6	80
105-7045	rectangular, side throw [R65]	LED-12/52W / 1400 mA - 4000 K	5632.5	80
105-7105	pedestrian/bicycle lane [P65]	LED-6/6W / 350 mA - 2700 K	767	80
105-7109	pedestrian/bicycle lane [P65]	LED-6/12W / 700 mA - 2700 K	1353.7	80

Showing 1 to 50 of 92 entries.
