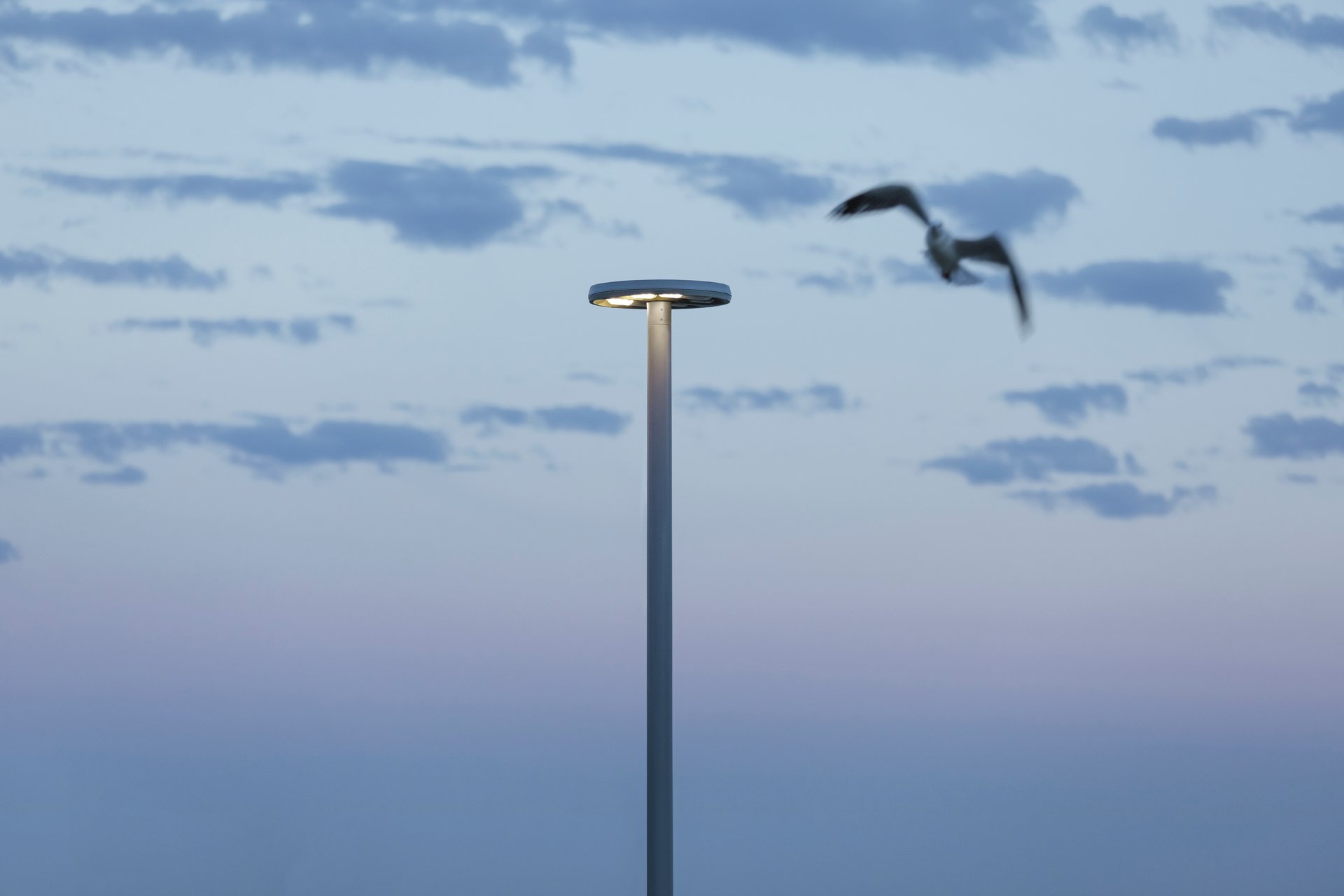

IP66. IK09. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. RFC™ Reflection Free Contour main lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral electronic converter with DALI interface. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Including 0.5 m cable with a cable connector. Maximum spacing for pathway and streetlighting applications depends on wattage and light distribution: 5.5 to 9 times the mounting height. Wild-Light options available on request.

RMT320 One-sided Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK09
Ingress ProtectionIP66
FinishPowdercoat finish in black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Corrosion Protection5CE
MountingMaximum spacing for pathway and streetlighting applications depends on wattage and light distribution: 5.5 to 9 times the mounting height
Electrical
Ballast / DriverIntegral electronic converter with DALI interface
CableIncluding 0.5 m cable with a cable connector
Additional Information
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
105-9870asymmetric, side throw [S65]LED-6/6W / 350 mA - 3000 K857.380
105-9871asymmetric, side throw [S65]LED-6/12W / 700 mA - 3000 K1520.380
105-9872asymmetric, side throw [S65]LED-12/12W / 350 mA - 3000 K1714.580
105-9873asymmetric, side throw [S65]LED-12/24W / 700 mA - 3000 K3040.680
105-9880asymmetric, side throw [S65]LED-6/6W / 350 mA - 4000 K940.280
105-9881asymmetric, side throw [S65]LED-6/12W / 700 mA - 4000 K1625.180
105-9882asymmetric, side throw [S65]LED-12/12W / 350 mA - 4000 K1880.480
105-9883asymmetric, side throw [S65]LED-12/24W / 700 mA - 4000 K3250.380
105-9890asymmetric, side throw [S70]LED-6/6W / 350 mA - 3000 K851.680
105-9891asymmetric, side throw [S70]LED-6/12W / 700 mA - 3000 K1510.380
105-9892asymmetric, side throw [S70]LED-12/12W / 350 mA - 3000 K1703.380
105-9893asymmetric, side throw [S70]LED-12/24W / 700 mA - 3000 K3020.680
105-9900asymmetric, side throw [S70]LED-6/6W / 350 mA - 4000 K934.180
105-9901asymmetric, side throw [S70]LED-6/12W / 700 mA - 4000 K1614.580
105-9902asymmetric, side throw [S70]LED-12/12W / 350 mA - 4000 K1868.180
105-9903asymmetric, side throw [S70]LED-12/24W / 700 mA - 4000 K322980
105-9910rectangular, side throw [R65]LED-6/6W / 350 mA - 3000 K800.980
105-9911rectangular, side throw [R65]LED-6/12W / 700 mA - 3000 K1420.480
105-9912rectangular, side throw [R65]LED-12/12W / 350 mA - 3000 K1601.880
105-9913rectangular, side throw [R65]LED-12/24W / 700 mA - 3000 K2840.780
105-9920rectangular, side throw [R65]LED-6/6W / 350 mA - 4000 K878.480
105-9921rectangular, side throw [R65]LED-6/12W / 700 mA - 4000 K1518.380
105-9922rectangular, side throw [R65]LED-12/12W / 350 mA - 4000 K1756.880
105-9923rectangular, side throw [R65]LED-12/24W / 700 mA - 4000 K3036.680
105-7006pedestrian/bicycle lane [P65]LED-6/6W / 350 mA - 3000 K819.980
105-7022pedestrian/bicycle lane [P65]LED-6/6W / 350 mA - 4000 K899.280
105-7007pedestrian/bicycle lane [P65]LED-6/12W / 700 mA - 3000 K145480
105-7023pedestrian/bicycle lane [P65]LED-6/12W / 700 mA - 4000 K1554.280
105-7008pedestrian/bicycle lane [P65]LED-12/12W / 350 mA - 3000 K1639.780
105-7024pedestrian/bicycle lane [P65]LED-12/12W / 350 mA - 4000 K1798.480
105-7009pedestrian/bicycle lane [P65]LED-12/24W / 700 mA - 3000 K2907.980
105-7025pedestrian/bicycle lane [P65]LED-12/24W / 700 mA - 4000 K3108.480
105-7016pedestrian/bicycle lane [P65]LED-12/36W / 1050 mA - 3000 K4548.980
105-7032pedestrian/bicycle lane [P65]LED-12/36W / 1050 mA - 4000 K4760.480
105-7017pedestrian/bicycle lane [P65]LED-12/52W / 1400 mA - 3000 K551580
105-7033pedestrian/bicycle lane [P65]LED-12/52W / 1400 mA - 4000 K5765.780
105-9930asymmetric, side throw [S65]LED-12/36W / 1050 mA - 3000 K4756.480
105-9936asymmetric, side throw [S65]LED-12/36W / 1050 mA - 4000 K4977.680
105-9931asymmetric, side throw [S65]LED-12/52W / 1400 mA - 3000 K5766.680
105-9937asymmetric, side throw [S65]LED-12/52W / 1400 mA - 4000 K6028.780
105-9942asymmetric, side throw [S70]LED-12/36W / 1050 mA - 3000 K4725.280
105-7000asymmetric, side throw [S70]LED-12/36W / 1050 mA - 4000 K494580
105-9943asymmetric, side throw [S70]LED-12/52W / 1400 mA - 3000 K5728.880
105-7001asymmetric, side throw [S70]LED-12/52W / 1400 mA - 4000 K5989.280
105-7038rectangular, side throw [R65]LED-12/36W / 1050 mA - 3000 K4443.880
105-7044rectangular, side throw [R65]LED-12/36W / 1050 mA - 4000 K4650.580
105-7039rectangular, side throw [R65]LED-12/52W / 1400 mA - 3000 K5387.680
105-7045rectangular, side throw [R65]LED-12/52W / 1400 mA - 4000 K5632.580
105-7105pedestrian/bicycle lane [P65]LED-6/6W / 350 mA - 2700 K76780
105-7109pedestrian/bicycle lane [P65]LED-6/12W / 700 mA - 2700 K1353.780
Showing 1 to 50 of 91 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
430-0019R2C Ready to Connect (top)
