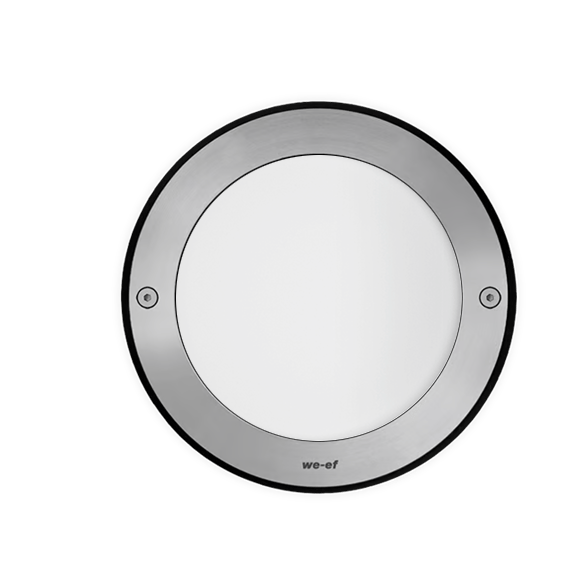

IP67, Class I. IK10+. Stainless steel construction including PCS hardware. Silicone rubber gasket. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 0,5 m of flexible PVC free cable. Cable gland with spiral cable bending protection. Integral EC electronic converter. Luminaire requires installation blockout and sealable junction box, which are included in supply. 2700 K option available on request. IMPORTANT! Inground blockouts must be installed with effective drainage, watch here.

Colours

Stainless Steel

Material

Body	Stainless steel construction
Fasteners	PCS Polymer Coated Stainless Steel Hardware (unpainted)
Gasket	Silicone rubber gasket
Impact Protection	IK10+
Ingress Protection	IP67

Electrical

Ballast / Driver	Integral EC electronic converter
Cable	Complete with cable gland and 0.5 m of flexible PVC-free cable
Power Supply	230V / 50 Hz

Additional Information

Warranty

The product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details. Warranty void if installed without proper drainage.

Rated Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Rated Lumen	CRI	Specifications		Photometrics
					Text	PDF
185-7261	symmetric, diffused distribution	LED-6/12W / 700 mA - 3000 K	369.2	80			ULD
185-7262	symmetric, diffused distribution	LED-6/12W / 700 mA - 4000 K	394.7	80			ULD

Showing 1 to 2 of 2 entries.

Accessories

Item	Download
Product Images
Photometrics
Installation Instructions
