FLA400 series

FLA461 LED Bracket version

Static White

Choose a family:

L385×W260 mm | FLA440 LED Stirrup version L385×W260 mm | FLA441 LED Bracket version L530×W360 mm | FLA460 LED Stirrup version L530×W350 mm | FLA461 LED Bracket version
Home
Products
Pole-Mounted Luminaires

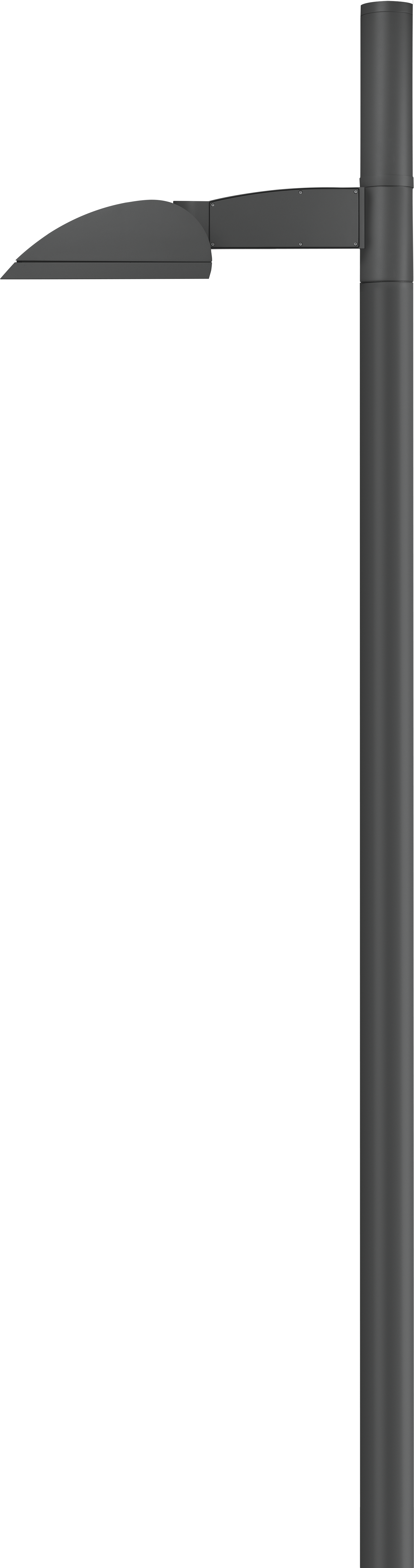

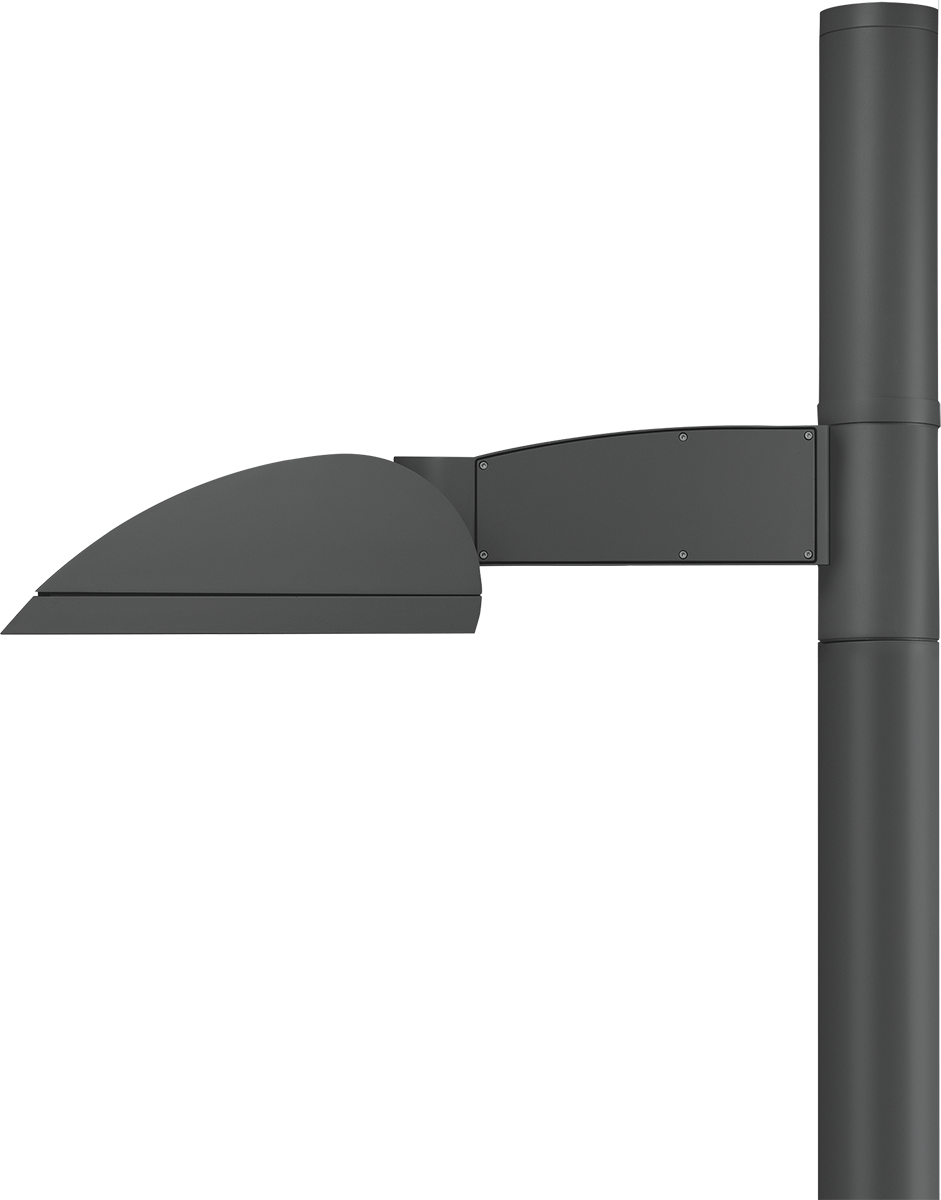

FLA461 LED Bracket version
Family Spec Sheet Installation Instructions More Downloads

IP66. Class I. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens, hinged. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. LED board can be easily removed for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Maximum spacing for streetlighting applications depends on wattage and light distribution: 5.5 to 9 times the mounting height.

FLA461 LED Bracket version Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
FinishPowdercoat finish in Classic Silver, black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter, including 6/6 kV surge protection
Additional Information
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
108-7810pedestrian/bicycle lane [P65]LED-36/72W / 700 mA - 3000 K8098.280
108-7811pedestrian/bicycle lane [P65]LED-36/72W / 700 mA - 4000 K8656.780
108-7762asymmetric, side throw [S60]LED-36/72W / 700 mA - 3000 K8316.880
108-7763asymmetric, side throw [S60]LED-36/72W / 700 mA - 4000 K8890.480
108-7764asymmetric, side throw [S65]LED-36/72W / 700 mA - 3000 K8365.580
108-7765asymmetric, side throw [S65]LED-36/72W / 700 mA - 4000 K8942.480
108-7766asymmetric, side throw [S70]LED-36/72W / 700 mA - 3000 K8105.780
108-7767asymmetric, side throw [S70]LED-36/72W / 700 mA - 4000 K8664.780
108-7770asymmetric, forward throw [A60]LED-36/72W / 700 mA - 3000 K7798.980
108-7771asymmetric, forward throw [A60]LED-36/72W / 700 mA - 4000 K8336.880
108-7768rectangular, side throw [R65]LED-36/72W / 700 mA - 3000 K7621.480
108-7769rectangular, side throw [R65]LED-36/72W / 700 mA - 4000 K814780
108-7812pedestrian/bicycle lane [P65]LED-36/108W / 1050 mA - 3000 K12007.780
108-7813pedestrian/bicycle lane [P65]LED-36/108W / 1050 mA - 4000 K12566.280
108-7772asymmetric, side throw [S60]LED-36/108W / 1050 mA - 3000 K12331.880
108-7773asymmetric, side throw [S60]LED-36/108W / 1050 mA - 4000 K12905.480
108-7774asymmetric, side throw [S65]LED-36/108W / 1050 mA - 3000 K1240480
108-7775asymmetric, side throw [S65]LED-36/108W / 1050 mA - 4000 K12980.980
108-7776asymmetric, side throw [S70]LED-36/108W / 1050 mA - 3000 K12018.880
108-7777asymmetric, side throw [S70]LED-36/108W / 1050 mA - 4000 K12577.880
108-7780asymmetric, forward throw [A60]LED-36/108W / 1050 mA - 3000 K11563.980
108-7781asymmetric, forward throw [A60]LED-36/108W / 1050 mA - 4000 K12101.880
108-7778rectangular, side throw [R65]LED-36/108W / 1050 mA - 3000 K11300.680
108-7779rectangular, side throw [R65]LED-36/108W / 1050 mA - 4000 K11826.380
Showing 1 to 24 of 24 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
310-9134Single column fitter EB1-102
310-9135Double column fitter EB2-102
