FLC301 RAIL66

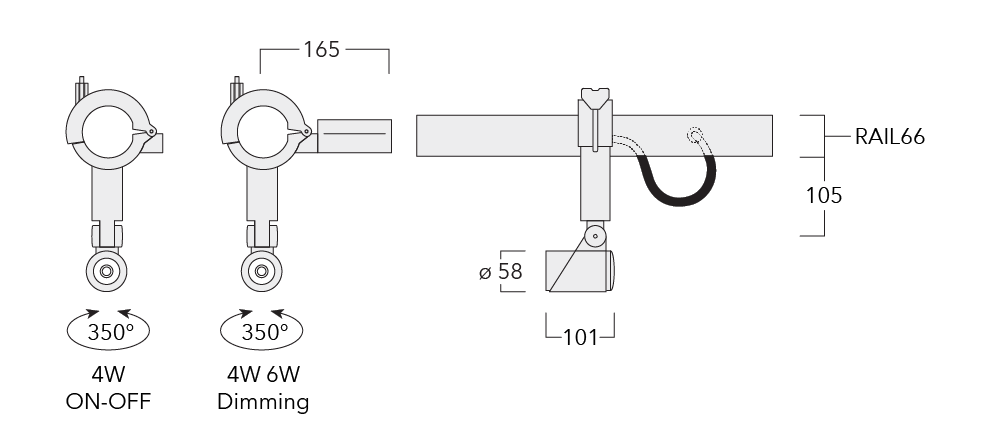

IP66. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Mains voltage versions, ON-OFF Class I (only 4W). Integral EC electronic converter. 1-10 V analogue dimming or DALI interface available on request (converter in thermally-separated compartment); refer to accessory listings. Including 0.4 m of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system. Optical accessories are factory-installed. To be specified at time of ordering.

Colors

RAL9004 Signal black

RAL9006 White aluminium

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

Powdercoat finish available in 35 different colours

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS hardware
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK07
Ingress Protection	IP66
Finish
Corrosion Protection	5CE
Mounting	Including 1.3 ft of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system

Electrical

Ballast / Driver	Integral EC electronic converter
Cable	Including 0.4 m of flexible cable
Power Factor
Power Supply
Surge Protection

Additional Information

Lifetime	Ta=25° L90B10 > 90000h

Light Distribution

Delivered Lumen

To

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-7216	symmetric, wide beam [B]	LED-1/4W / 350 mA – 2700 K	379.1	80
145-7217	symmetric, wide beam [B]	LED-1/4W / 350 mA – 3000 K	379.1	80
145-7218	symmetric, wide beam [B]	LED-1/4W / 350 mA – 4000 K	410.1	80
145-7300	symmetric, wide beam [B]	LED-1/6W / 500 mA - 2700 K	518.4	80
145-7301	symmetric, wide beam [B]	LED-1/6W / 500 mA - 3000 K	518.4	80
145-7302	symmetric, wide beam [B]	LED-1/6W / 500 mA - 4000 K	557.1	80
145-7219	symmetric, medium beam [M]	LED-1/4W / 350 mA – 2700 K	398.4	80
145-7220	symmetric, medium beam [M]	LED-1/4W / 350 mA – 3000 K	398.4	80
145-7221	symmetric, medium beam [M]	LED-1/4W / 350 mA – 4000 K	431	80
145-7303	symmetric, medium beam [M]	LED-1/6W / 500 mA - 2700 K	544.8	80
145-7304	symmetric, medium beam [M]	LED-1/6W / 500 mA - 3000 K	544.8	80
145-7305	symmetric, medium beam [M]	LED-1/6W / 500 mA - 4000 K	585.5	80
145-7249	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 2700 K	415.2	80
145-7250	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 3000 K	415.2	80
145-7251	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 4000 K	449.1	80
145-7306	symmetric, narrow beam [E]	LED-1/6W / 500 mA - 2700 K	567.7	80
145-7307	symmetric, narrow beam [E]	LED-1/6W / 500 mA - 3000 K	567.7	80
145-7308	symmetric, narrow beam [E]	LED-1/6W / 500 mA - 4000 K	610.1	80
145-7222	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 2700 K	415.5	80
145-7223	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 3000 K	415.5	80
145-7224	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 4000 K	449.5	80
145-7309	symmetric, very narrow beam [EE]	LED-1/6W / 500 mA - 2700 K	568.2	80
145-7310	symmetric, very narrow beam [EE]	LED-1/6W / 500 mA - 3000 K	568.2	80
145-7311	symmetric, very narrow beam [EE]	LED-1/6W / 500 mA - 4000 K	610.6	80
145-7225	symmetric, very narrow beam, sharp cut-off [EES]	LED-1/4W / 350 mA – 2700 K	382.2	80

Showing 1 to 25 of 54 Entries
