FLC301 Space frame

IP66. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Mains voltage versions, ON-OFF Class I (only 4W). 1-10 V analogue dimming or DALI interface available on request; refer to accessory listings. Including terminal box, for mounting on ø 48-60 mm pipes or space frames. Optical accessories are factory-installed. To be specified at time of ordering.

Colors

RAL9004 Signal black

RAL9006 White aluminium

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

Powdercoat finish available in 35 different colours

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS hardware
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK07
Ingress Protection	IP66
Finish
Corrosion Protection	5CE

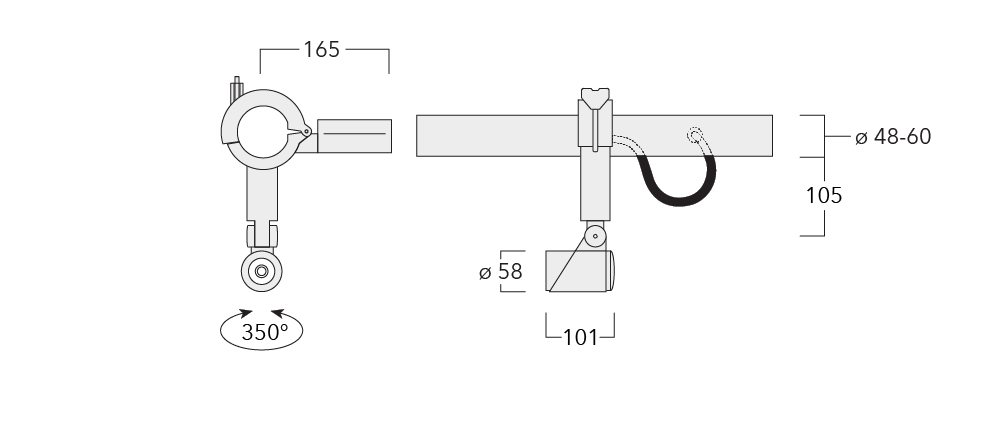

Mounting	Including terminal box, for mounting on ø 48-60 mm pipes or space frames

Electrical

Ballast / Driver	Integral EC electronic converter in thermally-separated compartment
Cable
Power Factor
Power Supply
Surge Protection

Additional Information

Lifetime	Ta=25° L90B10 > 90000h

Light Distribution

Delivered Lumen

To

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-7270	symmetric, wide beam [B]	LED-1/4W / 350 mA – 2700 K	379.1	80
145-7271	symmetric, wide beam [B]	LED-1/4W / 350 mA – 3000 K	379.1	80
145-7272	symmetric, wide beam [B]	LED-1/4W / 350 mA – 4000 K	410.1	80
145-7285	symmetric, wide beam [B]	LED-1/6W / 500 mA - 2700 K	518.4	80
145-7286	symmetric, wide beam [B]	LED-1/6W / 500 mA - 3000 K	518.4	80
145-7287	symmetric, wide beam [B]	LED-1/6W / 500 mA - 4000 K	557.1	80
145-7273	symmetric, medium beam [M]	LED-1/4W / 350 mA – 2700 K	398.4	80
145-7274	symmetric, medium beam [M]	LED-1/4W / 350 mA – 3000 K	398.4	80
145-7275	symmetric, medium beam [M]	LED-1/4W / 350 mA – 4000 K	431	80
145-7288	symmetric, medium beam [M]	LED-1/6W / 500 mA - 2700 K	544.8	80
145-7289	symmetric, medium beam [M]	LED-1/6W / 500 mA - 3000 K	544.8	80
145-7290	symmetric, medium beam [M]	LED-1/6W / 500 mA - 4000 K	585.5	80
145-7276	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 2700 K	415.2	80
145-7277	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 3000 K	415.2	80
145-7278	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 4000 K	449.1	80
145-7291	symmetric, narrow beam [E]	LED-1/6W / 500 mA - 2700 K	567.7	80
145-7292	symmetric, narrow beam [E]	LED-1/6W / 500 mA - 3000 K	567.7	80
145-7293	symmetric, narrow beam [E]	LED-1/6W / 500 mA - 4000 K	610.1	80
145-7279	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 2700 K	415.5	80
145-7280	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 3000 K	415.5	80
145-7281	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 4000 K	449.5	80
145-7294	symmetric, very narrow beam [EE]	LED-1/6W / 500 mA - 2700 K	568.2	80
145-7295	symmetric, very narrow beam [EE]	LED-1/6W / 500 mA - 3000 K	568.2	80
145-7282	symmetric, very narrow beam, sharp cut-off [EES]	LED-1/4W / 350 mA – 2700 K	382.2	80
145-7296	symmetric, very narrow beam [EE]	LED-1/6W / 500 mA - 4000 K	610.6	80

Showing 1 to 25 of 39 Entries
