FLC300 series

FLC321 RAIL66

Static White

Choose a variant:

RAIL66
Space Frame

Choose a family:

⌀2.28" | FLC301 RAIL66 ⌀3.35" | FLC311 RAIL66 ⌀4.53" | FLC321 RAIL66
Home
Products
RAIL66
FLC321 RAIL66
Family Spec Sheet Installation Instructions More Downloads

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. 12W, 18W, 26W / 120-277V / 0-10V Dimming. Including 1.3 ft of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system. Optical accessories are factory-installed. To be specified at time of ordering.

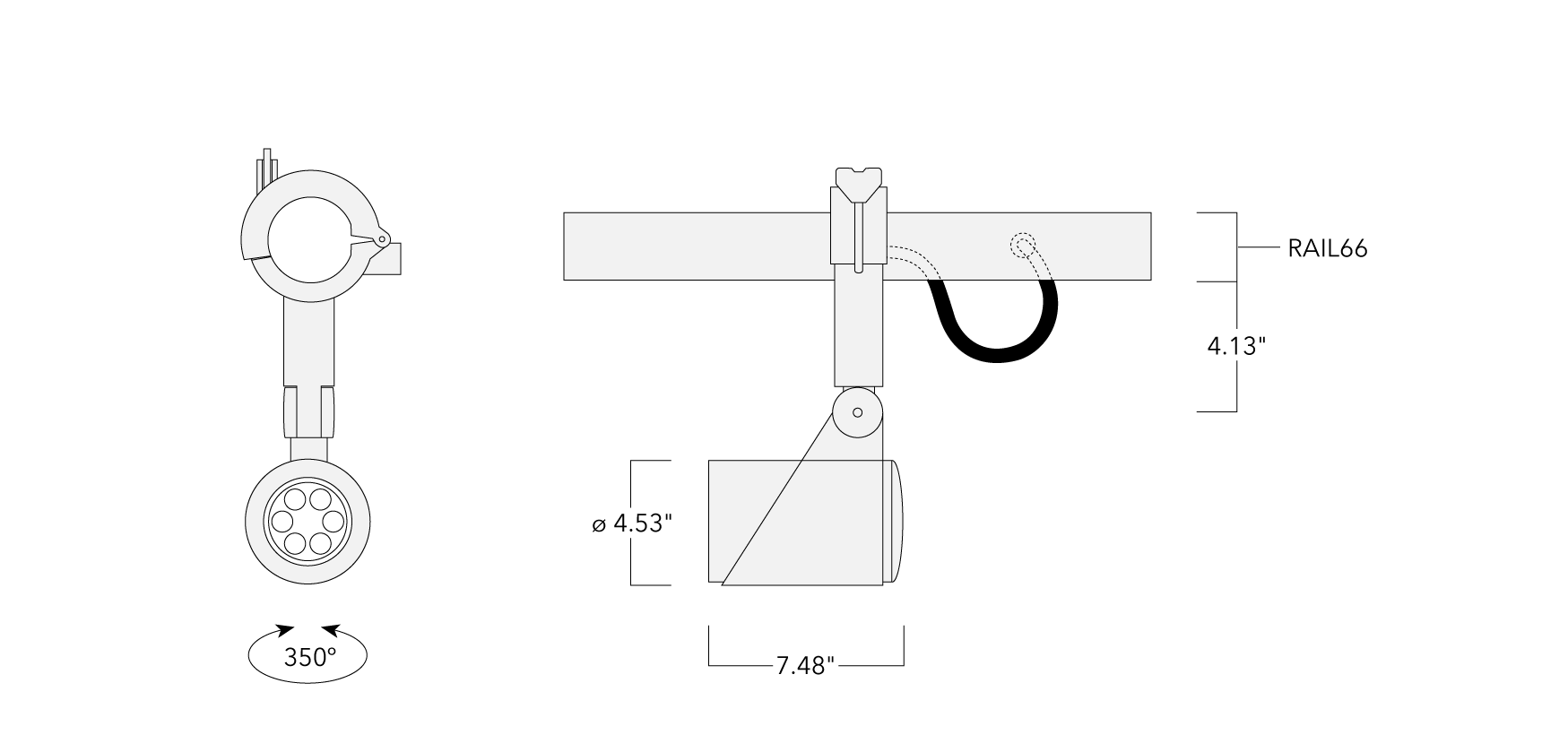

FLC321 RAIL66 Schematics
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
MountingIncluding 1.3 ft of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system.
Electrical
Ballast / Driver120-277V AC/50-60 Hz
CableIncluding 1.3 ft of flexible cable
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
145-7924symmetric, wide beam [W]LED-6/12W / 700 mA - 2700 K887.880
145-7926symmetric, wide beam [W]LED-6/12W / 700 mA - 3000 K953.580
145-7928symmetric, wide beam [W]LED-6/12W / 700 mA - 4000 K1019.380
145-7930symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1162.680
145-7932symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1248.780
145-7934symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1334.980
145-7936symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 2700 K1224.780
145-7938symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 3000 K1315.480
145-7940symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 4000 K1406.280
145-7942symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 2700 K1259.780
145-7944symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 3000 K135380
145-7946symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 4000 K1446.380
145-7925symmetric, wide beam [W]LED-6/18W / 1050 mA - 2700 K123380
145-7927symmetric, wide beam [W]LED-6/18W / 1050 mA - 3000 K1331.780
145-7929symmetric, wide beam [W]LED-6/18W / 1050 mA - 4000 K1413.980
145-7931symmetric, medium beam [M]LED-6/18W / 1050 mA - 2700 K1614.880
145-7933symmetric, medium beam [M]LED-6/18W / 1050 mA - 3000 K1743.980
145-7935symmetric, medium beam [M]LED-6/18W / 1050 mA - 4000 K1851.680
145-7937symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 2700 K170180
145-7939symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 3000 K1837.180
145-7941symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 4000 K1950.580
145-7943symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/18W / 1050 mA - 2700 K1749.680
145-7945symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/18W / 1050 mA - 3000 K1889.580
145-7947symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/18W / 1050 mA - 4000 K2006.280
145-7356symmetric, wide beam [W]LED-6/26W / 1400 mA - 2700K1665.880
145-7357symmetric, wide beam [W]LED-6/26W / 1400 mA - 3000K1761.980
145-7358symmetric, wide beam [W]LED-6/26W / 1400 mA - 4000K184280
145-7359symmetric, medium beam [M]LED-6/26W / 1400 mA - 2700K2179.380
145-7360symmetric, medium beam [M]LED-6/26W / 1400 mA - 3000K230580
145-7361symmetric, medium beam [M]LED-6/26W / 1400 mA - 4000K2409.880
145-7362symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 2700K2258.580
145-7363symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 3000K2388.880
145-7364symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 4000K2497.480
145-7365symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/26W / 1400 mA - 2700K2319.780
145-7366symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/26W / 1400 mA - 3000K2453.580
145-7367symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/26W / 1400 mA - 4000K256580
145-7935wallwashLED-6/18W / 1050 mA - 4000 K1579.480
145-7936linear spread, very narrow beam [VN]LED-6/12W / 700 mA - 2700 K109680
145-7938linear spread, very narrow beam [VN]LED-6/12W / 700 mA - 3000 K1177.280
145-7940linear spread, very narrow beam [VN]LED-6/12W / 700 mA - 4000 K1258.480
145-7937linear spread, very narrow beam [VN]LED-6/18W / 1050 mA - 2700 K1522.280
145-7939linear spread, very narrow beam [VN]LED-6/18W / 1050 mA - 3000 K164480
145-7941linear spread, very narrow beam [VN]LED-6/18W / 1050 mA - 4000 K1745.580
145-7362linear spread, very narrow beam [VN]LED-6/26W / 1400 mA - 2700K2027.280
145-7363linear spread, very narrow beam [VN]LED-6/26W / 1400 mA - 3000K2144.180
145-7364linear spread, very narrow beam [VN]LED-6/26W / 1400 mA - 4000K2241.680
145-7942linear spread, very narrow beam, 'sharp cut-off'LED-6/12W / 700 mA - 2700 K1125.580
145-7944linear spread, very narrow beam, 'sharp cut-off'LED-6/12W / 700 mA - 3000 K1208.880
145-7946linear spread, very narrow beam, 'sharp cut-off'LED-6/12W / 700 mA - 4000 K1292.280
145-7943linear spread, very narrow beam, 'sharp cut-off'LED-6/18W / 1050 mA - 2700 K1563.180
Showing 1 to 50 of 63 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
310-92002 Mains outlets (L=45.28)
310-92023 Mains outlets (L=45.28)
310-92103 Mains outlets (L=64.69)
310-92124 Mains outlets (L=64.69)
310-92204 Mains outlets (L=84.65)
310-92226 Mains outlets (L=84.65)
