FLC300 series

FLC301 RAIL66

Static White

Choose a variant:

RAIL66
Space Frame

Choose a family:

FLC301 RAIL66
Diameter ⌀: 2.28 in
FLC311 RAIL66
Diameter ⌀: 3.35 in
FLC321 RAIL66
Diameter ⌀: 4.53 in
Home
Products
RAIL66
FLC301 RAIL66
Family Spec Sheet Installation Instructions More Downloads

IP66. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. 4W / 120V mains voltage version, ON-OFF Class I. Including 1.3 ft of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system.

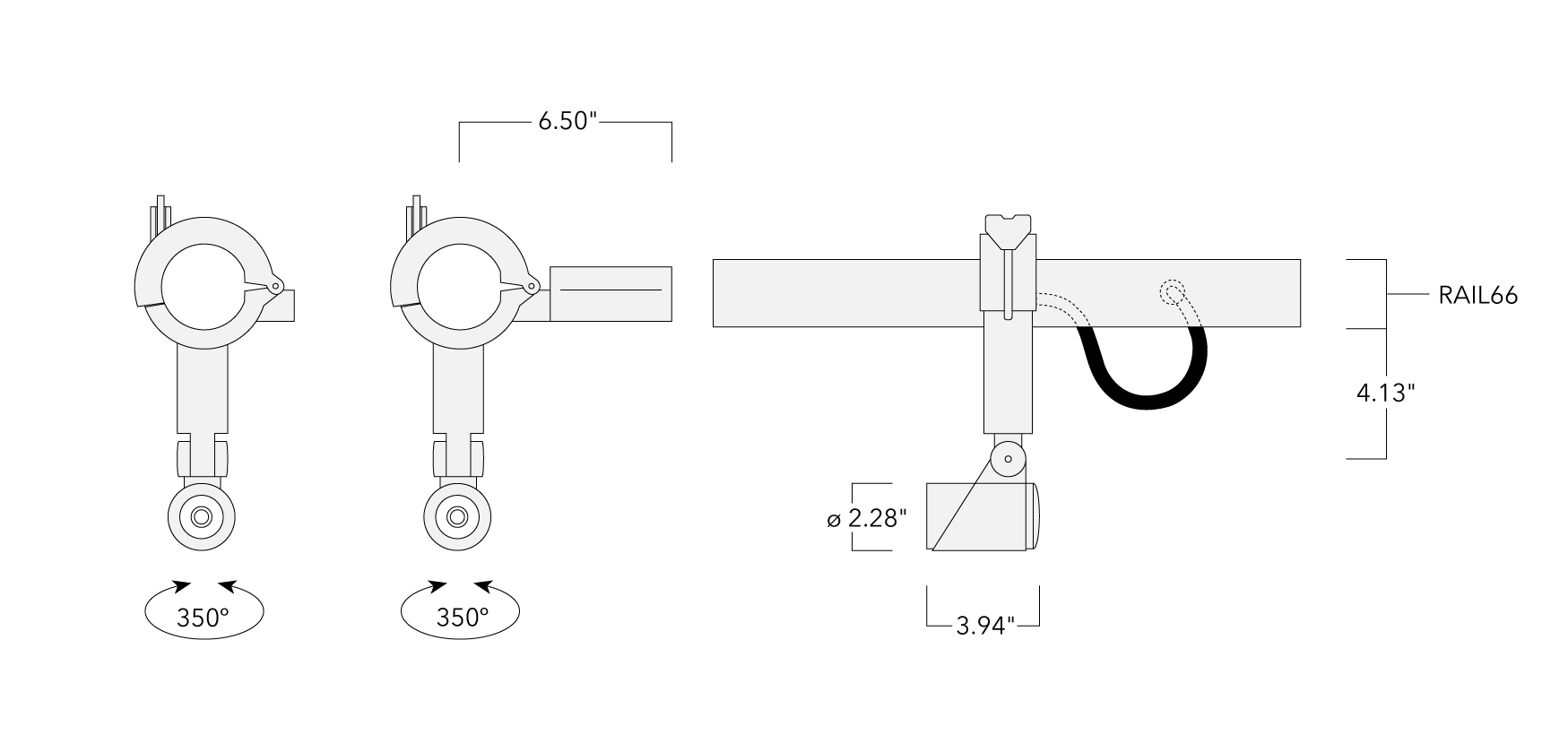

FLC301 RAIL66 Schematics
Colors
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Corrosion Protection5CE
MountingIncluding 1.3 ft of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system
Electrical
Ballast / DriverIntegral EC electronic converter
CableIncluding 1.3 ft of flexible cable
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Rated Lumen

Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
145-7216symmetric, wide beam [W]LED-1/4W / 350 mA – 2700 K379.180 ULD
145-7217symmetric, wide beam [W]LED-1/4W / 350 mA – 3000 K379.180 ULD
145-7218symmetric, wide beam [W]LED-1/4W / 350 mA – 4000 K410.180 ULD
145-7219symmetric, medium beam [M]LED-1/4W / 350 mA – 2700 K398.480
145-7220symmetric, medium beam [M]LED-1/4W / 350 mA – 3000 K398.480 ULD
145-7221symmetric, medium beam [M]LED-1/4W / 350 mA – 4000 K43180 ULD
145-7249symmetric, narrow beam [N]LED-1/4W / 350 mA – 2700 K415.280 ULD
145-7250symmetric, narrow beam [N]LED-1/4W / 350 mA – 3000 K415.280 ULD
145-7251symmetric, narrow beam [N]LED-1/4W / 350 mA – 4000 K449.180 ULD
145-7222symmetric, very narrow beam [VN]LED-1/4W / 350 mA – 2700 K415.580 ULD
145-7223symmetric, very narrow beam [VN]LED-1/4W / 350 mA – 3000 K415.580 ULD
145-7224symmetric, very narrow beam [VN]LED-1/4W / 350 mA – 4000 K449.580 ULD
145-7225symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-1/4W / 350 mA – 2700 K382.280 ULD
145-7226symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-1/4W / 350 mA – 3000 K382.280 ULD
145-7227symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-1/4W / 350 mA – 4000 K411.680 ULD
145-7222linear spread, very narrow beam [VN]LED-1/4W / 350 mA – 2700 K384.780 ULD
145-7223linear spread, very narrow beam [VN]LED-1/4W / 350 mA – 3000 K406.180 ULD
145-7224linear spread, very narrow beam [VN]LED-1/4W / 350 mA – 4000 K439.280 ULD
145-7225linear spread, very narrow beam, 'sharp cut-off'LED-1/4W / 350 mA – 2700 K343.580 ULD
145-7226linear spread, very narrow beam, 'sharp cut-off'LED-1/4W / 350 mA – 3000 K343.580 ULD
145-7227linear spread, very narrow beam, 'sharp cut-off'LED-1/4W / 350 mA – 4000 K369.980 ULD
145-7219wallwashLED-1/4W / 350 mA – 2700 K331.780 ULD
145-7220wallwashLED-1/4W / 350 mA – 3000 K331.780 ULD
145-7221wallwashLED-1/4W / 350 mA – 4000 K358.880 ULD
Showing 1 to 24 of 24 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
310-92002 Mains outlets (L=45.28)
310-92023 Mains outlets (L=45.28)
310-92103 Mains outlets (L=64.69)
310-92124 Mains outlets (L=64.69)
310-92204 Mains outlets (L=84.65)
310-92226 Mains outlets (L=84.65)
