FLC300 Série

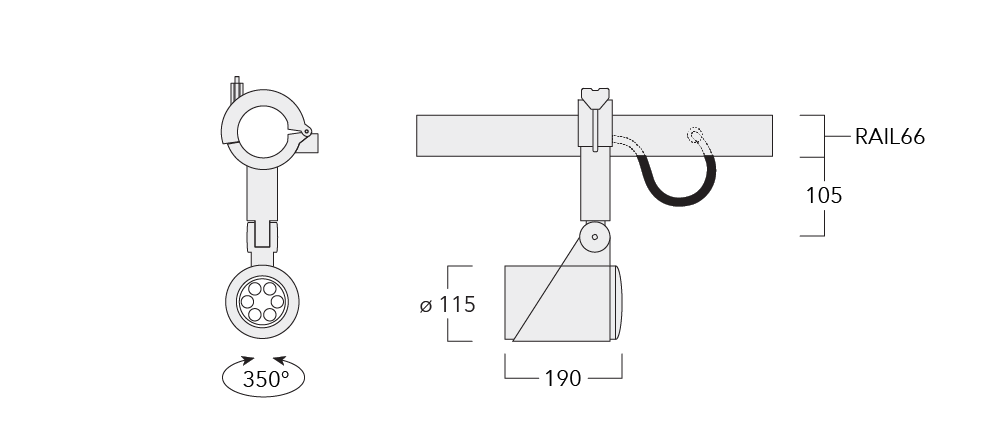

FLC321 RAIL66

Static White

Choisissez une variante :

RAIL66

Space Frame

Choisissez une famille :

⌀58 mm | FLC301 RAIL66 ⌀85 mm | FLC311 RAIL66 ⌀115 mm | FLC321 RAIL66

Fiche technique de la famille Instructions d'installation Autres téléchargements

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Mains voltage versions, DALI interface Class I. 1-10 V analogue dimming available on request; refer to accessory listings. 24VDC low voltage versions, 0-10 V analogue dimming (only 12-18W available) Class III available on request. Including 0.4 m of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system. Optical accessories are factory-installed. To be specified at time of ordering.

Couleurs

RAL9004 Signal black

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

Description du matériel

Corps	Marine-grade, die-cast aluminium alloy
Visserie	PCS hardware
Joint	Silicone CCG® Controlled Compression Gasket
IK	IK08
IP	IP66
Protection contre la corrosion	5CE
Montage	Including 0.4 m of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system

Description électrique

Driver	Integral EC electronic converter
Câble	Including 0.4 m of flexible cable

Informations complémentaires

Lifetime

Ta=25° L90B10 > 90000h

Distribution photométrique

Données en sortie de luminaire

Température de couleur

Code produit	Distribution photométrique	Source lumineuse	Données en sortie de luminaire	IRC	Caractéristiques
					Texte	PDF
145-7924	symmetric, wide beam [B]	LED-6/12W / 700 mA - 2700 K	887.8	80
145-7926	symmetric, wide beam [B]	LED-6/12W / 700 mA - 3000 K	953.5	80
145-7928	symmetric, wide beam [B]	LED-6/12W / 700 mA - 4000 K	1019.3	80
145-7930	symmetric, medium beam [M]	LED-6/12W / 700 mA - 2700 K	1162.6	80
145-7932	symmetric, medium beam [M]	LED-6/12W / 700 mA - 3000 K	1248.7	80
145-7934	symmetric, medium beam [M]	LED-6/12W / 700 mA - 4000 K	1334.9	80
145-7936	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 2700 K	1224.7	80
145-7938	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 3000 K	1315.4	80
145-7940	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 4000 K	1406.2	80
145-7942	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 2700 K	1259.7	80
145-7944	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 3000 K	1353	80
145-7946	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 4000 K	1446.3	80
145-7925	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 2700 K	1233	80
145-7927	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 3000 K	1331.7	80
145-7929	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 4000 K	1413.9	80
145-7931	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 2700 K	1614.8	80
145-7933	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 3000 K	1743.9	80
145-7935	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 4000 K	1851.6	80
145-7937	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 2700 K	1701	80
145-7939	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 3000 K	1837.1	80
145-7941	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 4000 K	1950.5	80
145-7943	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 2700 K	1749.6	80
145-7945	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 3000 K	1889.5	80
145-7947	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 4000 K	2006.2	80
145-7356	symmetric, wide beam [B]	LED-6/26W / 1400 mA - 2700K	1665.8	80
145-7357	symmetric, wide beam [B]	LED-6/26W / 1400 mA - 3000K	1761.9	80
145-7358	symmetric, wide beam [B]	LED-6/26W / 1400 mA - 4000K	1842	80
145-7359	symmetric, medium beam [M]	LED-6/26W / 1400 mA - 2700K	2179.3	80
145-7360	symmetric, medium beam [M]	LED-6/26W / 1400 mA - 3000K	2305	80
145-7361	symmetric, medium beam [M]	LED-6/26W / 1400 mA - 4000K	2409.8	80
145-7362	symmetric, very narrow beam [EE]	LED-6/26W / 1400 mA - 2700K	2258.5	80
145-7363	symmetric, very narrow beam [EE]	LED-6/26W / 1400 mA - 3000K	2388.8	80
145-7364	symmetric, very narrow beam [EE]	LED-6/26W / 1400 mA - 4000K	2497.4	80
145-7365	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/26W / 1400 mA - 2700K	2319.7	80
145-7366	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/26W / 1400 mA - 3000K	2453.5	80
145-7367	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/26W / 1400 mA - 4000K	2565	80
145-7935	wallwash	LED-6/18W / 1050 mA - 4000 K	1579.4	80
145-7936	linear spread, very narrow beam [EE]	LED-6/12W / 700 mA - 2700 K	1096	80
145-7938	linear spread, very narrow beam [EE]	LED-6/12W / 700 mA - 3000 K	1177.2	80
145-7940	linear spread, very narrow beam [EE]	LED-6/12W / 700 mA - 4000 K	1258.4	80
145-7937	linear spread, very narrow beam [EE]	LED-6/18W / 1050 mA - 2700 K	1522.2	80
145-7939	linear spread, very narrow beam [EE]	LED-6/18W / 1050 mA - 3000 K	1644	80
145-7941	linear spread, very narrow beam [EE]	LED-6/18W / 1050 mA - 4000 K	1745.5	80
145-7362	linear spread, very narrow beam [EE]	LED-6/26W / 1400 mA - 2700K	2027.2	80
145-7363	linear spread, very narrow beam [EE]	LED-6/26W / 1400 mA - 3000K	2144.1	80
145-7364	linear spread, very narrow beam [EE]	LED-6/26W / 1400 mA - 4000K	2241.6	80
145-7942	linear spread, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 2700 K	1125.5	80
145-7944	linear spread, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 3000 K	1208.8	80
145-7946	linear spread, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 4000 K	1292.2	80
145-7943	linear spread, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 2700 K	1563.1	80

Affichage de 1 à 50 sur 63 résultats

Accessories

Mounting Accessories

Control

Optical Accessories

Code produit	Titre	Caractéristiques
		Texte	PDF
310-9290	Surface fitters (pair)
