RFS530 LED

RFS530 LED

Family Spec Sheet

Catenary-mounted luminaire. IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Non-reflecting safety glass lens hinged. Cable inclination angle: Maximum 10°. Supplied with 3 ft of cable. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Built-in surface junction box. Luminaire is factory-sealed and does not need to be opened during installation. Rotatable 25°, tiltable 10° on the cable. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1) For DarkSky compliant configurations of this product, please find the spec sheet and DarkSky certificate in the library.

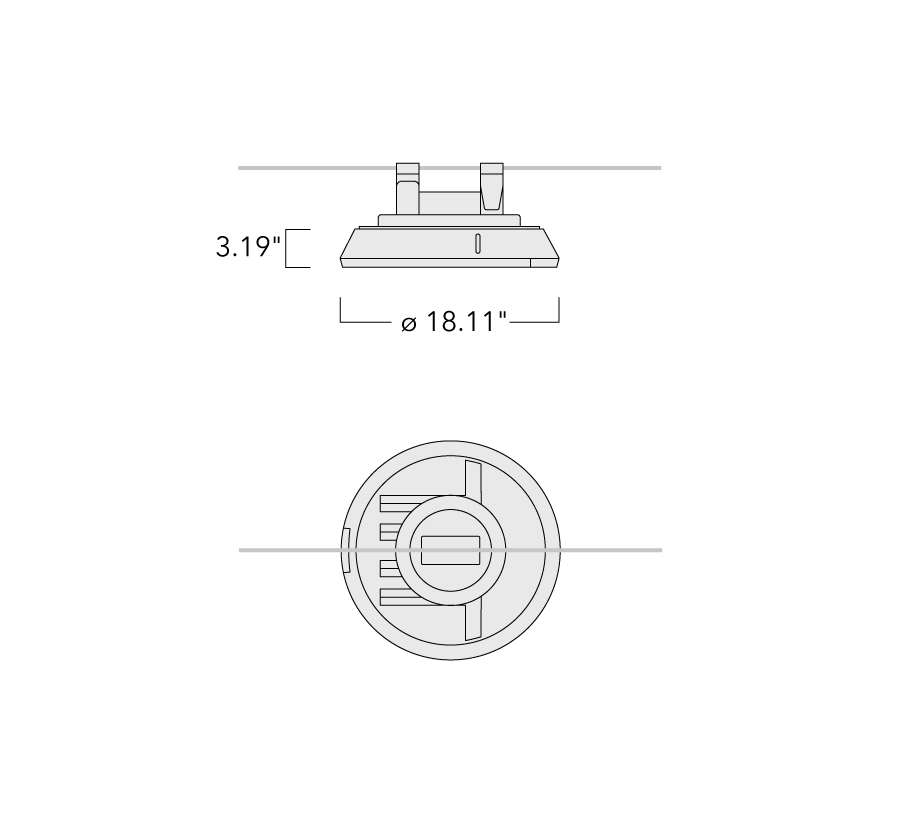

RFS530 LED Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel hardware
GasketSilicone rubber gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 and Dark Bronze RAL8019
Corrosion Protection5CE
MountingMaximum spacing for streetlighting applications depends on wattage and light distribution: 5.5 to 9 times the mounting height
Electrical
Ballast / DriverIntegral EC electronic converter
Cable
Power Factor< 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge ProtectionIn-line bracket 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
111-0697[S60] Type III ShortLED-24/24W/24W / 700 mA - 4000 K6498.380
111-0706[S60] Type III ShortLED-12/6W/6W / 350 mA - 3000 K1705.880
111-0707[S60] Type III ShortLED-12/6W6W / 350 mA - 4000 K1870.880
111-0708[S60] Type III ShortLED-24/12W/12W / 350 mA - 3000 K3411.580
111-0709[S60] Type III ShortLED-24/12W/12W / 350 mA - 4000 K3741.780
111-0710[S65] Type III MediumLED-12/6W/6W / 350 mA - 3000 K1690.280
111-0711[S65] Type III MediumLED-12/6W6W / 350 mA - 4000 K1853.880
111-0712[S65] Type III MediumLED-24/12W/12W / 350 mA - 3000 K3380.480
111-0713[S65] Type III MediumLED-24/12W/12W / 350 mA - 4000 K3707.580
111-0714[S70] Type II ShortLED-12/6W/6W / 350 mA - 3000 K1616.280
111-0715[S70] Type II ShortLED-12/6W6W / 350 mA - 4000 K1772.680
111-0716[S70] Type II ShortLED-24/12W/12W / 350 mA - 3000 K3232.480
111-0717[S70] Type II ShortLED-24/12W/12W / 350 mA - 4000 K3545.280
111-0718[S60] Type III ShortLED-12/12W/12W / 700 mA - 3000 K3039.580
111-0719[S60] Type III ShortLED-12/12W/12W / 700 mA - 4000 K3249.280
111-0720[S60] Type III ShortLED-24/24W/24W / 700 mA - 3000 K6079.180
111-0721[S65] Type III MediumLED-12/12W/12W / 700 mA - 3000 K3011.880
111-0722[S65] Type III MediumLED-12/12W/12W / 700 mA - 4000 K3219.580
111-0723[S65] Type III MediumLED-24/24W/24W / 700 mA - 3000 K6023.680
111-0724[S65] Type III MediumLED-24/24W/24W / 700 mA - 4000 K643980
111-0725[S70] Type II ShortLED-12/12W/12W / 700 mA - 3000 K2879.980
111-0726[S70] Type II ShortLED-12/12W/12W / 700 mA - 4000 K3078.580
111-0727[S70] Type II ShortLED-24/24W/24W / 700 mA - 3000 K5759.880
111-0728[S70] Type II ShortLED-24/24W/24W / 700 mA - 4000 K615780
111-1088[S60] Type III ShortLED-12/6W/6W / 350 mA - 2700 K1595.780
