RFS540 LED

RFS540 LED

Family Spec Sheet

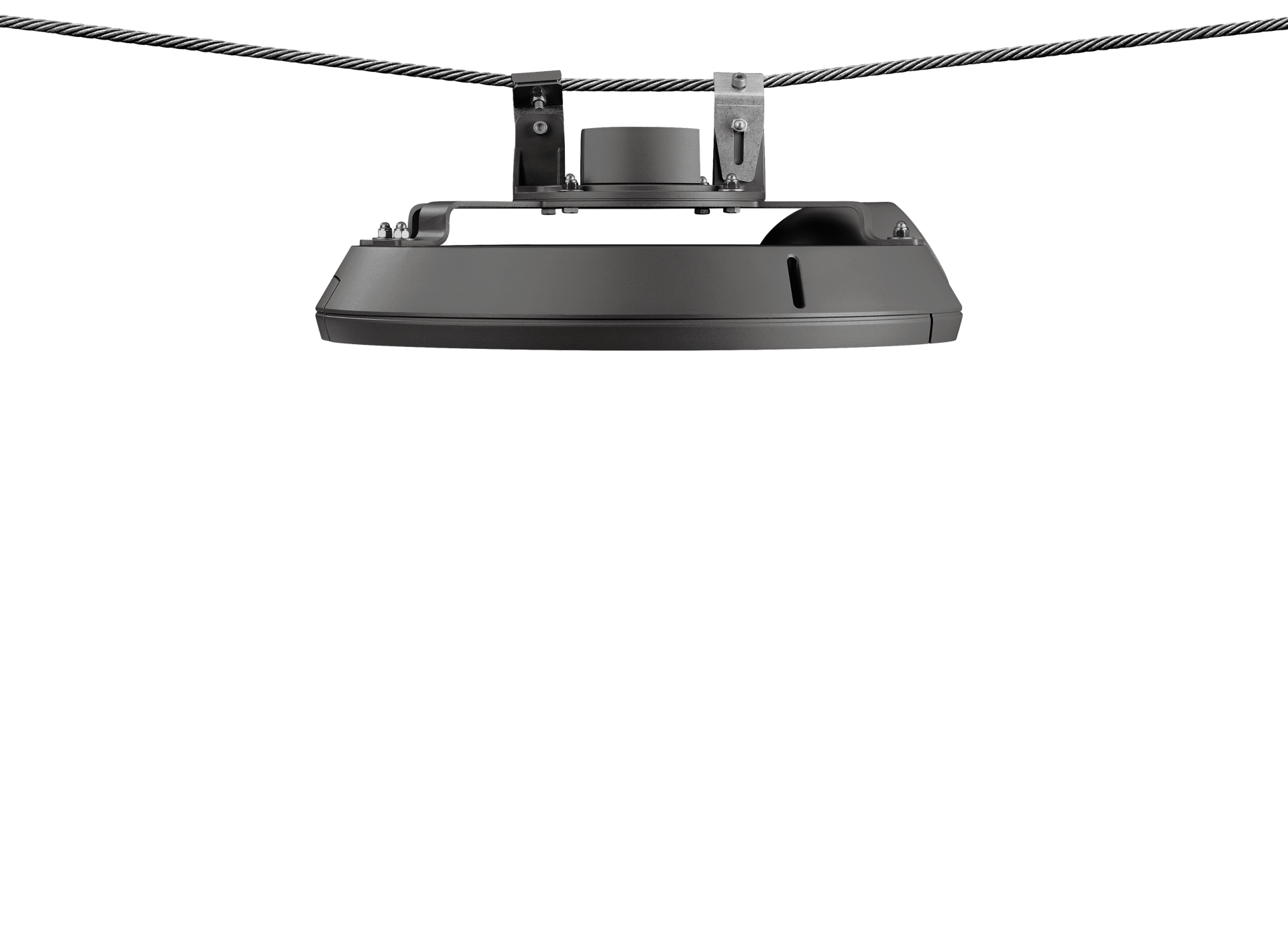

Catenary-mounted luminaire. IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Non-reflecting safety glass lens hinged. Cable inclination angle: Maximum 10°. Supplied with 3 ft of cable. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Luminaire is factory-sealed and does not need to be opened during installation. Rotatable 25°, tiltable 10° on the cable. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

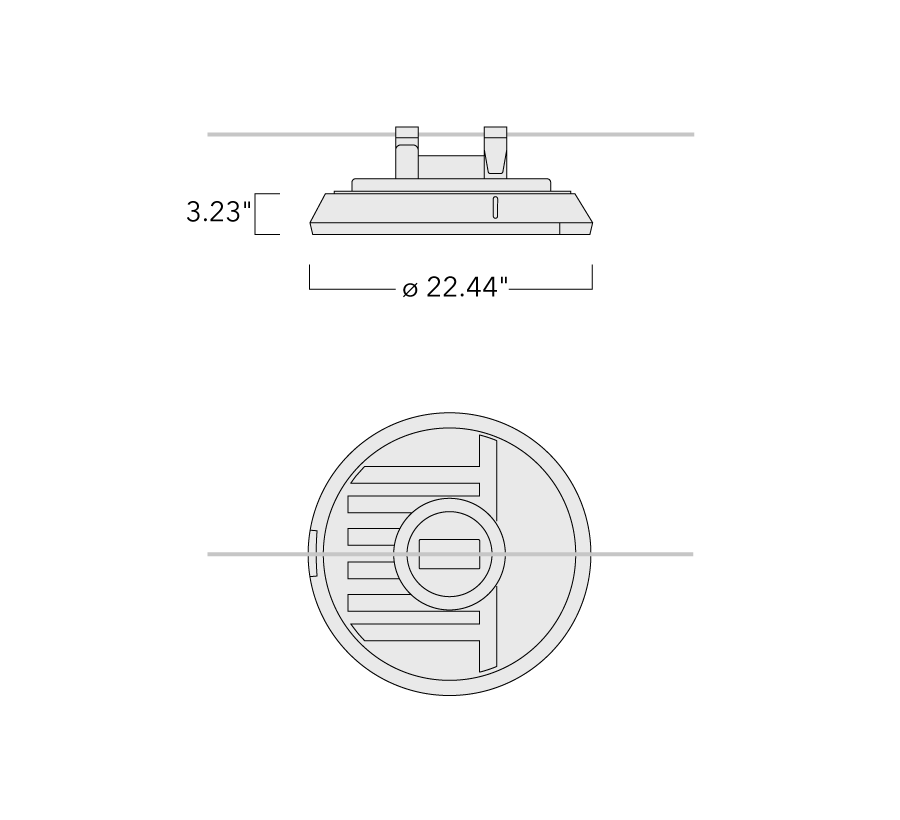

RFS540 LED Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel hardware
GasketSilicone rubber gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 and Dark Bronze RAL8019
Corrosion Protection5CE
MountingMaximum spacing for street lighting applications depends on wattage and light distribution: 5.5 to 9 times the mounting height.
Electrical
Ballast / DriverIntegral EC electronic converter
Cable
Power Factor> 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge ProtectionIn-line bracket 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
111-0402[S70] Type II ShortLED-36/36W/36W / 700 mA - 4000 K9235.580
111-0403[S60] Type III ShortLED-48/48W/48W / 700 mA - 4000 K12996.780
111-0440[S60] Type III ShortLED-36/18W/18W / 350 mA - 4000 K5612.580
111-0441[S60] Type III ShortLED-48/24W/24W / 350 mA - 4000 K7483.380
111-0442[S65] Type III MediumLED-36/18W/18W / 350 mA - 4000 K5561.380
111-0443[S65] Type III MediumLED-48/24W/24W / 350 mA - 4000 K741580
111-0444[S70] Type II ShortLED-36/18W/18W / 350 mA - 4000 K5317.880
111-0515[S60] Type III ShortLED-36/18W/18W / 350 mA - 3000 K5117.380
111-0517[S60] Type III ShortLED-48/24W/24W / 350 mA - 3000 K6823.180
111-0519[S65] Type III MediumLED-36/18W/18W / 350 mA - 3000 K5070.680
111-0523[S70] Type II ShortLED-36/18W/18W / 350 mA - 3000 K4848.680
111-0525[S70] Type II ShortLED-48/24W/24W / 350 mA - 3000 K6464.780
111-0576[S70] Type II ShortLED-48/48W48W / 700 mA - 3000 K11519.680
111-0593[S70] Type II ShortLED-48/48W/48W / 700 mA - 4000 K1231480
111-0623[S60] Type III ShortLED-36/36W/36W / 700 mA - 4000 K9747.580
111-0629[S70] Type II ShortLED-48/24W/24W / 350 mA - 4000 K7090.480
111-0641[S65] Type III MediumLED-48/24W/24W / 350 mA - 3000 K6760.880
111-0692[S60] Type III ShortLED-36/36W/36W / 700 mA - 3000 K9118.680
111-0695[S60] Type III ShortLED-48/48W48W / 700 mA - 3000 K12158.280
111-0701[S65] Type III MediumLED-36/36W/36W / 700 mA - 3000 K9035.380
111-0702[S65] Type III MediumLED-36/36W/36W / 700 mA - 4000 K9658.580
111-0703[S65] Type III MediumLED-48/48W48W / 700 mA - 3000 K12047.180
111-0704[S65] Type III MediumLED-48/48W/48W / 700 mA - 4000 K1287880
111-0705[S70] Type II ShortLED-36/36W/36W / 700 mA - 3000 K8639.780
111-1100[S60] Type III ShortLED-36/18W/18W / 350 mA - 2700 K891480
Showing 1 to 25 of 36 Entries
