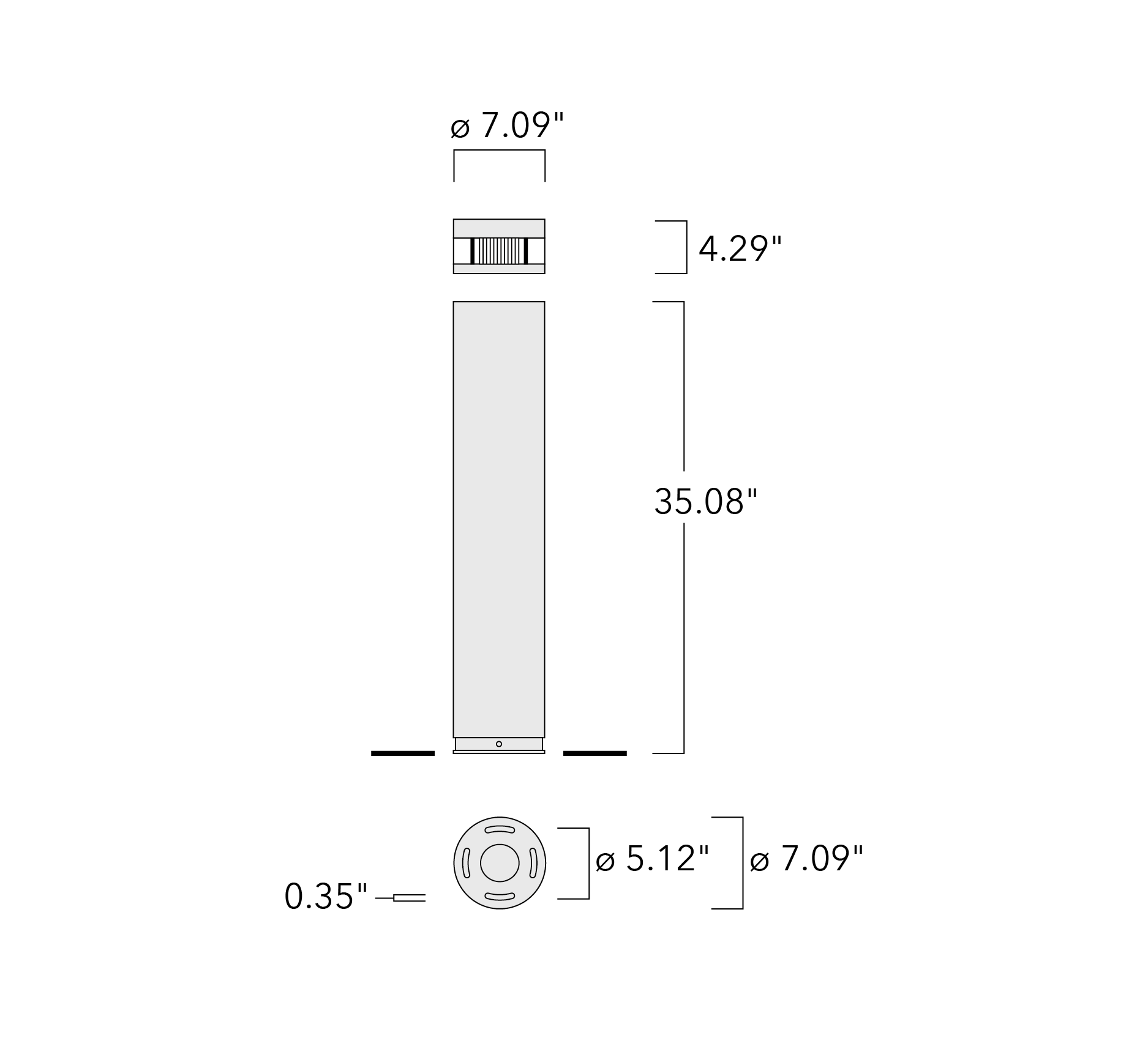

ZFY230 LED-FT II
(1000 mm)
IP66. Class I. IK10. Marine-grade, all aluminum construction. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate main lens. CAD-optimized indirect optics for superior illumination and glare control. Integral driver in thermally separated compartment. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire.
Pre-wired post complete with cable connecting box and fuse for mains connection.
Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately.
Example: XXX-XXXX-9004 (Black)
+ XXX-XXXX (Accessory 1)
Eigenschaften
Material
| Gehäuse | Marine-grade, all-aluminium construction |
| Schrauben | PCS Polymer Coated Stainless Steel Hardware |
| Farben | Pending |
| Dichtung | Silicone CCG® Controlled Compression Gasket |
| Schlagfestigkeit | IK10 |
| Schutzart | IP66 |
| Abdeckung | Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019. |
| Korrosionsschutz | 5CE |
| Befestigung | Anchor Bolts Included, Installation Template Provided With Order |
Elektrik
| LED Treiber | Integral EC electronic converter |
| Kabel | |
| Leistungsfaktor | |
| Netz | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
| Überspannungsschutz | Integral 10kV Surge Protector |
Weitere Eigenschaften
| Lifetime | Ta=25°/40° L70B50 > 50000h |
| BUG Rating | Please see individual Spec Sheets for classification of Backlight, Uplight and Glare. |
- - - -
Lichtverteilung
Lichtstrom (lm)
Leistung (W)
Farbtemperatur (K)
CRI
Showing 1 to 6 of 6 Entries
