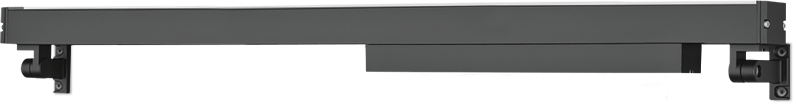

VLR130

VLR130

Family Spec Sheet

IP67, Class I. IK09. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Silicone rubber gasket. PMMA main lens. Linear PMMA LED lens. 1.2 m connecting cable, UV stabilized, PVC free. Luminaire is factory sealed and does not need to be opened during installation and can be tilted up to 180°. Integral LED driver with DALI interface. Separate LED driver on request.

VLR130 Schematics
Colors
Material

Body: Marine-grade, all-aluminium construction

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone rubber gasket

Impact Protection: IK09

Ingress Protection: IP67

Finish: Powdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016

Corrosion Protection: 5CE

Mounting:

Electrical

Ballast / Driver: Integral LED driver with DALI Interface

Cable: 1.2 m of flexible PVC free cable

Power Factor:

Power Supply: 220-240V / 50-60 Hz

Surge Protection:

Additional Information

Lifetime: Ta=25° L90B10 > 90000h

Energy efficiency class: D (Light source)

:

Light Distribution

Wattage

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
187-0003symmetric linear, medium beam [LM]LED-48/30W / 225 mA - 3000 K3210.680
187-0007symmetric linear, narrow beam [LE]LED-48/30W / 225 mA - 3000 K3151.980
187-0011symmetric linear, very narrow beam [LEE]LED-48/30W / 225 mA - 3000 K3608.980
187-0025symmetric linear, wide beam [LB]LED-48/30W / 225 mA - 3000 K2873.680
187-0039symmetric linear, medium beam [LM]LED-48/30W / 225 mA - 4000 K3210.680
187-0040symmetric linear, narrow beam [LE]LED-48/30W / 225 mA - 4000 K3151.980
187-0041symmetric linear, very narrow beam [LEE]LED-48/30W / 225 mA - 4000 K3608.980
187-0042symmetric linear, wide beam [LB]LED-48/30W / 225 mA - 4000 K2873.680
187-0537symmetric linear, wide beam [LB]LED-48/30W / 225 mA - 2700 K2873.680
187-0538symmetric linear, medium beam [LM]LED-48/30W / 225 mA - 2700 K3210.680
187-0539symmetric linear, narrow beam [LE]LED-48/30W / 225 mA - 2700 K3151.980
187-0540symmetric linear, very narrow beam [LEE]LED-48/30W / 225 mA - 2700 K3608.980
187-0586symmetric linear, wide beam [LB/IW]LED-48/30W / 225 mA - 2700 K1277.380
187-0496symmetric linear, wide beam [LB/IW]LED-48/30W / 225 mA - 3000 K1277.380
187-0497symmetric linear, wide beam [LB/IW]LED-48/30W / 225 mA - 4000 K1277.380
187-0499symmetric linear, medium beam [LM/IW]LED-48/30W / 225 mA - 4000 K1603.280
187-0587symmetric linear, medium beam [LM/IW]LED-48/30W / 225 mA - 2700 K1603.280
187-0498symmetric linear, medium beam [LM/IW]LED-48/30W / 225 mA - 3000 K1603.280
187-0500symmetric linear, narrow beam [LE/IW]LED-48/30W / 225 mA - 3000 K1670.580
187-0588symmetric linear, narrow beam [LE/IW]LED-48/30W / 225 mA - 2700 K1670.580
187-0501symmetric linear, narrow beam [LE/IW]LED-48/30W / 225 mA - 4000 K1670.580
Showing 1 to 21 of 21 Entries

Accessories

Part-IDTitlePDFOpen Data
Please select an accessory category
