FLC220-TW LED [GP]

Back
Standard Colours
Tunable White
Colour Changer
Family Spec Sheet
Adjustable rectangular light area Adjustable rectangular light area Frame Frame
Adjustable round spot area Adjustable round spot area Zoom Zoom
Freeform shape projection Freeform shape projection Gobo Gobo
10W18W44W

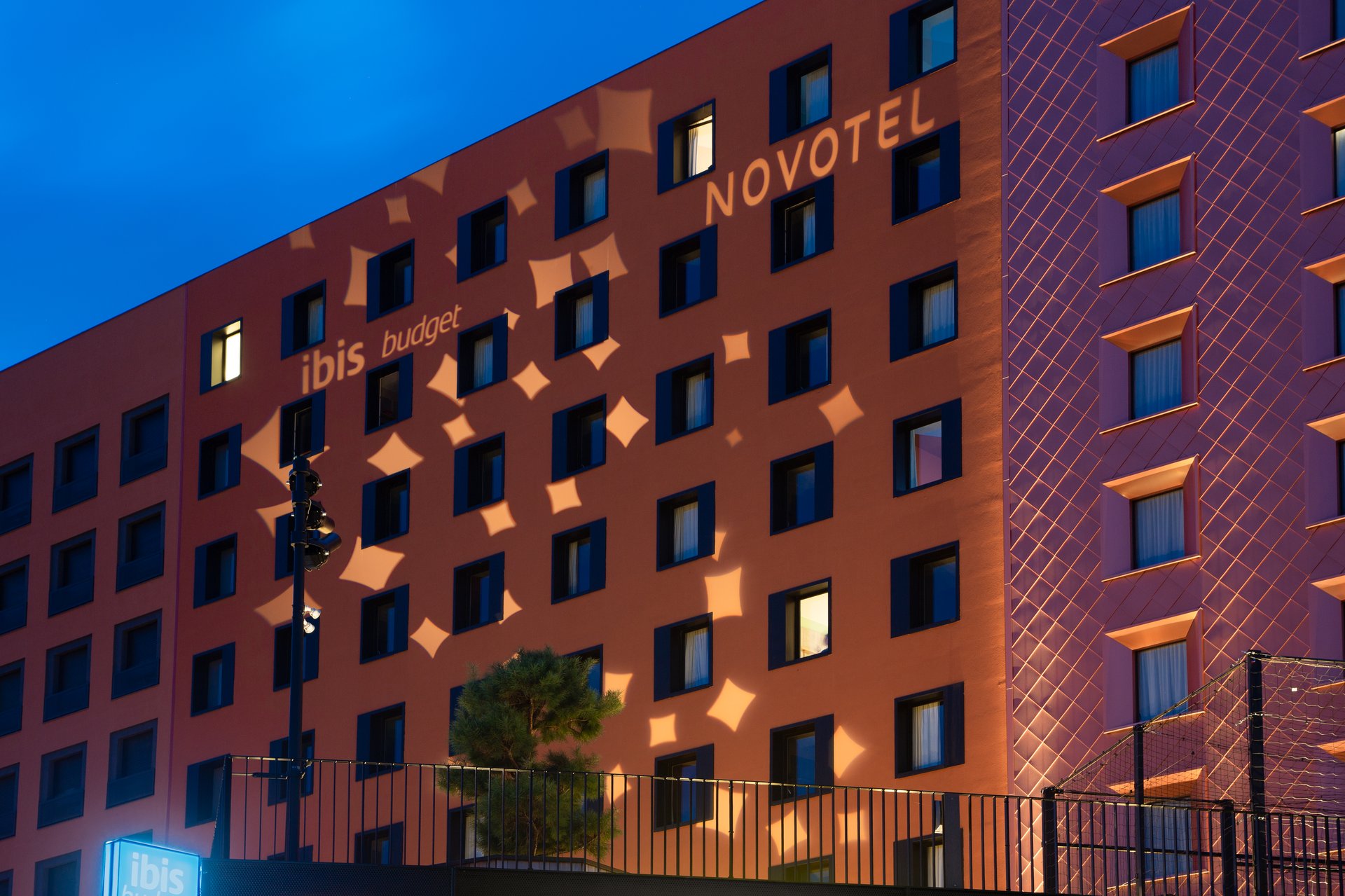

Profile Projector [GP] for projection of gobos on a surface. Spherical and aspherical, double flat convex lens system. Gobo motif on request, to be ordered separately. Tunable White Technology.
IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable gland. Second gland for through wiring on request. PMMA LED lens array. Factory installed LED circuit board. LED board can be removed for upgrading. Integral EC electronic converter, thermally separated. DALI interface. Gobo outside diameter 66 mm, max. printable area d = 48 mm. WE-EF recommendation = d 38 mm.

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS Polymer Coated Stainless Steel Hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK07
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
Befestigung

Elektrik

LED TreiberDALI
KabelOne cable gland. Second gland for through wiring on request
Leistungsfaktor> 0.9
Netz220-240V / 50-60 Hz
Überspannungsschutz1/2 kV (optional SP10)

Weitere Eigenschaften

LifetimeTa=25° L70B50 > 50000h

Lichtverteilung

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
139-2331_minsymmetric Gobo-Projector [GP] - min aperture angleLED-FT-18W / 2200 - 6000 K268.980EC8.20
139-2331_maxsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-18W / 2200 - 6000 K457.180EC8.20
Showing 1 to 2 of 2 Entries
