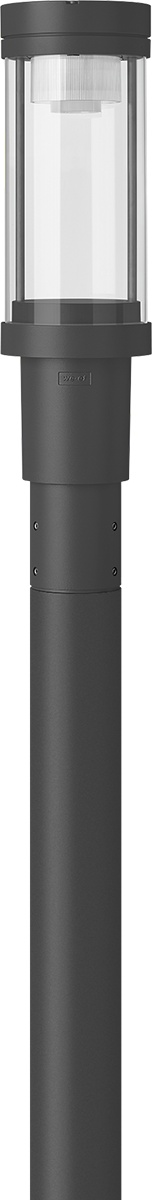

ZFT430-FT LED

ZFT430-FT LED

IP66, Class I. Class II on request. IK09. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. PMMA main lens. Integral EC electronic converter in thermally separated compartment. CAD-optimised indirect optics for superior illumination and glare control. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation.

ZFT430-FT LED Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK09
Ingress ProtectionIP66
FinishPowdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016
Corrosion Protection5CE
MountingRecommended mounting height 3.0 - 6.0 m
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Power Factor> 0.9
Power Supply220-240V / 50-60 Hz
Surge Protection6/6 kV (optional SP10)
Additional Information
LifetimeTa=25° L70B50 > 50000h
Energy efficiency classC-D (Light source)

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
115-1241symmetric distribution [C60]LED-FT-24W / 700 mA - 3000 K2609.880
115-1242symmetric distribution [C60]LED-FT-24W / 700 mA - 4000 K2721.180
115-1283symmetric distribution [C60]LED-FT-37W / 700 mA - 3000 K3914.780
115-1284symmetric distribution [C60]LED-FT-37W / 700 mA - 4000 K4140.480
115-1343symmetric distribution [C60]LED-FT-12W / 350 mA - 3000 K1267.880
115-1344symmetric distribution [C60]LED-FT-12W / 350 mA - 4000 K1335.880
115-1531controlled symmetric distribution [C50]LED-FT-12W / 350 mA - 3000 K169880
115-1532controlled symmetric distribution [C50]LED-FT-12W / 350 mA - 4000 K1789.180
115-1535controlled symmetric distribution [C50]LED-FT-24W / 700 mA - 3000 K3495.580
115-1536controlled symmetric distribution [C50]LED-FT-24W / 700 mA - 4000 K3644.680
115-1537controlled symmetric distribution [C50]LED-FT-37W / 700 mA - 3000 K5243.280
115-1538controlled symmetric distribution [C50]LED-FT-37W / 700 mA - 4000 K5545.580
115-1582controlled symmetric distribution [C50]LED-FT-12W / 350 mA - 2700 K1590.480
115-1583controlled symmetric distribution [C50]LED-FT-24W / 700 mA - 2700 K3354.780
115-1584controlled symmetric distribution [C50]LED-FT-37W / 700 mA - 2700 K509080
115-1585symmetric distribution [C60]LED-FT-12W / 350 mA - 2700 K1187.480
115-1586symmetric distribution [C60]LED-FT-24W / 700 mA - 2700 K2504.780
115-1620symmetric distribution [C60]LED-FT-37W / 700 mA - 2700 K3800.380
115-1854rectangular [R50]LED-FT-12W / 350 mA - 2700 K1478.280
115-1853rectangular [R50]LED-FT-12W / 350 mA - 4000 K1662.980
115-1841rectangular [R50]LED-FT-12W / 350 mA - 3000 K1578.280
115-1857rectangular [R50]LED-FT-24W / 700 mA - 2700 K311880
115-1855rectangular [R50]LED-FT-24W / 700 mA - 3000 K3248.980
115-1856rectangular [R50]LED-FT-24W / 700 mA - 4000 K3387.480
115-1860rectangular [R50]LED-FT-37W / 700 mA - 2700 K4730.980
Showing 1 to 25 of 30 Entries

Accessories

Part-IDTitlePDFOpen Data
430-0001Eco Step Dim® Basic LED
