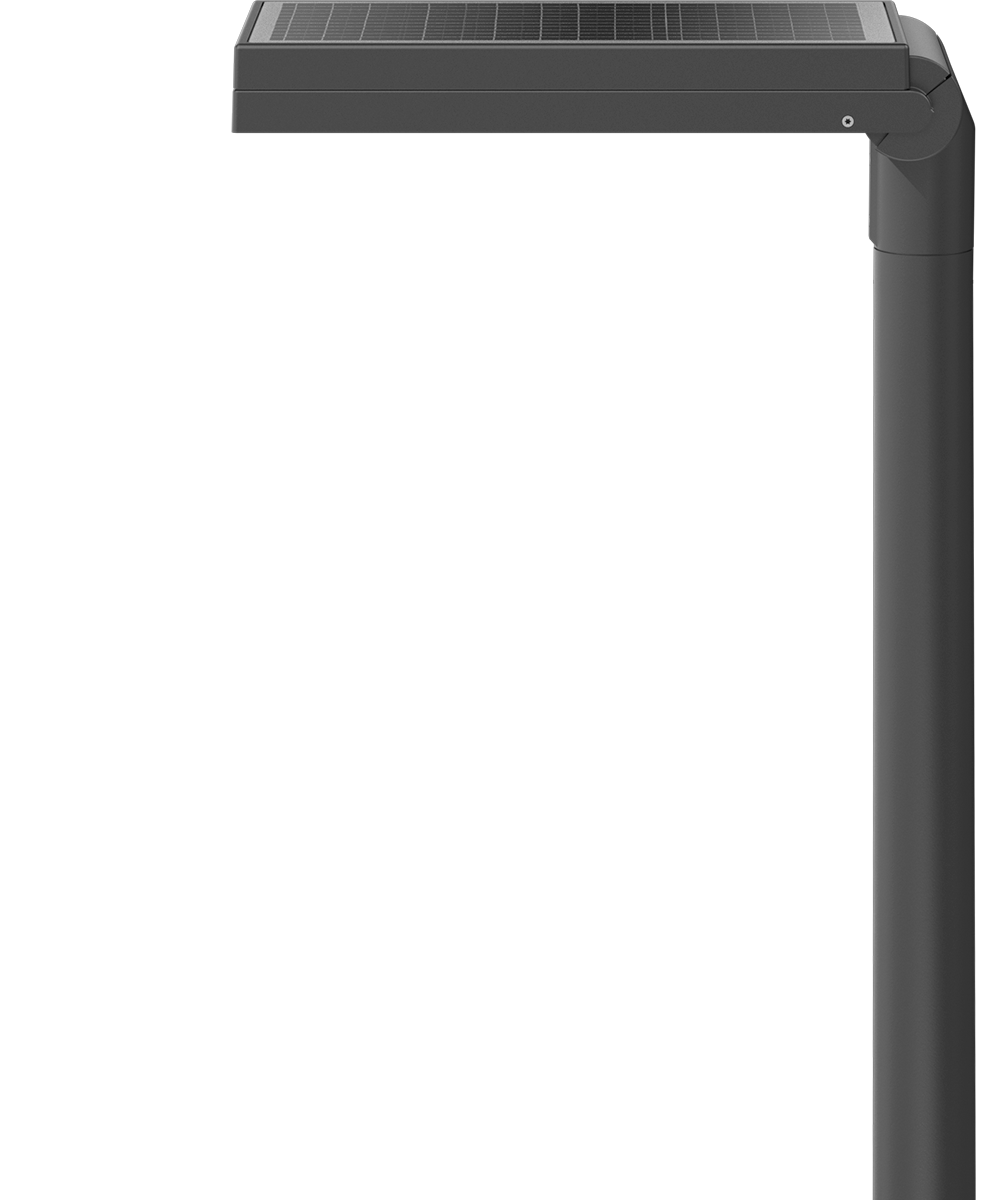

Solar (ISP - integrated solar panel fully independent). IP66, Class III. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. CCG® Controlled Compression Gasket. Non-reflective flat safety glass cover, hinged. Combined LED driver, battery charger and light control unit. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Flush installation of the solar module with the housing for a clean finish. Alignment of the solar panel only in combination with the luminaire. Can be used as post top or side entry version. Specification at time of order is recommended. Spigot Ø 76 x 100 mm. Spigot Ø 60 x 100 mm or 42 x 100 mm option available. Must be indicated during order placement. Contact WE-EF direct or your local WE-EF sales representative for an individual solution designed to precisely meet your needs. Photometric files (IES, LDT) for light distributions [S70] [R60] [A61] [P66] with Backlight Shield on request.

AFL130-ISP Schematics
Colors
Material

Body: Marine-grade, die-cast aluminium alloy

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: CCG® Controlled Compression Gasket

Impact Protection: IK08

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting: Spigot rotatable for either post top or side entry version. Must be indicated during order placement.

Electrical

Ballast / Driver: Integral EC electronic converter. DALI

Cable:

Power Factor: > 0.9

Power Supply: 220-240V / 50-60 Hz

Surge Protection: 6/6kV, optional 10kV

Additional Information

Lifetime: Ta=25° L90B10 > 90000h

Energy efficiency class: C-D (Light source)

:

Light Distribution

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
102-0806asymmetric, side throw [S70]LED-24/11W / 160 mA - 2700K1659.780
102-0807rectangular, side throw [R60]LED-24/11W / 160 mA - 2700K1529.280
102-0808asymmetric, forward throw [A61]LED-24/11W / 160 mA - 2700K1533.780
102-0809pedestrian/bicycle lane [P66]LED-24/11W / 160 mA - 2700K1550.680
102-0810asymmetric, side throw [S70]LED-24/7,5W / 160 mA - Amber417.380
102-0811rectangular, side throw [R60]LED-24/7,5W / 160 mA - Amber384.580
102-0812asymmetric, forward throw [A61]LED-24/7,5W / 160 mA - Amber385.680
102-0813pedestrian/bicycle lane [P66]LED-24/7,5W / 160 mA - Amber389.980
102-0814asymmetric, side throw [S70]LED-24/11W / 160 mA - PCA1228.280
102-0815rectangular, side throw [R60]LED-24/11W / 160 mA - PCA1131.680
102-0816asymmetric, forward throw [A61]LED-24/11W / 160 mA - PCA1134.980
102-0817pedestrian/bicycle lane [P66]LED-24/11W / 160 mA - PCA1147.580
102-0998asymmetric, side throw [S70]LED-24/11W / 160 mA - 3000K1773.580
102-0999rectangular, side throw [R60]LED-24/11W / 160 mA - 3000K1634.180
102-1000asymmetric, forward throw [A61]LED-24/11W / 160 mA - 3000K1638.880
102-1001pedestrian/bicycle lane [P66]LED-24/11W / 160 mA - 3000K165780
Showing 1 to 16 of 16 Entries
