Solar (ISP - integrated solar panel, fully independent). IP66, Class III. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. CCG® Controlled Compression Gasket. Non-reflective flat safety glass cover, hinged. Integral D4i-certified electronic LED driver in Zhaga format. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed WE-EF LED circuit board (Zhaga Book 15 compliant). The luminaire is factory-sealed and does not need to be opened during installation. Flush installation of the solar module with the housing for a clean finish. Alignment of the solar panel only in combination with the luminaire Can be used as post top or side entry version. Specification at time of order is recommended. Spigot Ø 3"" x 4"" . Contact WE-EF direct or your local WE-EF sales representative for an individual solution designed to precisely meet your needs.Photometric files (IES, LDT) for light distributions [S70] A61] [P66] with Backlight Shield on request.

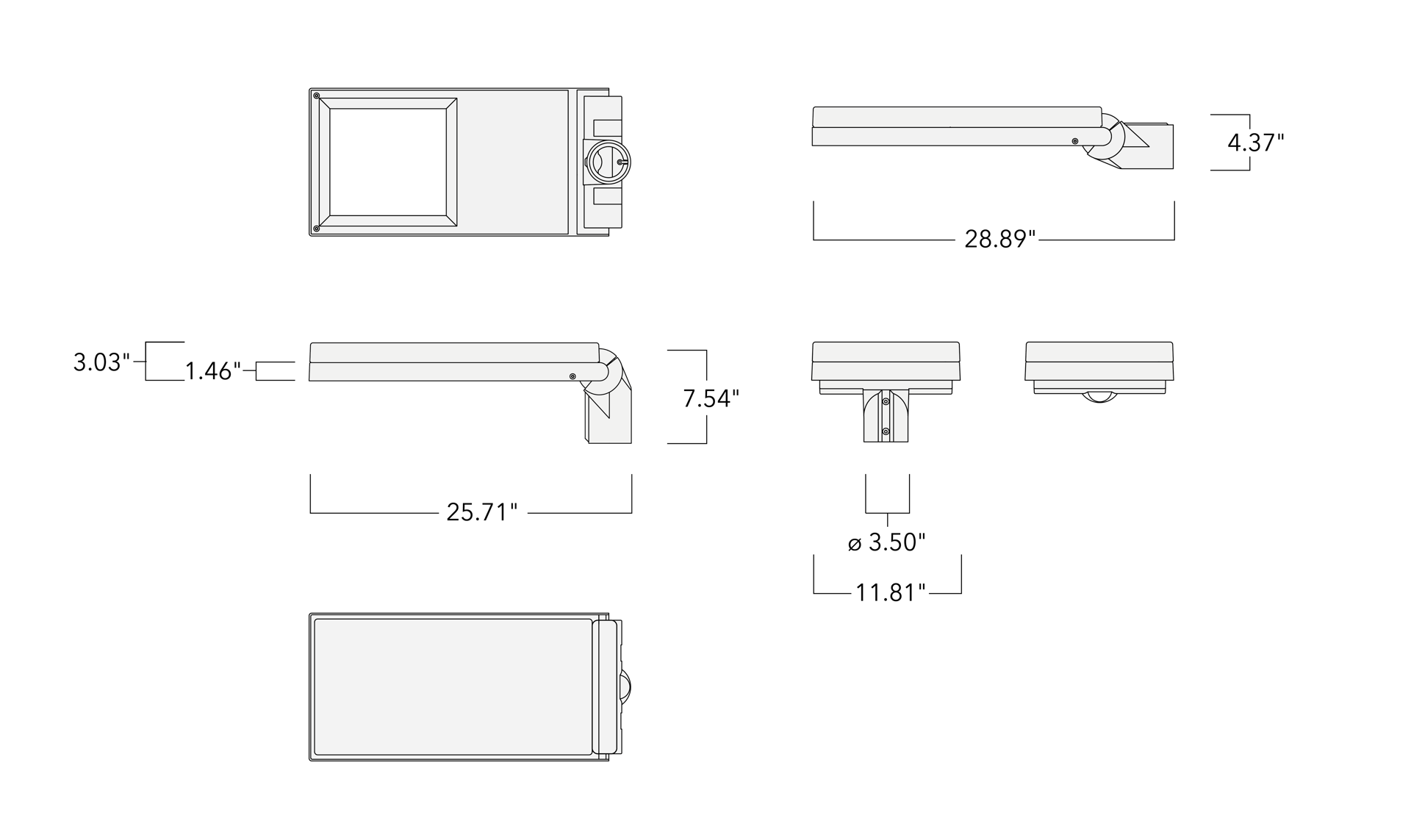

AFL130-ISP Schematics
Colors
Material

Body: Marine-grade, die-cast aluminium alloy

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: CCG® Controlled Compression Gasket

Impact Protection: IK08

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting: Spigot rotatable for either post top or side entry version. Must be indicated during order placement.

Electrical

Ballast / Driver: Integral EC electronic converter. DALI

Cable:

Power Factor: > 0.9

Power Supply: 220-240V / 50-60 Hz

Surge Protection: 6/6kV, optional 10kV

Additional Information

Lifetime: Ta=25° L90B10 > 90000h

Energy efficiency class: C-D (Light source)

:

Light Distribution

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
102-0806[S70] Type II ShortLED-24/11W / 160 mA - 2700K1659.780
102-0807rectangular, side throw [R60]LED-24/11W / 160 mA - 2700K1529.280
102-0808[A61] Type IV Very ShortLED-24/11W / 160 mA - 2700K1533.780
102-0809[P66] Type II MediumLED-24/11W / 160 mA - 2700K1550.680
102-0810[S70] Type II ShortLED-24/7,5W / 160 mA - Amber417.380
102-0811rectangular, side throw [R60]LED-24/7,5W / 160 mA - Amber384.580
102-0812[A61] Type IV Very ShortLED-24/7,5W / 160 mA - Amber385.680
102-0813[P66] Type II MediumLED-24/7,5W / 160 mA - Amber389.980
102-0814[S70] Type II ShortLED-24/11W / 160 mA - PCA1228.280
102-0815rectangular, side throw [R60]LED-24/11W / 160 mA - PCA1131.680
102-0816[A61] Type IV Very ShortLED-24/11W / 160 mA - PCA1134.980
102-0817[P66] Type II MediumLED-24/11W / 160 mA - PCA1147.580
102-0998[S70] Type II ShortLED-24/11W / 160 mA - 3000K1773.580
102-0999rectangular, side throw [R60]LED-24/11W / 160 mA - 3000K1634.180
102-1000[A61] Type IV Very ShortLED-24/11W / 160 mA - 3000K1638.880
102-1001[P66] Type II MediumLED-24/11W / 160 mA - 3000K165780
Showing 1 to 16 of 16 Entries
