AFL120-WL LED

Back
Standard Colours
Wild-Light
Family Spec Sheet
AFL120 AFL120 602 mm 602 mm 250 mm 250 mm
AFL130 AFL130 653 mm 653 mm 300 mm 300 mm

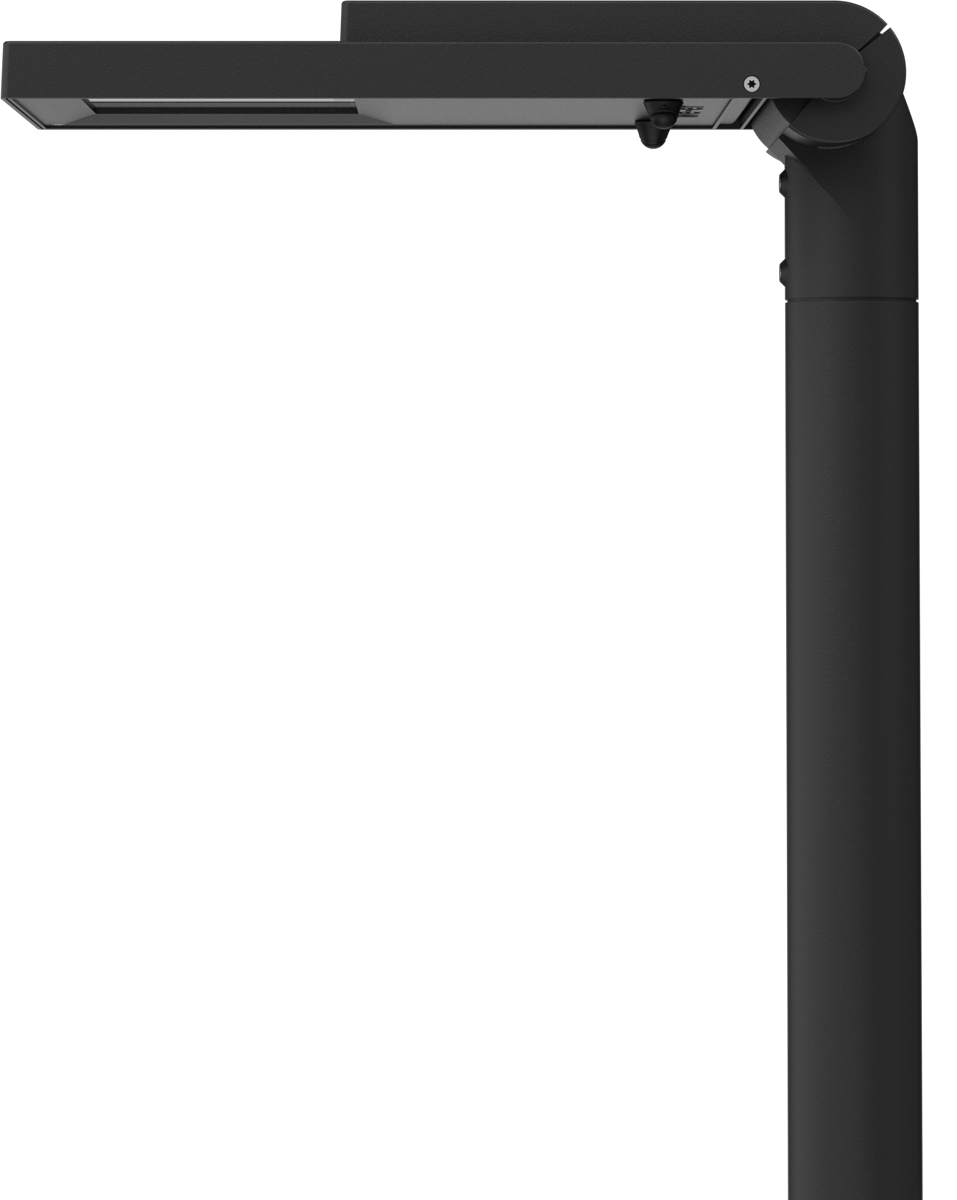

Wild-Light. IP66, Class I or Class II. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. CCG® Controlled Compression Gasket. Non-reflective flat safety glass cover, hinged. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. Wild-Light with Advanced or Motion available on request, must be specified at time of ordering. For further details and available variants see below under additional information – Wild-Light Presentation. The luminaire is factory-sealed and does not need to be opened during installation. Can be used as post top or side entry version. Specification at time of order is recommended.
Spigot Ø 76 x 100 mm. Spigot Ø 60 x 100 mm or 42 x 100 mm optional available. Must be indicated during order placement. Contact WE-EF direct or your local WE-EF sales representative for an individual solution designed to precisely meet your needs. IMPORTANT Photometric data legend (for ies-data): Part ID (channel I+II - both colour temperatures 1850K (True Amber) + 2200K / 2200K + 3000K) Part ID_1 (channel I - lower colour temperature 1850K (True Amber) / 2200K only) Part ID_2 (channel II - upper colour temperature 2200K / 3000K only) Photometric data legend (for ldt-data): Part ID (channel I+II - both colour temperatures 1850K (True Amber) + 2200K / 2200K + 3000K) Part ID (channel I - lower colour temperature 1850K (True Amber) / 2200K only) Part ID (channel II - upper colour temperature 2200K / 3000K only) Photometric files (IES, LDT) for light distributions [S61] [S65] [S66] [S70] [R60] [R61] [P66] [Q66] [A61] with Backlight Shield on request.

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS Polymer Coated Stainless Steel Hardware
FarbenPending
DichtungCCG® Controlled Compression Gasket
SchlagfestigkeitIK08
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
BefestigungSpigot rotatable for either post top or side entry version. Must be indicated during order placement.

Elektrik

LED TreiberIntegral EC electronic converter. DALI
Kabel
Leistungsfaktor> 0.9
Netz220-240V / 50-60 Hz
Überspannungsschutz6/6kV, optional 10kV

Weitere Eigenschaften

LifetimeTa=25° L90B10 > 90000h
Energy efficiency classF-G (Light source)

Lichtverteilung

Lichtstrom (lm)

Leistung (W)

Farbtemperatur (K)

CRI

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
102-0136asymmetric, side throw beam [S61]LED-8-16/8W-32W/2200K-3000K5253.670/80EC7.00
102-0147asymmetric, forward throw [A61]LED-8-16/8W-32W/True Amber-2200K3983NA/70EC7.00
102-0138asymmetric, side throw beam [S65]LED-8-16/8W-32W/2200K-3000K5240.470/80EC7.00
102-0139asymmetric, side throw beam [S65]LED-8-16/8W-32W/True Amber-2200K4192.3NA/70EC7.00
102-0140asymmetric, side throw [S70]LED-8-16/8W-32W/2200K-3000K5126.570/80EC7.00
102-0141asymmetric, side throw [S70]LED-8-16/8W-32W/True Amber-2200K4101.2NA/70EC7.00
102-0142rectangular, side throw [R60]LED-8-16/8W-32W/2200K-3000K5287.370/80EC7.00
102-0143rectangular, side throw [R60]LED-8-16/8W-32W/True Amber-2200K4229.9NA/70EC7.00
102-0144pedestrian/bicycle lane [P66]LED-8-16/8W-32W/2200K-3000K4856.570/80EC7.00
102-0145pedestrian/bicycle lane [P66]LED-8-16/8W-32W/True Amber-2200K3885.2NA/70EC7.00
102-0146asymmetric, forward throw [A61]LED-8-16/8W-32W/2200K-3000K4978.770/80EC7.00
102-0137asymmetric, side throw beam [S61]LED-8-16/8W-32W/True Amber-2200K4202.9NA/70EC7.00
102-0148square distribution [Q66]LED-8-16/8W-32W/2200K-3000K4834.170/80EC7.00
102-0149square distribution [Q66]LED-8-16/8W-32W/True Amber-2200K3867.2NA/70EC7.00
102-0150pedestrian crossing, right-hand traffic [P46R]LED-8-16/8W-32W/2200K-3000K5340.370/80EC7.00
102-0151pedestrian crossing, right-hand traffic [P46R]LED-8-16/8W-32W/True Amber-2200K4272.2NA/70EC7.00
102-0152pedestrian crossing, left-hand traffic [P46L]LED-8-16/8W-32W/2200K-3000K5525.370/80EC7.00
102-0153pedestrian crossing, left-hand traffic [P46L]LED-8-16/8W-32W/True Amber-2200K4420.2NA/70EC7.00
102-0136_2asymmetric, side throw beam [S61]LED-16/32W/3000K4202.980EC7.00
102-0137_2asymmetric, side throw beam [S61]LED-16/32W/2200K391370EC7.00
102-0138_2asymmetric, side throw beam [S65]LED-16/32W/3000K4192.380EC7.00
102-0139_2asymmetric, side throw beam [S65]LED-16/32W/2200K3903.270EC7.00
102-0140_2asymmetric, side throw [S70]LED-16/32W/3000K4101.280EC7.00
102-0141_2asymmetric, side throw [S70]LED-16/32W/2200K3818.470EC7.00
102-0142_2rectangular, side throw [R60]LED-16/32W/3000K4229.980EC7.00
