ESC100

265 mm

250 mm

ESC130 Standard Depth

315 mm

305 mm

ESC140 Standard Depth

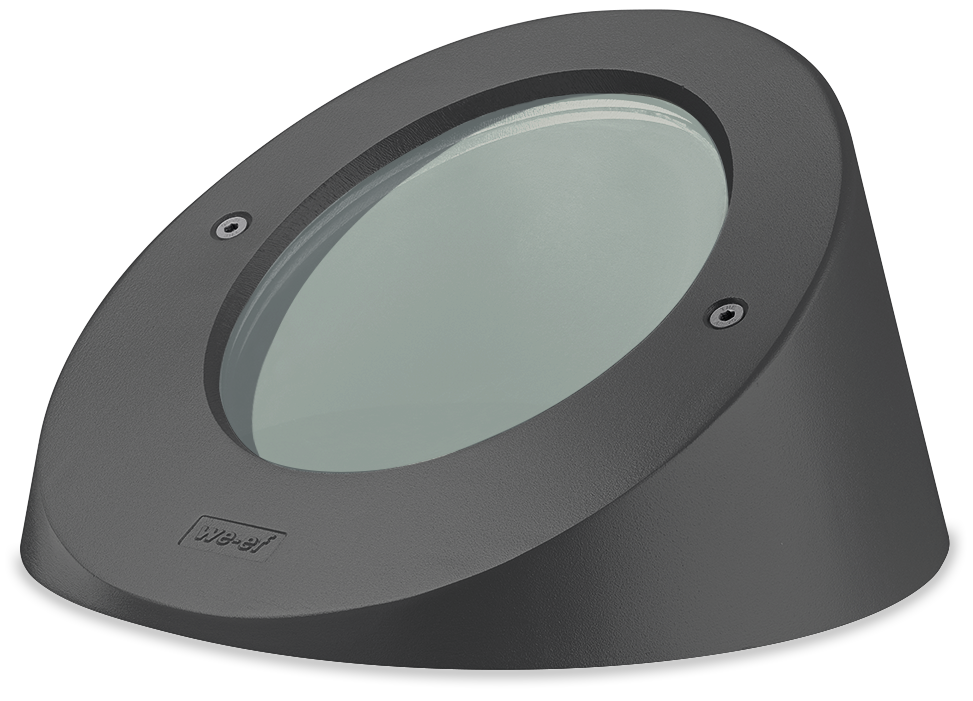

IP67, Class I. IK07. Stainless steel construction inground section. Die-cast hood with 30° angle made from marine-grade aluminium alloy avoids glare to passers-by and helps prevent accumulation of insects, leaves and debris on the lens. 5CE superior corrosion protection including PCS hardware. Silicone rubber gasket. Safety glass lens. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. Factory installed LED circuit board. Factory-sealed termination chamber complete with cable gland including spiral cable bending protection and 1.5 m of flexible PVC free cable. The optional installation blockout is recommended for mounting. To be ordered separately.

Colors

Material

Body: Stainless steel inground section. Die-cast dome made from marine-grade aluminium alloy

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone rubber gasket

Impact Protection: IK07

Ingress Protection: IP67

Finish: Powdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016

Corrosion Protection: 5CE

Mounting:

Electrical

Ballast / Driver: Integral EC electronic converter

Cable: 1.5 m of flexible PVC free cable

Power Factor: > 0.9

Power Supply: 220-240V / 50-60 Hz

Surge Protection: 6/6 kV

Additional Information

Lifetime: Ta=25° L90B10 > 90000h

Energy efficiency class: C-D (Light source)

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
185-3003	symmetric, medium beam [M]	LED-24/24W / 350 mA - 3000 K	2530.6	80
185-3083	symmetric, medium beam [M]	LED-24/24W / 350 mA - 4000 K	2775.5	80
185-3084	symmetric, very narrow beam [EE]	LED-24/24W / 350 mA - 3000 K	2596.9	80
185-3085	symmetric, very narrow beam [EE]	LED-24/24W / 350 mA - 4000 K	2848.3	80
185-3086	symmetric, very narrow beam, sharp cut-off [EES]	LED-24/24W / 350 mA - 3000 K	2731.3	80
185-3087	symmetric, very narrow beam, sharp cut-off [EES]	LED-24/24W / 350 mA - 4000 K	2995.6	80
185-3376	symmetric, medium beam [M]	LED-24/24W / 350 mA - 2700 K	2367.3	80
185-3533	symmetric, very narrow beam [EE]	LED-24/24W / 350 mA - 2700 K	2429.4	80
185-3534	symmetric, very narrow beam, sharp cut-off [EES]	LED-24/24W / 350 mA - 2700 K	2555.1	80
