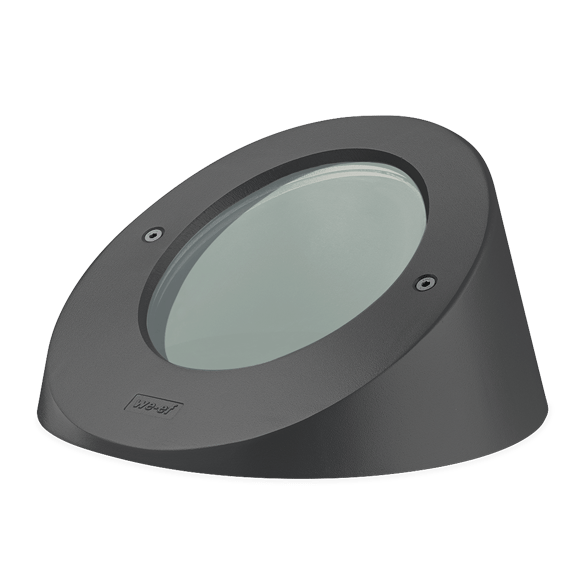

IP67. Class I. IK07. Stainless steel construction inground section. Marine-grade, die-cast aluminum alloy hood with 30° angle avoids glare to passers-by and helps prevent accumulation of insects, leaves and debris on the lens. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Factory-sealed termination chamber complete with cable gland including spiral cable bending protection and 3 ft of flexible PVC-free cable. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Suitable for flush installation in concrete or earth. The optional installation blockout is recommended for mounting; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

ESC140 LED Schematics
Colors
Material

Body: Stainless steel inground section. Die-cast dome made from marine-grade aluminum alloy

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone rubber gasket

Impact Protection: IK07

Ingress Protection: IP67

Finish: Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.

Corrosion Protection: 5CE

Mounting:

Electrical

Ballast / Driver:

Cable: 3 feet of flexible 18/3 cable

Power Factor:

Power Supply: Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Surge Protection: 6/6 kV

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

:

:

Light Distribution

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
185-3003symmetric, medium beam [M]LED-24/24W / 350 mA - 3000 K2530.680
185-3083symmetric, medium beam [M]LED-24/24W / 350 mA - 4000 K2775.580
185-3084symmetric, very narrow beam [VN]LED-24/24W / 350 mA - 3000 K2596.980
185-3085symmetric, very narrow beam [VN]LED-24/24W / 350 mA - 4000 K2848.380
185-3086symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/24W / 350 mA - 3000 K2731.380
185-3087symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/24W / 350 mA - 4000 K2995.680
185-3376symmetric, medium beam [M]LED-24/24W / 350 mA - 2700 K2367.380
185-3533symmetric, very narrow beam [VN]LED-24/24W / 350 mA - 2700 K2429.480
185-3534symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/24W / 350 mA - 2700 K2555.180
Showing 1 to 9 of 9 Entries

Accessories

Part-IDTitlePDFOpen Data
Please select an accessory category
ItemDownloadMail Link
Product Images
Light Distributions
Install Instructions
Manual
WE-EF Technical Information - SJB Sealable junction box / Installation Instruction
