DOC110 LED
Depth: 96 mm
Diameter ⌀: 117 mm
DOC120 LED
Depth: 96 mm
Diameter ⌀: 155 mm
DOC140 LED
Depth: 96 mm
Diameter ⌀: 216 mm
Home
Products
Ceiling Luminaires
DOC110 LED
Family Spec Sheet Installation Instructions More Downloads

IP66, Class I. Class II on request. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® gasket. Safety glass lens. Two cable entries. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory- sealed and does not need to be opened during the installation. Optional 2200 K version available. To be specified at time of ordering. Suitable for mounting up to max. 40 mm ceiling thickness. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings. To be ordered separately. The luminaire is not suitable for chlorine containing environments e.g. swimming pool. Special version suitable for chlorine containing environments, on request. Must be specified at time of ordering.

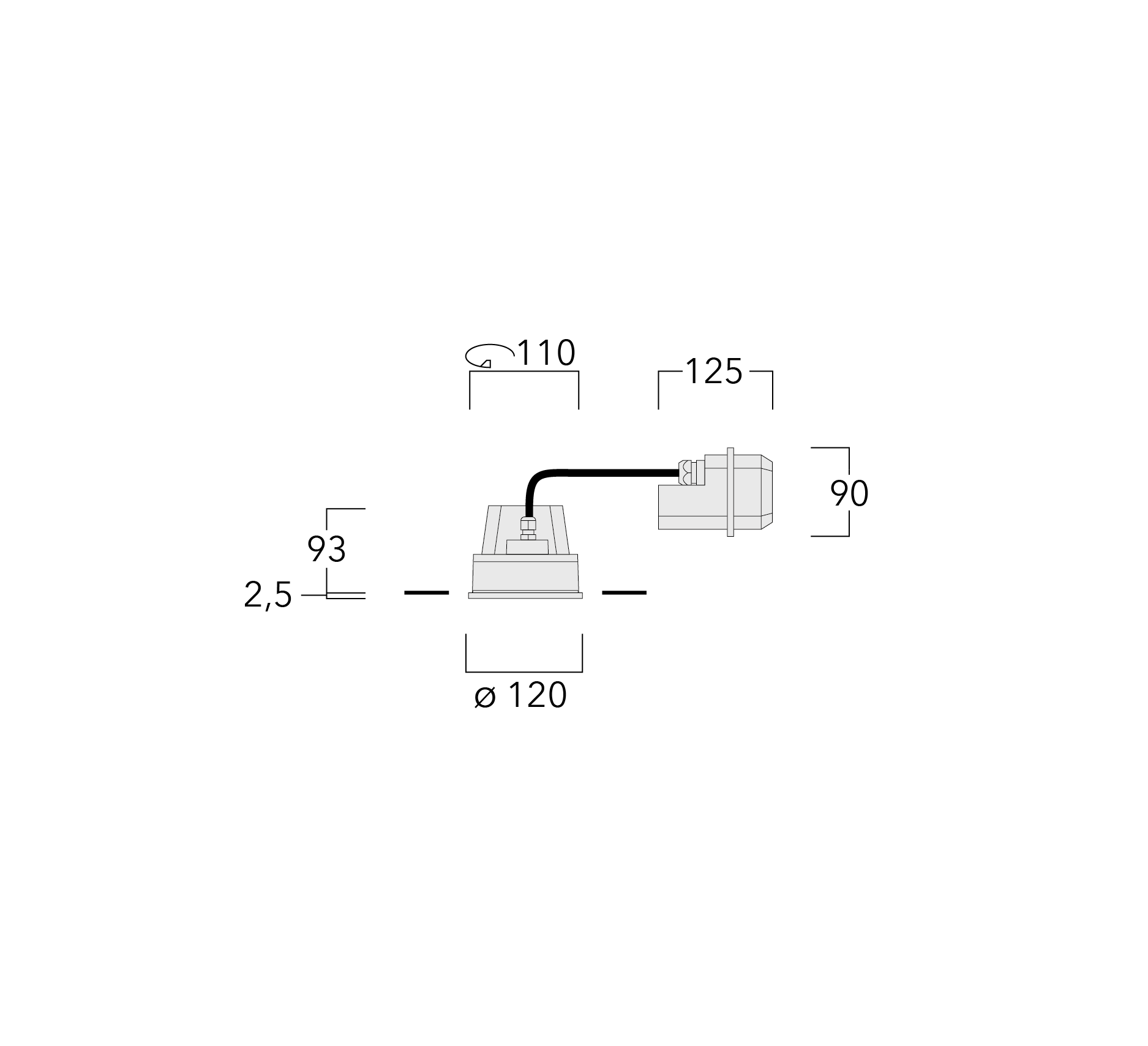

DOC110 LED Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016
Corrosion Protection5CE
MountingSuitable for mounting up to max. 40 mm ceiling thickness. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings. To be ordered separately.
Electrical
Ballast / DriverStandard. Optional DALI version available. To be specified at time of ordering.
CableTwo cable entries
Power Supply220-240V / 50-60 Hz
Surge Protection1/2 kV
Additional Information
LifetimeTa=25° L90B10 > 90000h
Energy efficiency classC-D (Light source)

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
134-1625symmetric, wide beam [B]LED-6/12W / 700 mA - 3000 K1347.180 ULD
134-1626symmetric, wide beam [B]LED-6/12W / 700 mA - 4000 K144080 ULD
134-1627symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1511.880 ULD
134-1628symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1616.180 ULD
134-1631symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K1496.580 ULD
134-1632symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1599.780 ULD
134-1633symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K1610.780 ULD
134-1634symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1721.880 ULD
134-1627wallwash [A20]LED-6/12W / 700 mA - 3000 K1142.480 ULD
134-1628wallwash [A20]LED-6/12W / 700 mA - 4000 K1221.280 ULD
134-1631linear spread, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K1386.380 ULD
134-1632linear spread, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1481.980 ULD
134-1633linear spread, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K1526.280 ULD
134-1634linear spread, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1631.580 ULD
134-1907symmetric, wide beam [B]LED-6/12W / 700 mA - 2700 K1254.280 ULD
134-1908symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1407.580 ULD
134-1909symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 2700 K1393.380 ULD
134-1910symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 2700 K1499.680 ULD
134-1908wallwash [A20]LED-6/12W / 700 mA - 2700 K1063.680 ULD
Showing 1 to 19 of 19 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
430-0013DALI interface
ItemDownload
Product Images
Photometrics
Installation Instructions
