ESC300 series

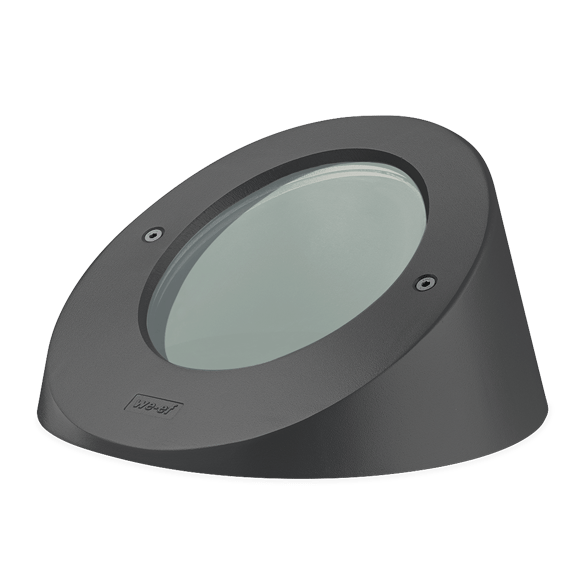

ESC340-FS LED
IP67, Class I. IK07. Stainless steel construction including PCS hardware. Silicone rubber gasket. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 1,5 m of flexible PVC free cable. Cable gland with spiral cable bending protection. 'No tool' removable gear/reflector tray. Anodised aluminium reflector. Luminaire requires installation blockout and sealable junction box, which are included in supply. 2700 K option available on request. IMPORTANT! Inground blockouts must be installed with effective drainage, watch here.
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
Material
| Body | Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware (unpainted) |
| Gasket | Silicone rubber gasket |
| Impact Protection | IK09 |
| Ingress Protection | IP67 |
| Finish | Powdercoat finish in black RAL9004, grey aluminium RAL9007, white aluminium RAL9006 or white RAL9016 |
| Corrosion Protection | 5CE. 5CE+Primer optional |
Electrical
| Ballast / Driver | Integral EC electronic converter |
| Cable | Complete with cable gland and 0.5 m of flexible PVC-free cable |
| Power Supply | 230V / 50 Hz |
Additional Information
| Warranty | The product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details. Warranty void if installed without proper drainage. |
- - - -
Accessories
| Item | Download |
|---|---|
| Product Images | |
| Photometrics | |
| Installation Instructions | |
| WE-EF LIGHTING - TEN YEAR WARRANTY - LED LUMINAIRES | |
| Installation Instruction - ETC300 Blockout |
