FLD100 series

FLD131 LED Space frame

Static White

Choose a variant:

RAIL66

Space Frame

Choose a family:

L95×W95 mm | FLD111 LED Space frame L175×W130 mm | FLD121 LED Space frame L200×W156 mm | FLD131 LED Space frame

Home

Products

RAIL66

FLD131 LED Space frame

Family Spec Sheet Installation Instructions More Downloads

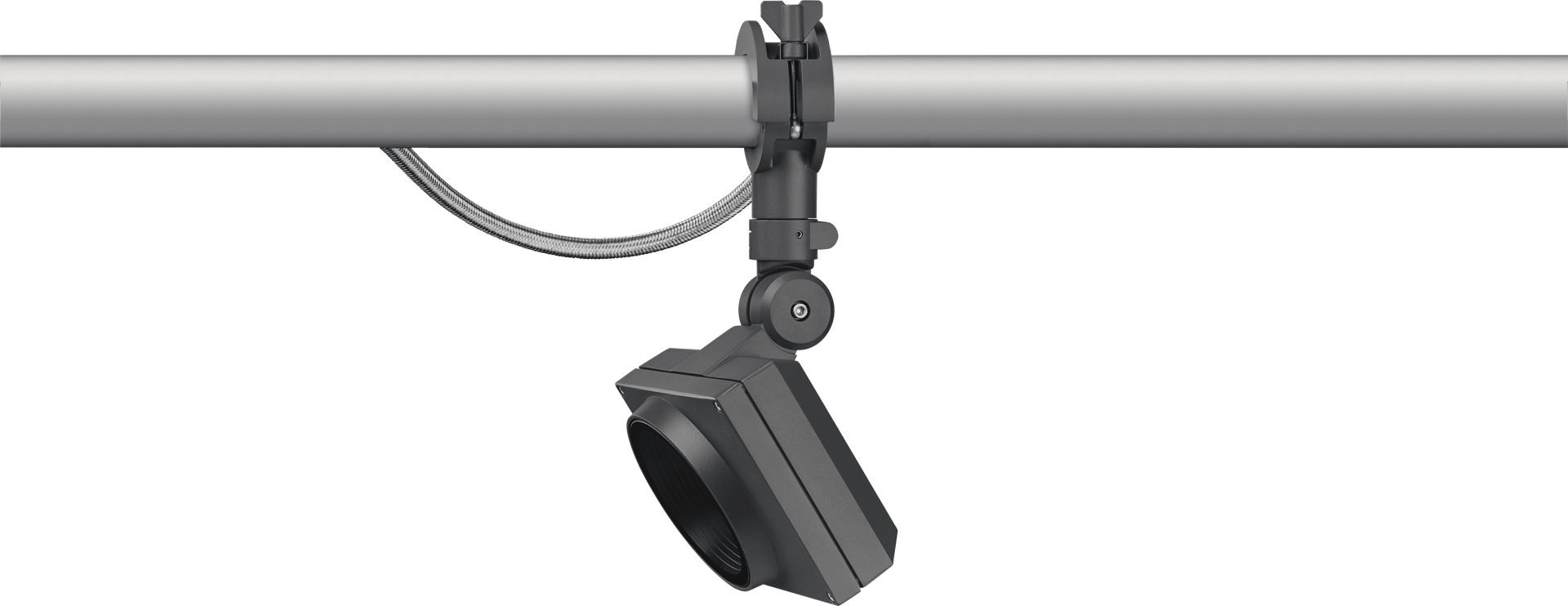

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Including terminal box, for mounting on ø 48-60 mm pipes or space frames.

Colours

RAL9004 Signal black

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS hardware
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK07
Ingress Protection	IP66
Finish	Powdercoat finish in black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Corrosion Protection	5CE
Mounting	Including terminal box, for mounting on ø 48-60 mm pipes or space frames

Electrical

Ballast / Driver

Integral EC electronic converter in thermally-separated compartment

Additional Information

Light Distribution

Delivered Lumen

Wattage

Colour Temperature

Part-ID	Light Distribution	Light Source	Delivered Lumen	CRI	Specifications
					Text	PDF
145-9615	symmetric, very narrow beam, sharp cut-off [EES]	LED-12/24W / 700 mA - 4000 K	3191.8	80
145-9563	symmetric, medium beam [M]	LED-12/24W / 700 mA - 3000 K	2908.1	80
145-9564	symmetric, very narrow beam [EE]	LED-12/24W / 700 mA - 3000 K	2786.9	80
145-9566	symmetric, medium beam [M]	LED-12/24W / 700 mA - 4000 K	3108.7	80
145-9567	symmetric, very narrow beam [EE]	LED-12/24W / 700 mA - 4000 K	2979.1	80
145-9612	symmetric, wide beam [B]	LED-12/24W / 700 mA - 3000 K	2296.7	80
145-9613	symmetric, very narrow beam, sharp cut-off [EES]	LED-12/24W / 700 mA - 3000 K	2985.8	80
145-9614	symmetric, wide beam [B]	LED-12/24W / 700 mA - 4000 K	2455	80
145-9563	wallwash	LED-12/24W / 700 mA - 3000 K	2284.9	80
145-9566	wallwash	LED-12/24W / 700 mA - 4000 K	2442.4	80
145-9918	symmetric, wide beam [B]	LED-12/36W / 1050 mA - 3000 K	3795.1	80
145-9919	symmetric, wide beam [B]	LED-12/36W / 1050 mA - 4000 K	3971.6	80
145-9914	symmetric, medium beam [M]	LED-12/36W / 1050 mA - 3000 K	4325.2	80
145-9915	symmetric, medium beam [M]	LED-12/36W / 1050 mA - 4000 K	4526.4	80
145-9916	symmetric, very narrow beam [EE]	LED-12/36W / 1050 mA - 3000 K	4093.2	80
145-9917	symmetric, very narrow beam [EE]	LED-12/36W / 1050 mA - 4000 K	4283.6	80
145-9642	symmetric, wide beam [B]	LED-12/24W / 700 mA - 2700 K	2138.3	80
145-9643	symmetric, medium beam [M]	LED-12/24W / 700 mA - 2700 K	2715.8	80
145-9644	symmetric, very narrow beam [EE]	LED-12/24W / 700 mA - 2700 K	2594.7	80
145-9645	symmetric, very narrow beam, sharp cut-off [EES]	LED-12/24W / 700 mA - 2700 K	2779.9	80

Showing 1 to 20 of 20 entries.

Accessories

Optical Accessories

Control

Part-ID	Title	Specifications
		Text	PDF
145-9570	External optical adaptor EA
