FLD100 Serie

FLD111 LED Space frame

Static White

Variantenauswahl:

RAIL66
Space Frame

Familienauswahl:

L95×W95 mm | FLD111 LED Space frame L175×W130 mm | FLD121 LED Space frame L200×W156 mm | FLD131 LED Space frame
Startseite
Produkte
RAIL66

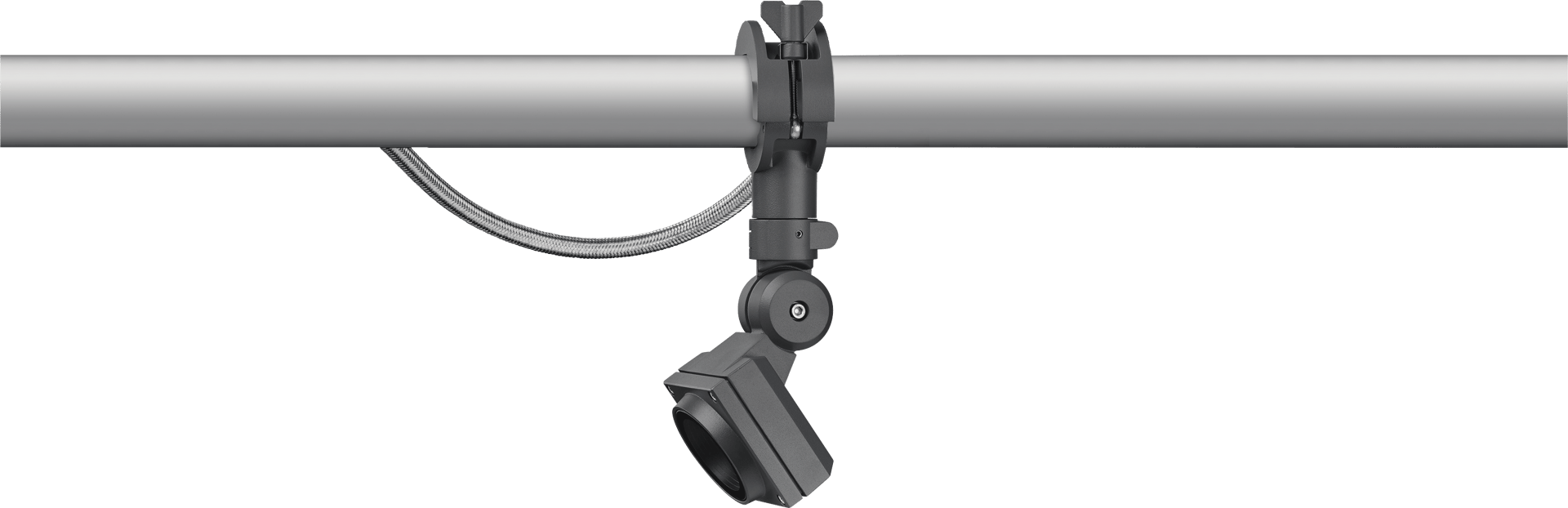

FLD111 LED Space frame
Familiendatenblatt Installationsanleitung Weitere Downloads

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Including terminal box, for mounting on ø 48-60 mm pipes or space frames.

FLD111 LED Space frame Schematics
Farben
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Materialinformationen
GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS hardware
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK07
SchutzartIP66
OberflächenbehandlungPowdercoat finish in black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Korrosionsbeständigkeit5CE
InstallationIncluding terminal box, for mounting on ø 48-60 mm pipes or space frames
Elektrische Informationen
Netzgerät / VorschaltgerätIntegral EC electronic converter in thermally-separated compartment
Weitere Informationen

Bemessungslichtstrom

To

Leistung

To
ArtikelnummerLichtverteilungLichtquelleBemessungslichtstromCRISpezifikationenPhotometrie
TextPDF
145-9818symmetric, medium beam [M]LED-3/6W / 700 mA - 3000 K696.380
145-9819symmetric, very narrow beam [EE]LED-3/6W / 700 mA - 3000 K650.780
145-9820symmetric, very narrow beam, sharp cut-off [EES]LED-3/6W / 700 mA - 3000 K700.780
145-9822symmetric, medium beam [M]LED-3/6W / 700 mA - 4000 K744.380
145-9823symmetric, very narrow beam [EE]LED-3/6W / 700 mA - 4000 K695.680
145-9824symmetric, very narrow beam, sharp cut-off [EES]LED-3/6W / 700 mA - 4000 K74980
145-9818wallwashLED-3/6W / 700 mA - 3000 K458.280
145-9822wallwashLED-3/6W / 700 mA - 4000 K489.780
145-7086symmetric, wide beam [B]LED-3/6W / 700 mA - 3000 K584.980
145-7087symmetric, wide beam [B]LED-3/6W / 700 mA - 4000 K625.380
145-7032symmetric, wide beam [B]LED-3/9W / 1050mA - 3000 K841.580
145-7033symmetric, wide beam [B]LED-3/9W / 1050mA - 4000 K880.680
145-7034symmetric, medium beam [M]LED-3/9W / 1050mA - 3000 K965.480
145-7035symmetric, medium beam [M]LED-3/9W / 1050mA - 4000 K1010.380
145-7116symmetric, wide beam [B]LED-3/6W / 700 mA - 2700 K544.680
145-7117symmetric, medium beam [M]LED-3/6W / 700 mA - 2700 K648.380
145-7118symmetric, very narrow beam [EE]LED-3/6W / 700 mA - 2700 K605.880
145-7119symmetric, very narrow beam, sharp cut-off [EES]LED-3/6W / 700 mA - 2700 K652.380
145-7129symmetric, wide beam [B]LED-3/9W / 1050 mA - 2700 K802.380
145-7130symmetric, medium beam [M]LED-3/9W / 1050 mA - 2700 K920.580
145-7131symmetric, very narrow beam [EE]LED-3/9W / 1050 mA - 2700 K1009.580
145-7036symmetric, very narrow beam [EE]LED-3/9W / 1050mA - 3000 K1058.880
145-7037symmetric, very narrow beam [EE]LED-3/9W / 1050mA - 4000 K1058.880
Einträge 1 bis 23 von 23.

Accessories

ArtikelnummerTitelSpezifikationen
TextPDF
145-9830External optical adaptor EA
