FLD100 series

FLD121 LED Space frame

Static White

Choose a variant:

RAIL66

Space Frame

Choose a family:

L95×W95 mm | FLD111 LED Space frame L175×W130 mm | FLD121 LED Space frame L200×W156 mm | FLD131 LED Space frame

Home

Products

RAIL66

FLD121 LED Space frame

Family Spec Sheet Installation Instructions More Downloads

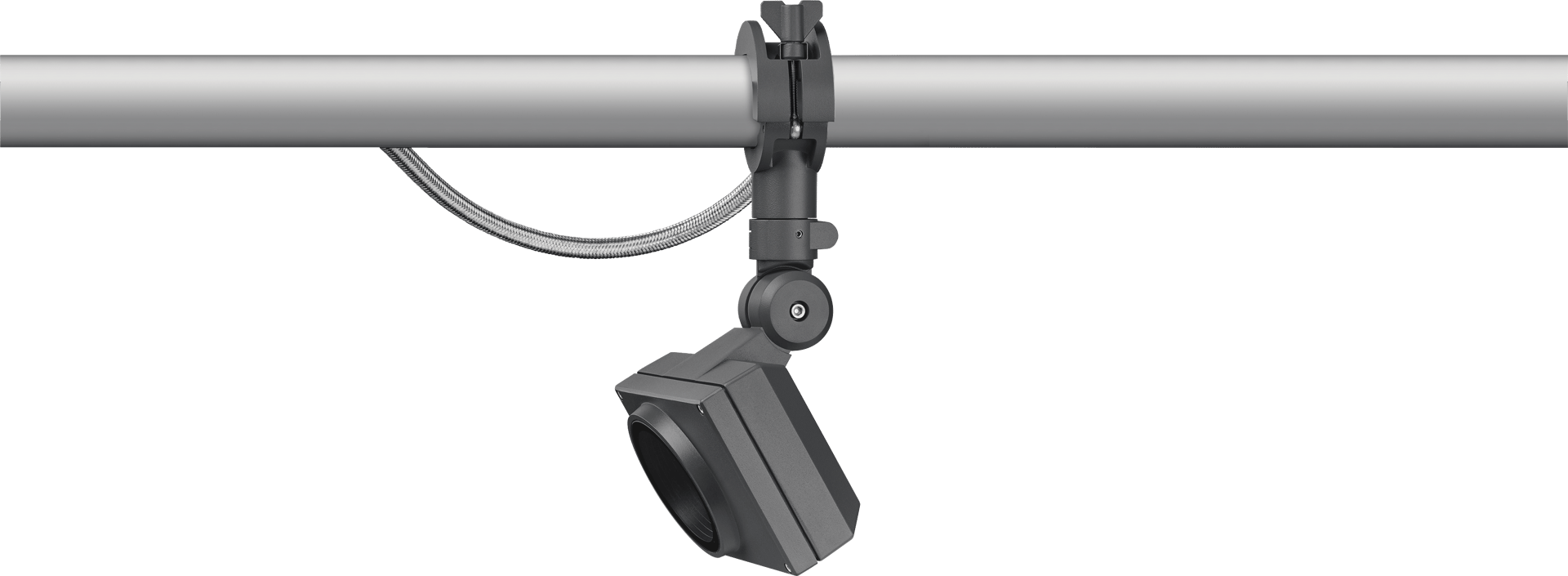

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Including terminal box, for mounting on ø 48-60 mm pipes or space frames.

Colours

RAL9004 Signal black

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS hardware
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK07
Ingress Protection	IP66
Finish	Powdercoat finish in black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Corrosion Protection	5CE
Mounting	Including terminal box, for mounting on ø 48-60 mm pipes or space frames

Electrical

Ballast / Driver

Integral EC electronic converter in thermally-separated compartment

Additional Information

Light Distribution

Delivered Lumen

Wattage

Colour Temperature

Part-ID	Light Distribution	Light Source	Delivered Lumen	CRI	Specifications
					Text	PDF
145-9518	symmetric, medium beam [M]	LED-6/12W / 700 mA - 3000 K	1454.1	80
145-9519	symmetric, medium beam [M]	LED-6/12W / 700 mA - 4000 K	1554.3	80
145-9520	symmetric, wide beam [B]	LED-6/12W / 700 mA - 3000 K	1148.3	80
145-9521	symmetric, wide beam [B]	LED-6/12W / 700 mA - 4000 K	1227.5	80
145-9522	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 3000 K	1393.4	80
145-9523	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 4000 K	1489.5	80
145-9524	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 3000 K	1492.9	80
145-9525	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 4000 K	1595.9	80
145-9518	wallwash	LED-6/12W / 700 mA - 3000 K	1142.4	80
145-9519	wallwash	LED-6/12W / 700 mA - 4000 K	1221.2	80
145-9876	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 3000 K	2018.8	80
145-9877	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 4000 K	2112.7	80
145-9874	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 3000 K	2167.2	80
145-9875	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 4000 K	2268	80
145-9878	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 3000 K	2165.6	80
145-9879	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 4000 K	2266.4	80
145-7149	symmetric, wide beam [B]	LED-6/12W / 700 mA - 2700 K	1069.1	80
145-7165	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 2700 K	1924.9	80
145-7148	symmetric, medium beam [M]	LED-6/12W / 700 mA - 2700 K	1353.8	80
145-7164	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 2700 K	2066.4	80
145-7150	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 2700 K	1297.3	80
145-7166	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 2700 K	2064.9	80
145-7151	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 2700 K	1390	80

Showing 1 to 23 of 23 entries.

Accessories

Optical Accessories

Control

Part-ID	Title	Specifications
		Text	PDF
145-9479	Wallwash lens IO-20
