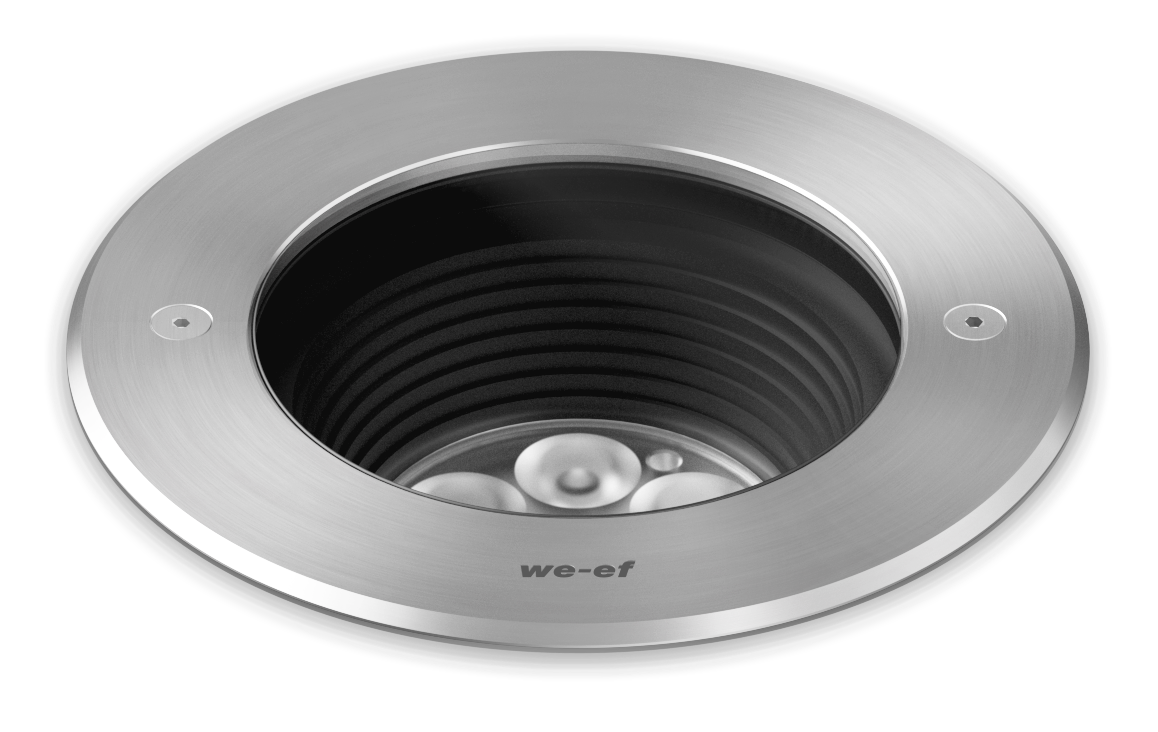

EVC320-FS LED
Family Spec Sheet Installation Instructions More Downloads

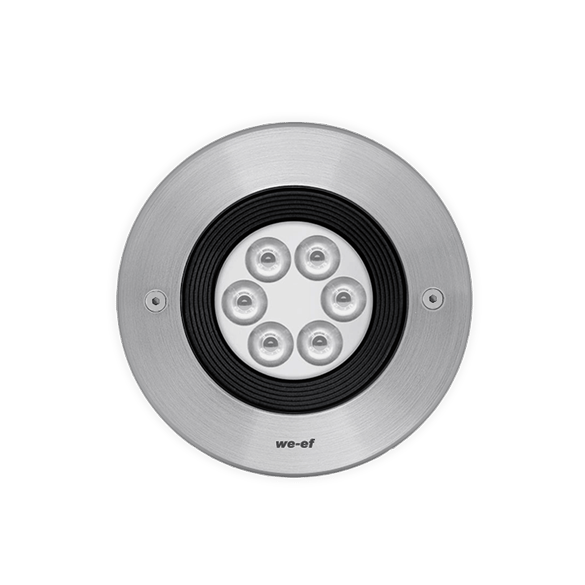

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Anti-wick technology, equipped with a cable gland and 0.5 meters of flexible, PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

EVC320-FS LED Schematics
Colours
Stainless Steel
Material
BodyStainless steel construction
FastenersPCS hardware
GasketSilicone rubber gasket
Impact ProtectionIK10+
Ingress ProtectionIP69
Finish-
MountingLuminaire installation blockout and sealable junction box included in supply
Electrical
Ballast / DriverIntegral EC electronic converter
CableComplete with cable gland and 0.5 m of flexible PVC-free cable
Additional Information

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
185-7125symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1531.880
185-7126symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K149780
185-7128symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1637.480
185-7129symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1600.380
185-7701symmetric, wide beam [B]LED-6/12W / 700 mA - 3000 K1363.580
185-7702symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K1624.780
185-7703symmetric, wide beam [B]LED-6/12W / 700 mA - 4000 K1457.580
185-7704symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1736.880
185-7125wallwashLED-6/12W / 700 mA - 3000 K1179.480
185-7128wallwashLED-6/12W / 700 mA - 4000 K1260.880
185-7850symmetric, wide beam [B]LED-6/12W / 700 mA - 2700 K109680
185-7851symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1230.280
185-7852symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 2700 K1202.380
185-7853symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 2700 K1305.780
185-7851wallwashLED-6/12W / 700 mA - 2700 K947.880
Showing 1 to 15 of 15 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
430-0013DALI interface
