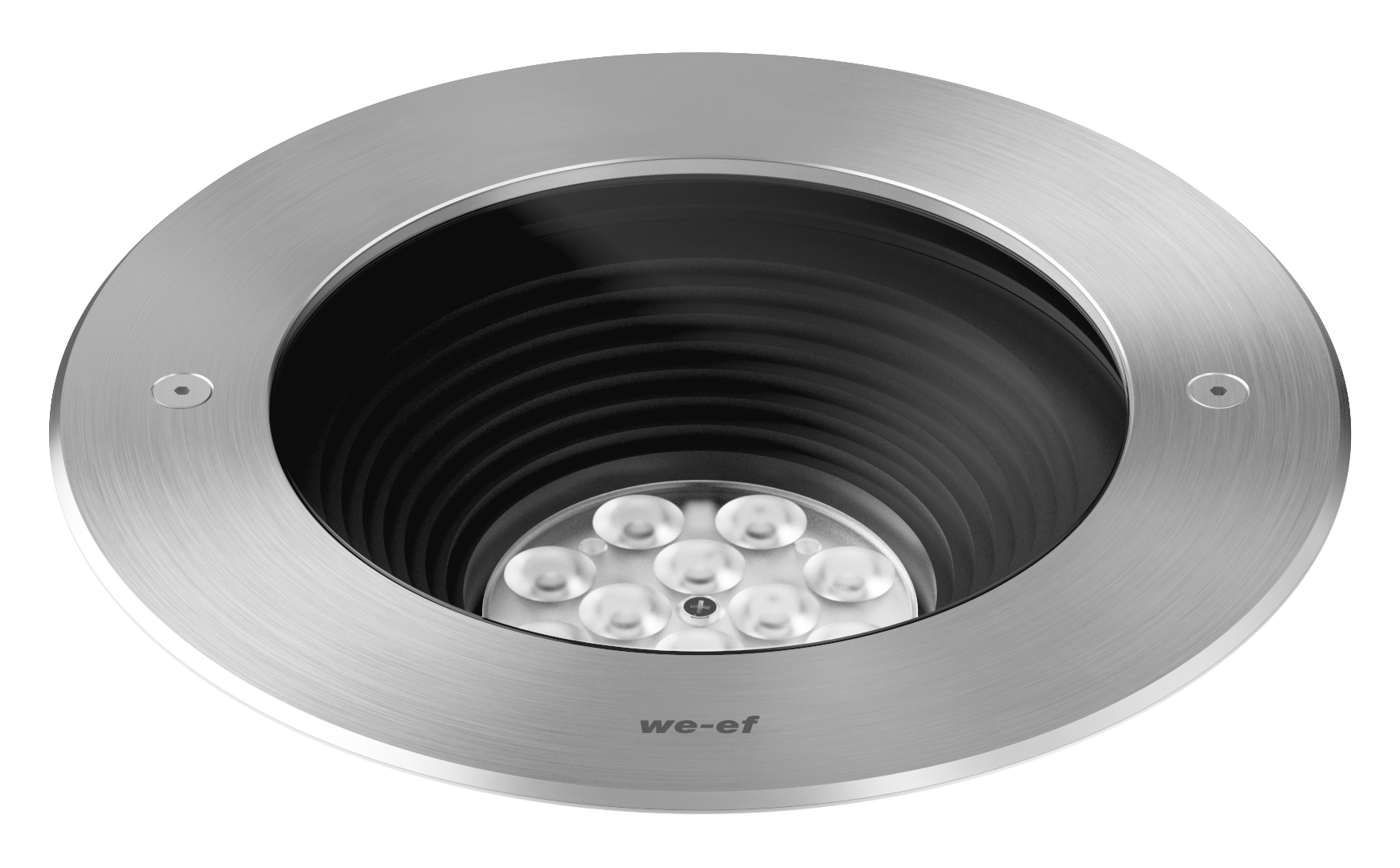

Tunable white. IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Anti-wick technology, equipped with a cable gland and 0.5 meters of flexible, PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. LED circuit board with Tunable White Technology. DALI Interface. For other control interface options to suit specific project requirements, contact WE-EF. Luminaire installation blockout and sealable junction box included in supply.

EVC330-FS TW LED Schematics
Farben
Stainless Steel
Materialinformationen
GehäuseStainless steel construction
SchraubenPCS hardware
DichtungSilicone rubber gasket
SchlagfestigkeitIK10+
SchutzartIP69
InstallationLuminaire installation blockout and sealable junction box included in supply
Elektrische Informationen
Netzgerät / VorschaltgerätIntegral EC electronic converter with DALI Interface
KabelComplete with cable gland and 0.5 m of flexible PVC-free cable
Weitere Informationen
ArtikelnummerLichtverteilungLichtquelleBemessungslichtstromCRISpezifikationenPhotometrie
TextPDF
185-7795symmetric, wide beam [B]LED-12/19W - 2200-6000 K1926.580 ULD
185-7796symmetric, medium beam [M]LED-12/19W - 2200-6000 K201280 ULD
185-7895symmetric, wallgrazer [A6]LED-12/19W - 2200-6000 K1702.180 ULD
Einträge 1 bis 3 von 3.

Accessories

ArtikelnummerTitelSpezifikationen
TextPDF
185-7170Linear spread lens IO-180
ItemDownload
Produktbilder
Photometrie
Installationsanleitung
