ETC100 Serie

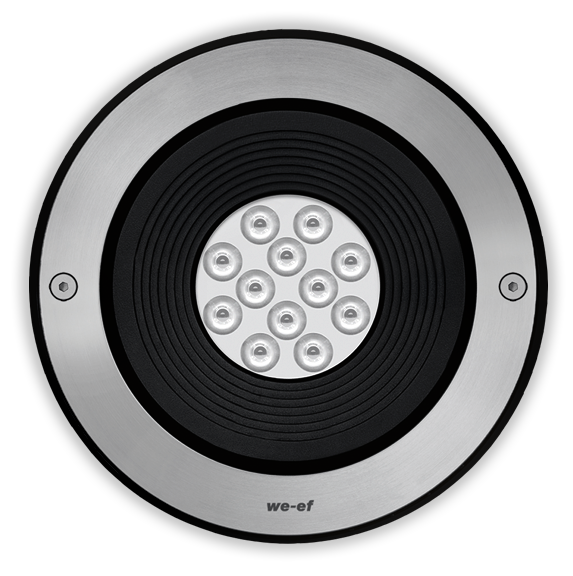

ETC130-FS LED

Static White

Variantenauswahl:

Fixed
Gimbal

Familienauswahl:

D120 ⌀65 mm | ETC109-FS LED D300 ⌀160 mm | ETC120-FS LED D300 ⌀160 mm | ETC129-FS LED D375 ⌀250 mm | ETC130-FS LED
Startseite
Produkte
Inground Luminaires
ETC130-FS LED
Familiendatenblatt Installationsanleitung Weitere Downloads

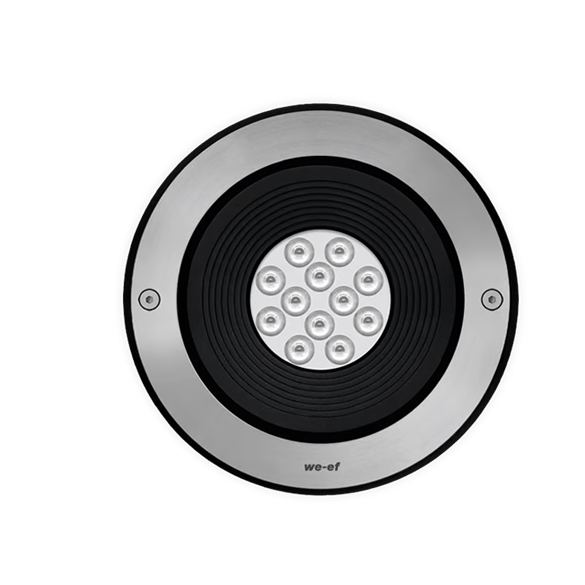

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Anti-wick technology, equipped with a cable gland and 1.5 meters of flexible, PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

ETC130-FS LED Schematics
Farben
Stainless Steel
Materialinformationen
GehäuseStainless steel construction
SchraubenPCS hardware
DichtungSilicone rubber gasket
SchlagfestigkeitIK10+
SchutzartIP69
Oberflächenbehandlung-
InstallationLuminaire installation blockout and sealable junction box included in supply
Elektrische Informationen
Netzgerät / VorschaltgerätIntegral EC electronic converter
KabelComplete with cable gland and 1.5 m of flexible PVC-free cable
Weitere Informationen

Bemessungslichtstrom

To
ArtikelnummerLichtverteilungLichtquelleBemessungslichtstromCRISpezifikationenPhotometrie
TextPDF
185-7661symmetric, wide beam [B]LED-12/24W / 700 mA - 3000 K263180
185-7662symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 3000 K3033.180
185-7663symmetric, wide beam [B]LED-12/24W / 700 mA - 4000 K2812.480
185-7664symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 4000 K3242.280
185-9156symmetric, medium beam [M]LED-12/24W / 700 mA - 3000 K3019.680
185-9157symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 3000 K2850.780
185-9159symmetric, medium beam [M]LED-12/24W / 700 mA - 4000 K3227.880
185-9160symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 4000 K3047.380
185-9156wallwashLED-12/24W / 700 mA - 3000 K2431.680
185-9159wallwashLED-12/24W / 700 mA - 4000 K2599.380
Einträge 1 bis 10 von 10.

Accessories

ArtikelnummerTitelSpezifikationen
TextPDF
430-0013DALI interface
