ETC120-GB LED

Back
Standard Colours
Tunable White
Colour Changer
Family Spec Sheet
Standard Depth Standard Depth 195 mm 195 mm 160 mm 160 mm
Standard Depth Standard Depth 265 mm 265 mm 252 mm 252 mm
Reduced Depth Reduced Depth 315 mm 315 mm 304 mm 304 mm
Reduced Depth Reduced Depth 150 mm 150 mm 160 mm 160 mm
Reduced Depth Reduced Depth 180 mm 180 mm 252 mm 252 mm

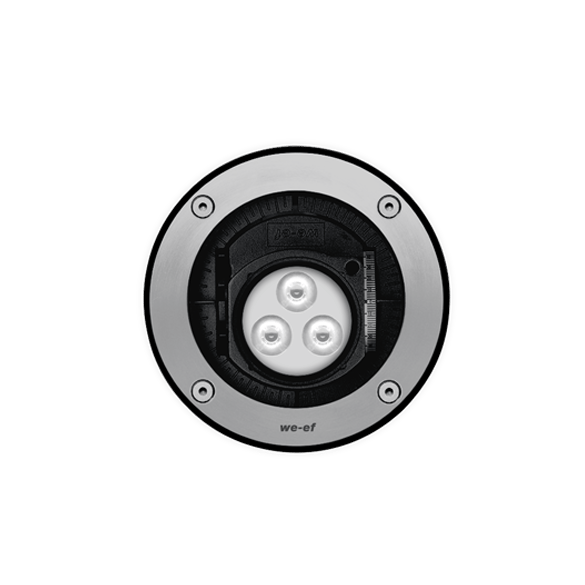

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Anti-wick technology, equipped with a cable gland and 1.5 meters of flexible, PVC-free cable.
Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.

Eigenschaften

Material

GehäuseStainless steel construction
SchraubenPCS hardware
FarbenPending
DichtungSilicone rubber gasket
SchlagfestigkeitIK10+
SchutzartIP69
Abdeckung-
Korrosionsschutz
BefestigungLuminaire installation blockout and sealable junction box included in supply

Elektrik

LED TreiberIntegral EC electronic converter
KabelComplete with cable gland and 1.5 m of flexible PVC-free cable
Leistungsfaktor
Netz
Überspannungsschutz

Weitere Eigenschaften

Lichtverteilung

Lichtstrom (lm)

Leistung (W)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
185-7592symmetric, medium beam [M]LED-3/6W / 700 mA - 3000 K696.380EC3.70
185-7593symmetric, very narrow beam [EE]LED-3/6W / 700 mA - 3000 K650.780EC3.70
185-7593linear spread, very narrow beam [EE]LED-3/6W / 700 mA - 3000 K63080EC3.90
185-7593flood, very narrow beam [EE]LED-3/6W / 700 mA - 3000 K605.380EC3.90
185-7595symmetric, medium beam [M]LED-3/6W / 700 mA - 4000 K744.380EC3.70
185-7596symmetric, very narrow beam [EE]LED-3/6W / 700 mA - 4000 K695.680EC3.70
185-7596linear spread, very narrow beam [EE]LED-3/6W / 700 mA - 4000 K673.580EC3.90
185-7596flood, very narrow beam [EE]LED-3/6W / 700 mA - 4000 K647.180EC3.90
185-7682symmetric, very narrow beam, sharp cut-off [EES]LED-3/6W / 700 mA - 3000 K700.780EC3.70
185-7682linear spread, very narrow beam, sharp cut-off [EES]LED-3/6W / 700 mA - 3000 K661.380EC3.90
185-7684symmetric, very narrow beam, sharp cut-off [EES]LED-3/6W / 700 mA - 4000 K74980EC3.70
185-7684linear spread, very narrow beam, sharp cut-off [EES]LED-3/6W / 700 mA - 4000 K56180EC3.90
185-9795symmetric, medium beam [M]LED-3/6W / 700 mA - 2700 K648.380EC3.70
185-9796symmetric, very narrow beam [EE]LED-3/6W / 700 mA - 2700 K605.880EC3.70
185-9797symmetric, very narrow beam, sharp cut-off [EES]LED-3/6W / 700 mA - 2700 K652.380EC3.70
185-7784symmetric, medium beam [M]LED-3/9W / 1050 mA - 2700 K920.580EC3.70
185-7736symmetric, medium beam [M]LED-3/9W / 1050mA - 3000 K965.480EC3.70
185-7740symmetric, medium beam [M]LED-3/9W / 1050mA - 4000 K1010.380EC3.70
185-7785symmetric, very narrow beam [EE]LED-3/9W / 1050 mA - 2700 K1009.580EC3.70
185-7737symmetric, very narrow beam [EE]LED-3/9W / 1050mA - 3000 K1058.880EC3.70
185-7741symmetric, very narrow beam [EE]LED-3/9W / 1050mA - 4000 K110880EC3.70
Showing 1 to 21 of 21 Entries
