ETC100 series

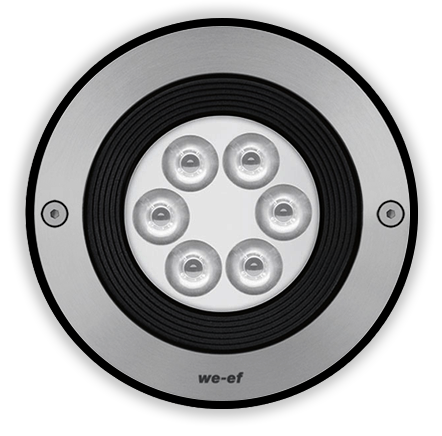

ETC120-FS LED

Static White

Choose a variant:

Fixed

Gimbal

Choose a family:

D120 ⌀65 mm | ETC109-FS LED D300 ⌀160 mm | ETC120-FS LED D300 ⌀160 mm | ETC129-FS LED D375 ⌀250 mm | ETC130-FS LED

Family Spec Sheet Installation Instructions More Downloads

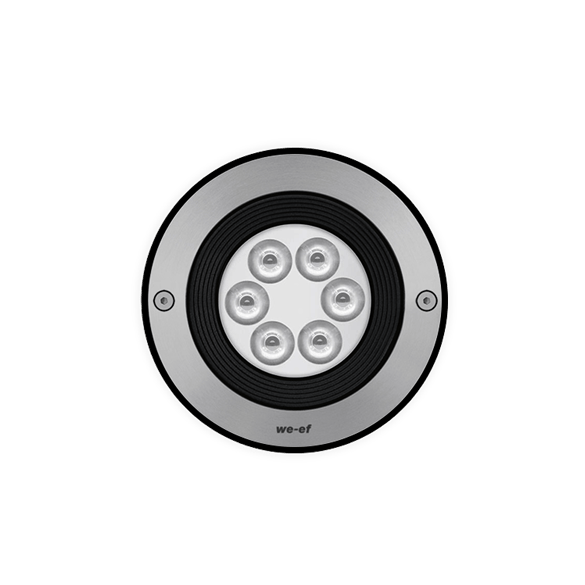

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Anti-wick technology, equipped with a cable gland and 1.5 meters of flexible, PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

Colours

Stainless Steel

Material

Body	Stainless steel construction
Fasteners	PCS hardware
Gasket	Silicone rubber gasket
Impact Protection	IK10+
Ingress Protection	IP69
Finish	-
Mounting	Luminaire installation blockout and sealable junction box included in supply

Electrical

Ballast / Driver	Integral EC electronic converter
Cable	Complete with cable gland and 1.5 m of flexible PVC-free cable

Additional Information

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Delivered Lumen	CRI	Specifications
					Text	PDF
185-7599	symmetric, medium beam [M]	LED-6/12W / 700 mA - 3000 K	1531.8	80
185-7600	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 3000 K	1497	80
185-7602	symmetric, medium beam [M]	LED-6/12W / 700 mA - 4000 K	1637.4	80
185-7603	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 4000 K	1600.3	80
185-7657	symmetric, wide beam [B]	LED-6/12W / 700 mA - 3000 K	1363.5	80
185-7658	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 3000 K	1624.7	80
185-7659	symmetric, wide beam [B]	LED-6/12W / 700 mA - 4000 K	1457.5	80
185-7660	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 4000 K	1736.8	80
185-7599	wallwash	LED-6/12W / 700 mA - 3000 K	1179.4	80
185-7602	wallwash	LED-6/12W / 700 mA - 4000 K	1260.8	80

Showing 1 to 10 of 10 entries.

Accessories

Control

Mounting Accessories

Optical Accessories

Part-ID	Title	Specifications
		Text	PDF
430-0013	DALI interface
