FLC100 Serie

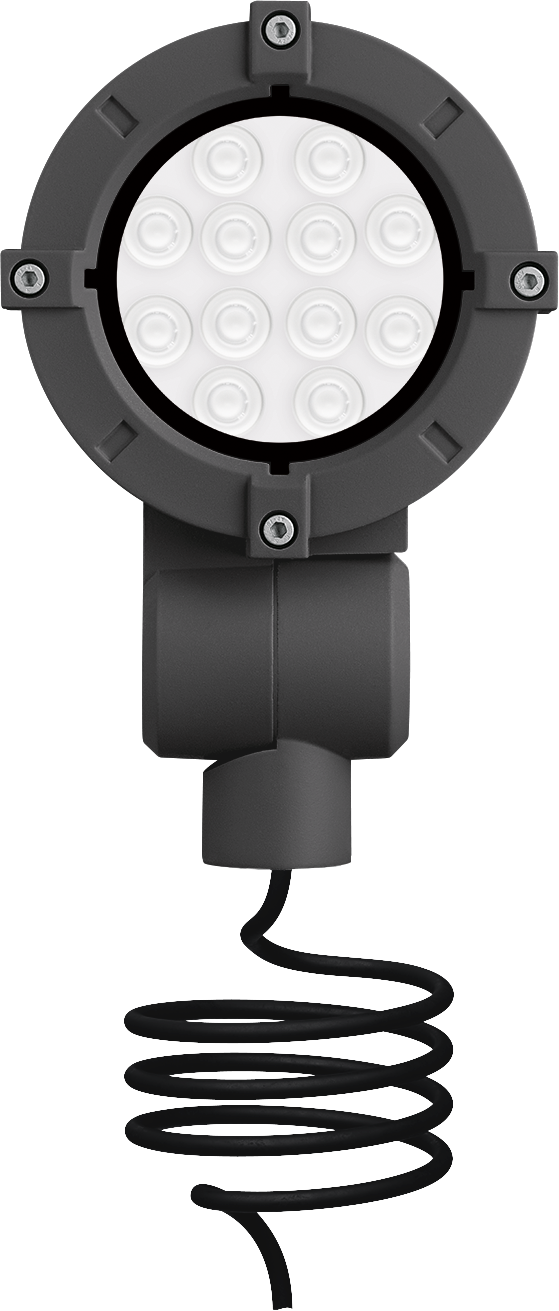

FLC131 LED REMOTE
Variantenauswahl:
IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Remote driver & cable (to length) ordered separately. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory-installed LED circuit board. Luminaire is factory-sealed and does not need to be opened during installation. Knuckle permits 350° horizontal and 90° vertical aiming of optics. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)
Farben
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Materialinformationen
| Gehäuse | Marine-grade die-cast aluminium alloy |
| Schrauben | PCS Polymer Coated Stainless Steel hardware |
| Dichtung | Silicone rubber gasket |
| Schlagfestigkeit | IK07 |
| Schutzart | IP66 |
| Oberflächenbehandlung | Powdercoat finish in Black RAL9004, White RAL9016, and Grey Metallic RAL9007 and Dark Bronze RAL8019 |
| Korrosionsbeständigkeit | 5CE |
| Installation | Suitable for installation over a 4” recessed junction box, or direct to short post, planted root, or pipe clamps |
Elektrische Informationen
| Netzgerät / Vorschaltgerät | Remote EC electronic converter (sold seperatly) |
| Netz | 120V-277V. 0-10V dimmable, to be specified with order. Ordered Seperately |
Weitere Informationen
| Ambient Temperature | Ta less than 25 deg C |
- - - -
Accessories
| Item | Download |
|---|---|
| Produktbilder | |
| Photometrie | |
| Installationsanleitung |
