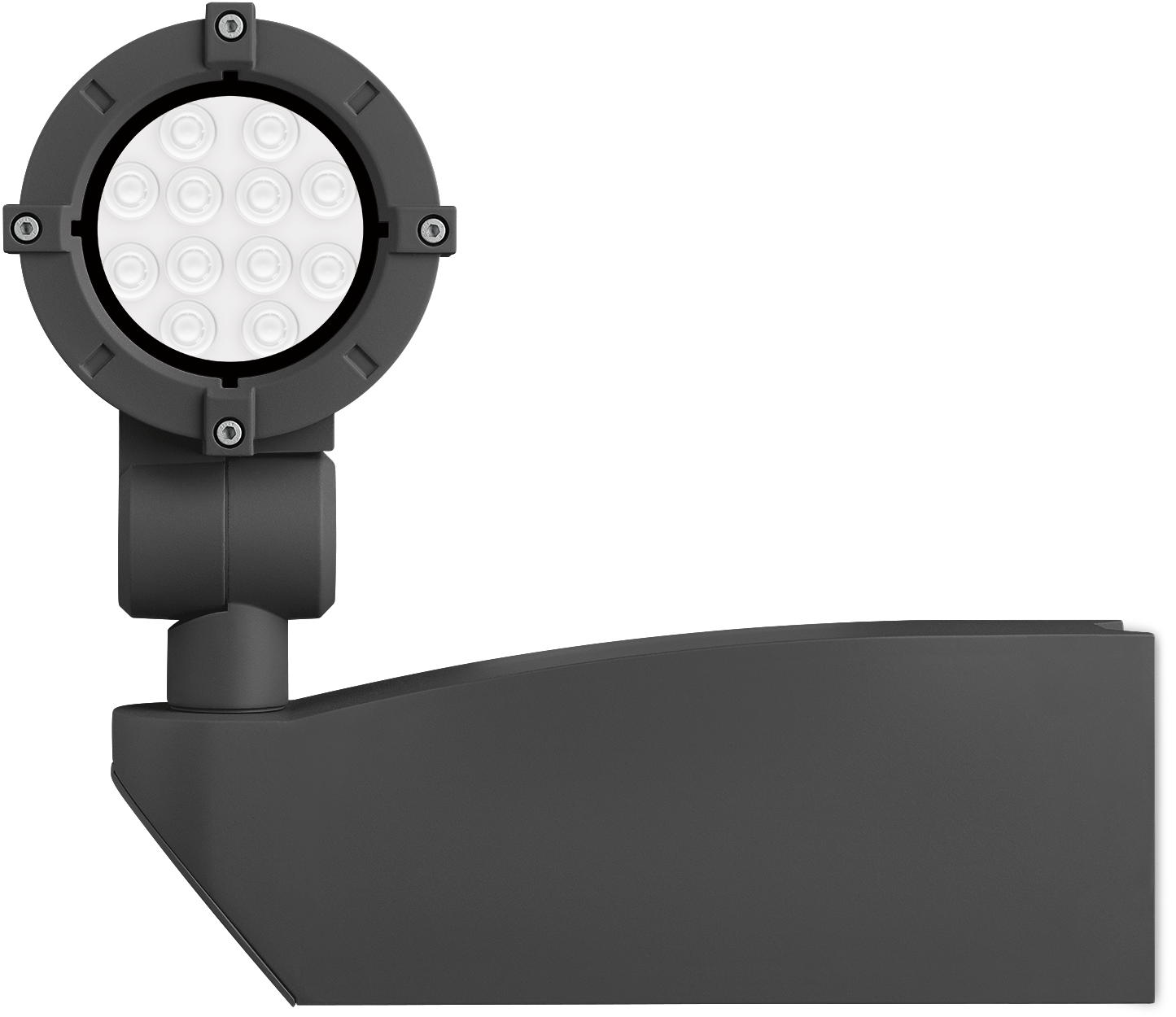

IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during the installation. 0-10V Dimming comes standard with luminaire. Knuckle permits 350° horizontal and 90° vertical aiming of optics. Specify product with 7 Digit product code – Finish Color. (Other accessories, such as mounting, optical, and electrical, must be specified separately.) Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessories)

FLC131 LED - Ceon Schematics
Colours
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter, thermally separated
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
145-6514symmetric, wide beam [W]LED-12/24W / 700 mA - 3000 K2709.280
145-6515symmetric, wide beam [W]LED-12/24W / 700 mA - 4000 K289680
145-6512symmetric, medium beam [M]LED-12/24W / 700 mA - 3000 K2998.680
145-6513symmetric, medium beam [M]LED-12/24W / 700 mA - 4000 K3205.480
145-6510symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 3000 K2883.780
145-6511symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 4000 K3082.580
145-6508symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 3000 K3077.980
145-6509symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 4000 K3290.280
145-6510linear spread, very narrow beam [VN]LED-12/24W / 700 mA - 3000 K2744.280
145-6511linear spread, very narrow beam [VN]LED-12/24W / 700 mA - 4000 K2933.480
145-6508linear spread, very narrow beam, 'sharp cut-off'LED-12/24W / 700 mA - 3000 K2865.980
145-6509linear spread, very narrow beam, 'sharp cut-off'LED-12/24W / 700 mA - 4000 K3063.580
145-6512wallwashLED-12/24W / 700 mA - 3000 K2405.680
145-6513wallwashLED-12/24W / 700 mA - 4000 K2571.580
Showing 1 to 14 of 14 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
146-0156Glare shield ES
