ASP500 series

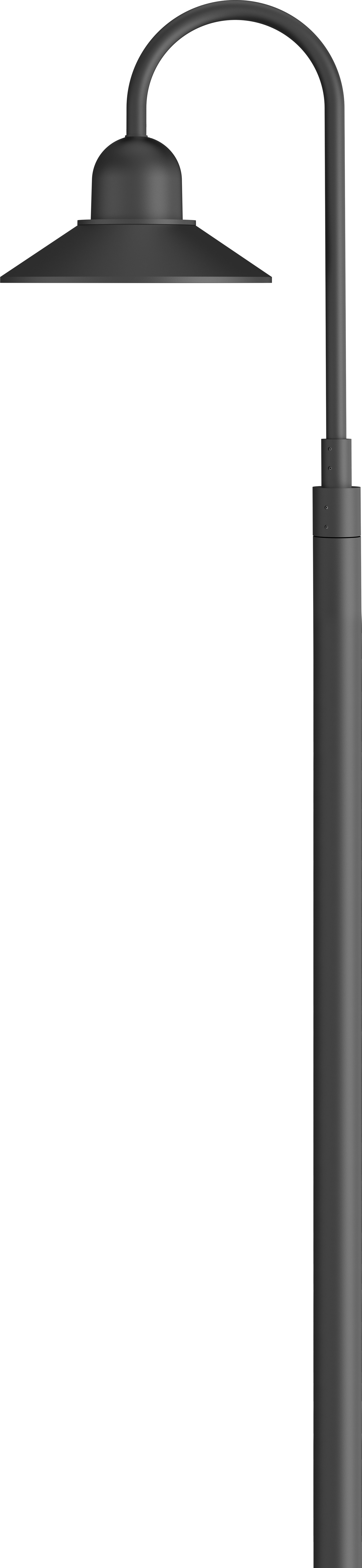

ASP530 LED

Static White

Choose a family:

H13.39" ⌀22.05" | ASP530 LED H14.76" ⌀22.05" | ASP534 LED H16.93" ⌀27.56" | ASP544 LED
Home
Products
Street and Area Lighting
ASP530 LED
Family Spec Sheet Installation Instructions More Downloads

IP66. Class I. IK08. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate main lens. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. Recommended mounting height 12-20 ft, depending on lamp type selected; brackets to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

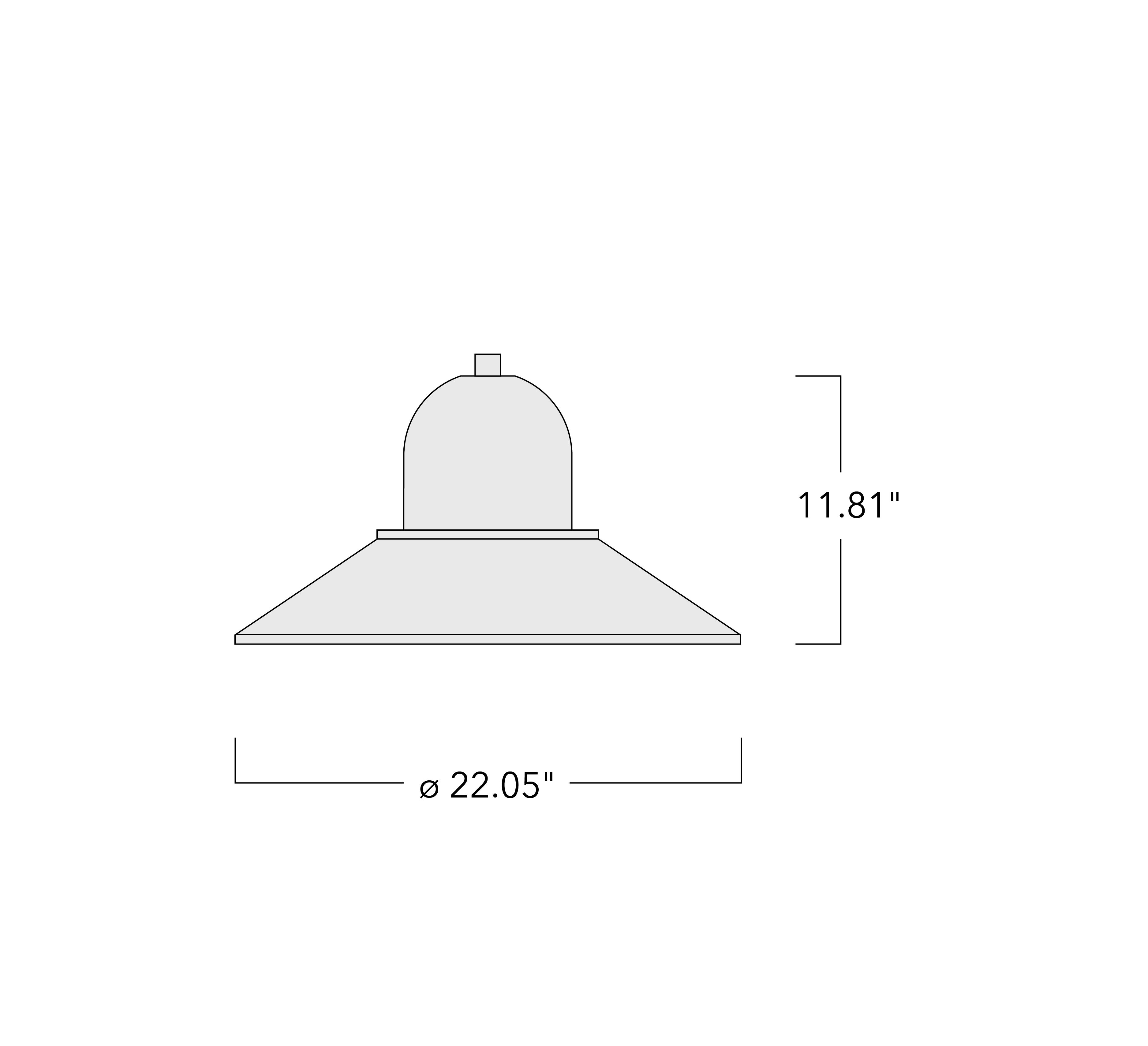

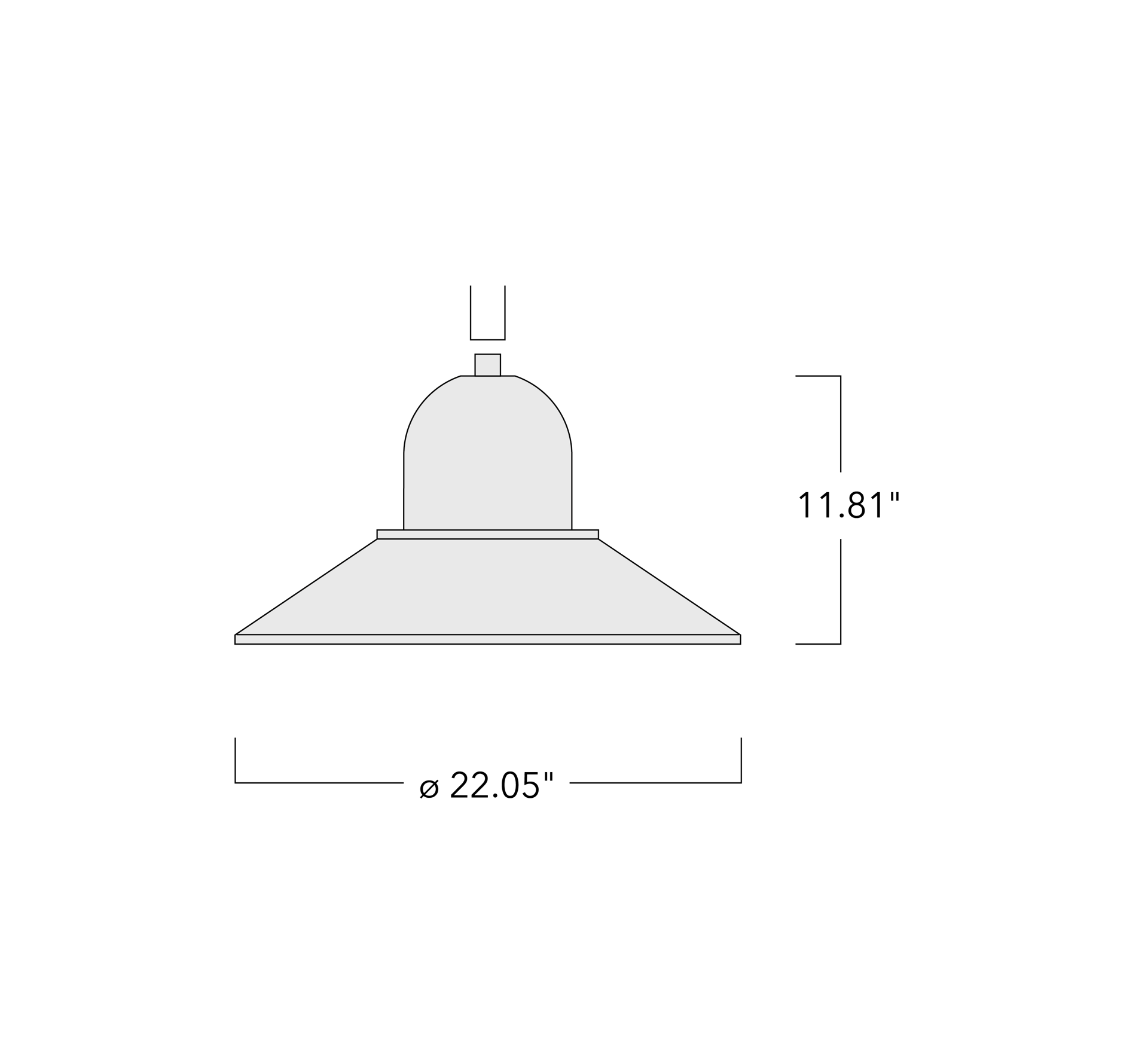

ASP530 LED Schematics
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel hardware
GasketSilicone rubber gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter
Cable30 feet of flexible 18/5 cable
Power Factor< 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
127-8253[S60] Type III ShortLED-12/24W / 700 mA - 4000 K3187.980
127-8254[S60] Type III ShortLED-12/24W / 700 mA - 3000 K2982.280
127-8255[S60] Type III ShortLED-24/48W / 700 mA - 4000 K6375.780
127-8256[S60] Type III ShortLED-24/48W / 700 mA - 3000 K5964.480
127-8257[S60] Type III ShortLED-36/72W / 700 mA - 4000 K9563.680
127-8258[S60] Type III ShortLED-36/72W / 700 mA - 3000 K8946.680
127-8301[S70] Type II ShortLED-12/24W / 700 mA - 4000 K3146.880
127-8302[S70] Type II ShortLED-12/24W / 700 mA - 3000 K2943.880
127-8303[S70] Type II ShortLED-24/48W / 700 mA - 4000 K6293.780
127-8304[S70] Type II ShortLED-24/48W / 700 mA - 3000 K5887.680
127-8305[S70] Type II ShortLED-36/72W / 700 mA - 4000 K9440.580
127-8306[S70] Type II ShortLED-36/72W / 700 mA - 3000 K8831.480
127-8307[A60] Type IV Very ShortLED-12/24W / 700 mA - 4000 K306080
127-8308[A60] Type IV Very ShortLED-12/24W / 700 mA - 3000 K2862.680
127-8309[A60] Type IV Very ShortLED-24/48W / 700 mA - 4000 K612080
127-8310[A60] Type IV Very ShortLED-24/48W / 700 mA - 3000 K5725.280
127-8311[A60] Type IV Very ShortLED-36/72W / 700 mA - 4000 K9180.180
127-8312[A60] Type IV Very ShortLED-36/72W / 700 mA - 3000 K8587.880
127-8313[S65] Type III MediumLED-12/24W / 700 mA - 4000 K325780
127-8314[S65] Type III MediumLED-12/24W / 700 mA - 3000 K3046.980
127-8315[S65] Type III MediumLED-24/48W / 700 mA - 4000 K651480
127-8316[S65] Type III MediumLED-24/48W / 700 mA - 3000 K6093.880
127-8317[S65] Type III MediumLED-36/72W / 700 mA - 4000 K9771.180
127-8318[S65] Type III MediumLED-36/72W / 700 mA - 3000 K9140.780
127-8319[R65] Type IV MediumLED-12/24W / 700 mA - 4000 K2980.880
127-8320[R65] Type IV MediumLED-12/24W / 700 mA - 3000 K2788.580
127-8321[R65] Type IV MediumLED-24/48W / 700 mA - 4000 K5961.780
127-8322[R65] Type IV MediumLED-24/48W / 700 mA - 3000 K557780
127-8323[R65] Type IV MediumLED-36/72W / 700 mA - 4000 K8942.580
127-8324[R65] Type IV MediumLED-36/72W / 700 mA - 3000 K8365.580
127-8360[P65] Type II MediumLED-12/24W / 700 mA - 3000 K2916.380
127-8361[P65] Type II MediumLED-12/24W / 700 mA - 4000 K3117.580
127-8362[P65] Type II MediumLED-24/48W / 700 mA - 3000 K5832.780
127-8363[P65] Type II MediumLED-24/48W / 700 mA - 4000 K6234.980
127-8364[P65] Type II MediumLED-36/72W / 700 mA - 3000 K874980
127-8365[P65] Type II MediumLED-36/72W / 700 mA - 4000 K9352.480
Showing 1 to 36 of 36 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
300-9162BA0-420 Wall bracket, single
300-9163BA1-420 Pole bracket, single
300-9164BA2-420 Pole bracket, double
300-9165BA3-420 Pole bracket, triple
