DOC200 series

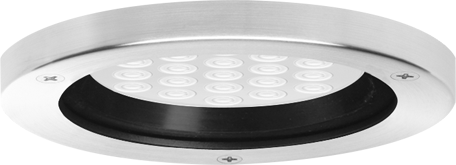

DOC240-GB LED Stainless Steel

Static White

Choose a variant:

Fixed
Gimbal

Choose a family:

D8.03" ⌀9.84" | DOC240-GB LED D8.03" ⌀9.84" | DOC240-GB LED Stainless Steel
Home
Products
Ceiling Luminaires
DOC240-GB LED Stainless Steel
Family Spec Sheet Installation Instructions More Downloads

IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. Two cable entries. PMMA LED lens array. Integral driver in thermally separated compartment. Factory-installed circuit board. 0-10V Dimming comes standard with luminaire. Frame with safety catch. Gimbal mounted, 0-30° tiltable and 355° rotatable. Suitable for installation in non-insulated ceiling. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

DOC240-GB LED Stainless Steel Schematics
Colours
Stainless Steel
Material
BodyLuminaire body constructed in die cast aluminum.
FastenersPCS polymer coated stainless steel
GasketSilicone rubber gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishNatural stainless steel
Corrosion Protection5CE
MountingSuitable for installation in non-insulated ceiling, using galvanized mounting tray and hanger bars. Maximum ceiling thickness 1.5 in.
Electrical
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeLED >60,000 h Ta 25°(L70/B10) Control gear >50,000 h Ta 25°

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
134-6210symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/18W / 500 mA - 3000 K2281.980
134-6210linear spread, very narrow beam, 'sharp cut-off'LED-12/18W / 500 mA - 3000 K2124.780
134-6214symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/18W / 500 mA - 4000 K2441.180
134-6214linear spread, very narrow beam, 'sharp cut-off'LED-12/18W / 500 mA - 4000 K2272.980
134-6213symmetric, very narrow beam [VN]LED-12/18W / 500 mA - 4000 K228780
134-6213linear spread, very narrow beamLED-12/18W / 500 mA - 4000 K2176.480
134-6209symmetric, very narrow beam [VN]LED-12/18W / 500 mA - 3000 K2137.980
134-6209linear spread, very narrow beamLED-12/18W / 500 mA - 3000 K2034.580
134-6212symmetric, medium beam [M]LED-12/18W / 500 mA - 4000 K2378.280
134-6208symmetric, medium beam [M]LED-12/18W / 500 mA - 3000 K2223.180
134-6211symmetric, wide beam [W]LED-12/18W / 500 mA - 3000 K2008.580
134-6215symmetric, wide beam [W]LED-12/18W / 500 mA - 4000 K2148.780
134-6208linear spread, medium beam [M]LED-12/18W / 500 mA - 3000 K2183.280
134-6212linear spread, medium beam [M]LED-12/18W / 500 mA - 4000 K2335.580
Showing 1 to 14 of 14 entries.
