DOC100/200 | Fixed

Static White Darklight Darklight & Tunable White

155 mm

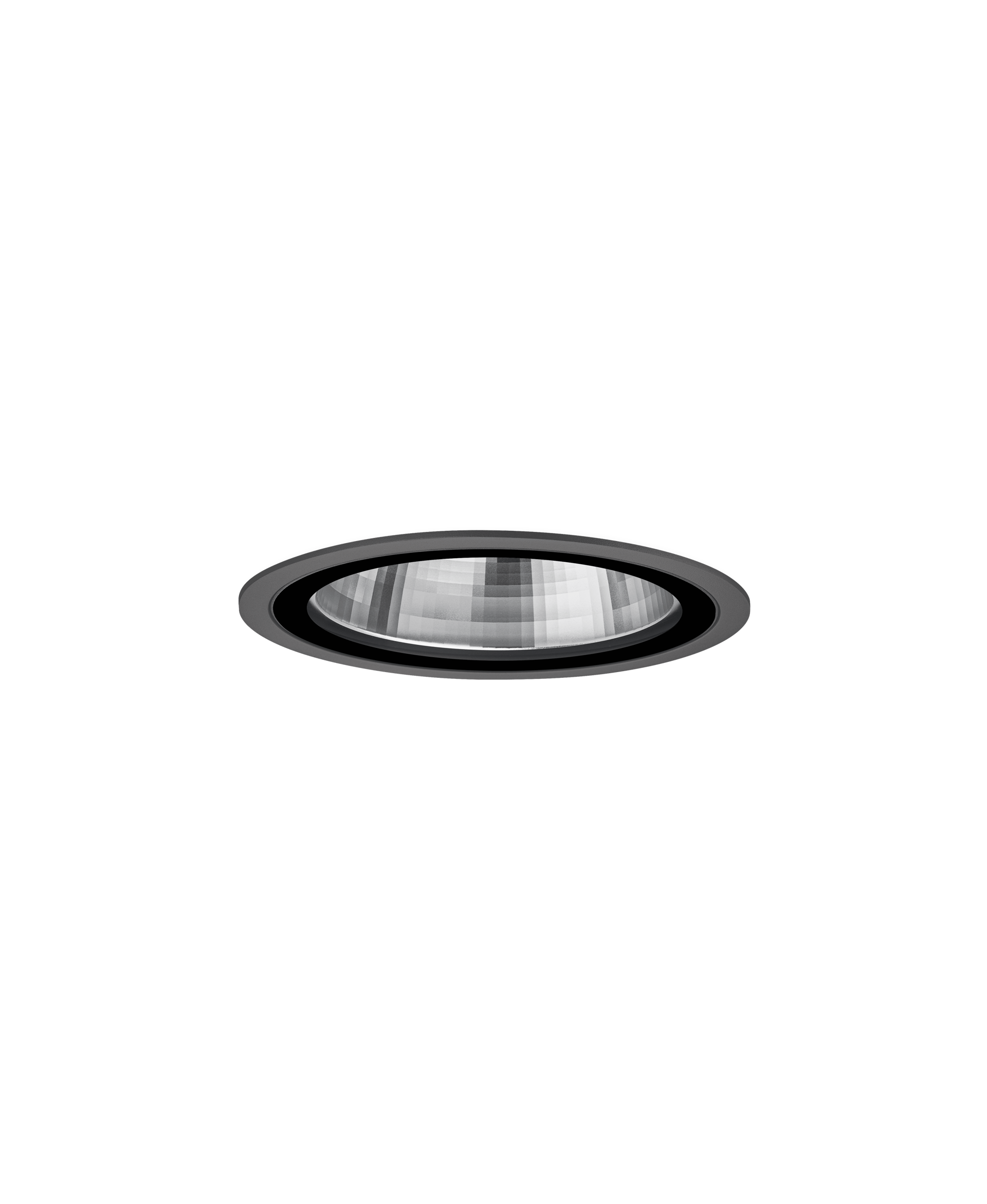

DOC140-FT LED [For Remodel]

Family Spec Sheet

DOC140-FT LED for remodel projects. For new construction, see DOC140-FT LED [New Construction] version. IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Integral driver, thermally separated. Darklight anodized aluminum reflector for superior illumination and glare control. Factory installed LED circuit board. DMX interface. A maximum of one internal optical accessory, to be specified at time of ordering. This product is suitable for insulated ceilings (IC Rated). Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

Colors

RAL9004 Black

RAL9006 White

RAL9007 Grey Metallic

RAL7016 Anthracite grey

RAL9016 White

RAL8019 Dark Bronze

Powdercoat finish available in 35 different colours

RAL9016 Traffic white

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS Polymer Coated Stainless Steel Hardware
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK07
Ingress Protection	IP66
Finish
Corrosion Protection	5CE
Mounting	A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings. To be ordered separately.

Electrical

Ballast / Driver	Integral EC electronic converter in thermally-separated compartment
Cable
Power Factor	> 0.9
Power Supply	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge Protection

Additional Information

Lifetime	Ta=25°/40° L70B50 > 50000h

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
134-1798	symmetric, wide beam [W]	LED-FT-24W (3000K)	2292.2	80
134-1799	symmetric, wide beam [W]	LED-FT-24W (4000K)	2392.6	80
134-1804	symmetric, wide beam [W]	LED-FT-37W (3000K)	3369.7	80
134-1805	symmetric, wide beam [W]	LED-FT-37W (4000K)	3514.9	80
134-1800	symmetric, medium beam [M]	LED-FT-24W (3000K)	2333.7	80
134-1801	symmetric, medium beam [M]	LED-FT-24W (4000K)	2435.9	80
134-1806	symmetric, medium beam [M]	LED-FT-37W (3000K)	3430.6	80
134-1807	symmetric, medium beam [M]	LED-FT-37W (4000K)	3578.5	80
134-1802	symmetric, narrow beam [E]	LED-FT-24W (3000K)	1290.2	80
134-1803	symmetric, narrow beam [E]	LED-FT-24W (4000K)	1346.7	80
134-1808	symmetric, narrow beam [E]	LED-FT-37W (3000K)	1896.6	80
134-1809	symmetric, narrow beam [E]	LED-FT-37W (4000K)	1978.4	80
134-1925	symmetric, wide beam [W]	LED-FT-24W (2700K)	2139	80
134-1926	symmetric, wide beam [W]	LED-FT-37W (2700K)	3237.6	80
134-1927	symmetric, medium beam [M]	LED-FT-24W (2700K)	2177.7	80
134-1928	symmetric, medium beam [M]	LED-FT-37W (2700K)	3296.2	80
134-1929	symmetric, narrow beam [E]	LED-FT-24W (2700K)	1204	80
134-1930	symmetric, narrow beam [E]	LED-FT-37W (2700K)	1822.3	80

Showing 1 to 18 of 18 Entries
