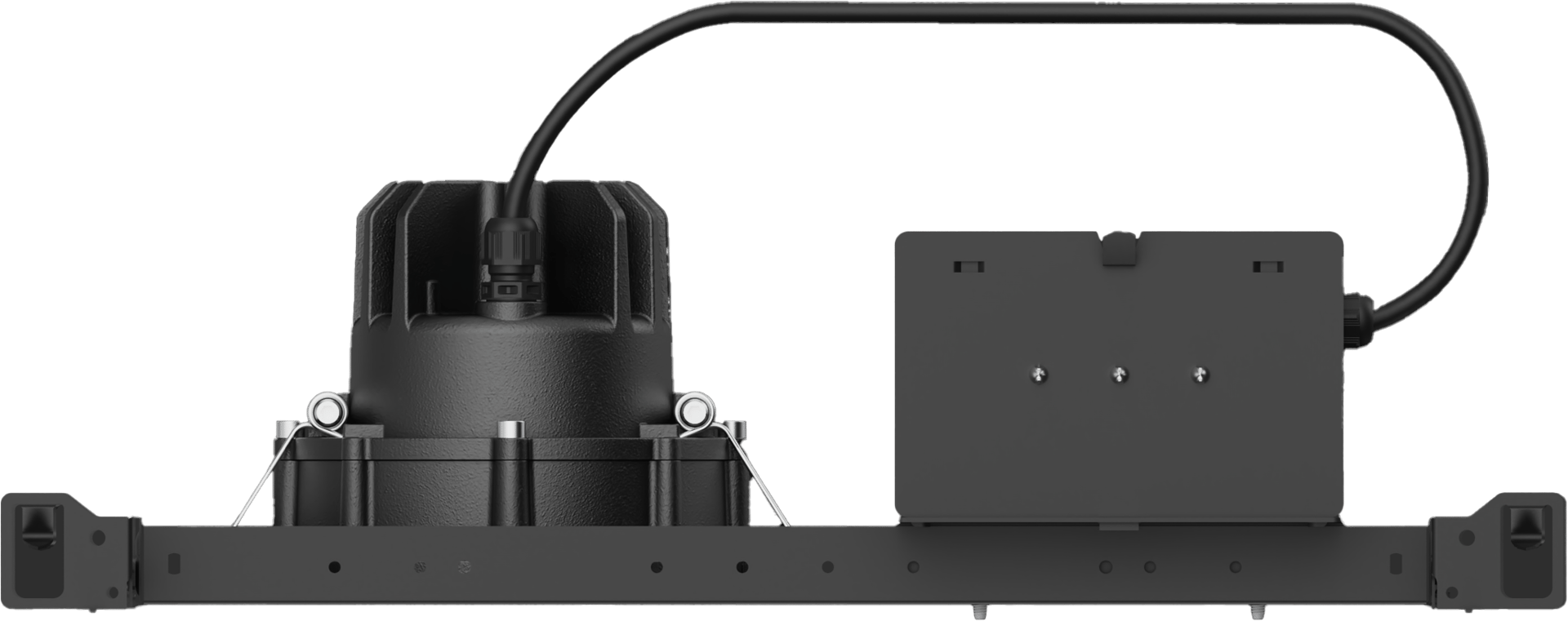

![DOC120-FT LED for new construction. For remodel projects, see DOC120-FT LED [For Remodel] version.
IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Integral driver in thermally separated compartment. Darklight anodized aluminum reflector for superior illumination and glare control. Factory-installed LED circuit board. DMX interface. The luminaire is factory-sealed and does not need to be opened during the installation.
A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately.
A maximum of one internal optical accessory, to be specified at time of ordering.
Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately.
Example: XXX-XXXX – 9004 (Black)
+ XXX-XXXX (Accessory 1)](/cdn-cgi/image/format=auto,width=1920/https://we-ef.canto.global/direct/image/c871kgugb54f34d7164vh6ie0m/xsy08Fm_J4OIF-aw0XyWCdMRz7Y/original?content-type=image%2Fpng&name=DOC120_FT_01_newconstruction.png)
DOC120-FT LED [New Construction]
DOC120-FT LED for new construction. For remodel projects, see DOC120-FT LED [For Remodel] version. IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Integral driver in thermally separated compartment. Darklight anodized aluminum reflector for superior illumination and glare control. Factory-installed LED circuit board. DMX interface. The luminaire is factory-sealed and does not need to be opened during the installation. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately. A maximum of one internal optical accessory, to be specified at time of ordering. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

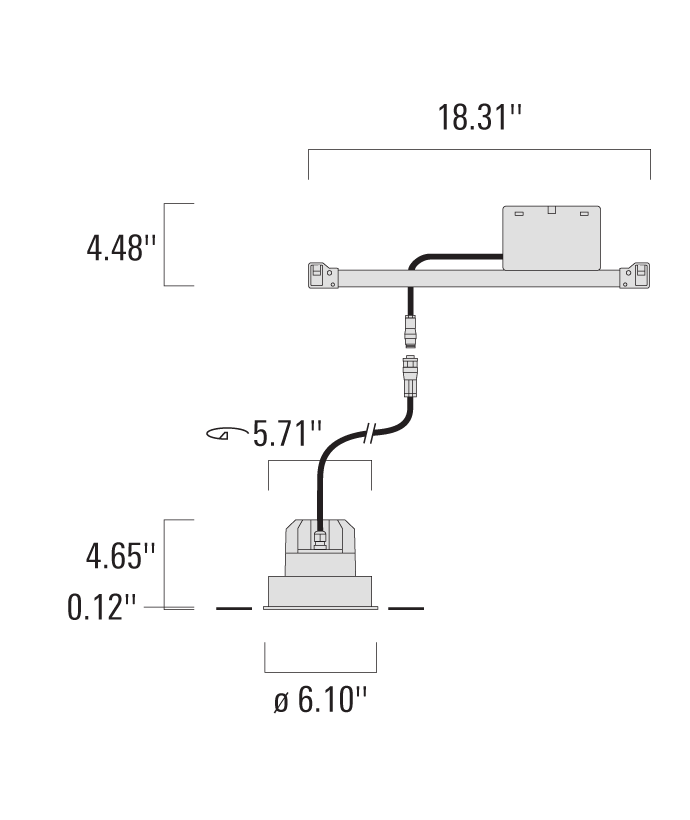

![DOC120-FT LED [New Construction] Schematics](https://api.we-ef.com/files/image/luminaire_families/features_image/MW_D_US_DOC120-FT.PNG)
Colors
Material
| Impact Protection | IK07 |
| Ingress Protection | IP66 |
Electrical
Additional Information
| Item | Download |
|---|
