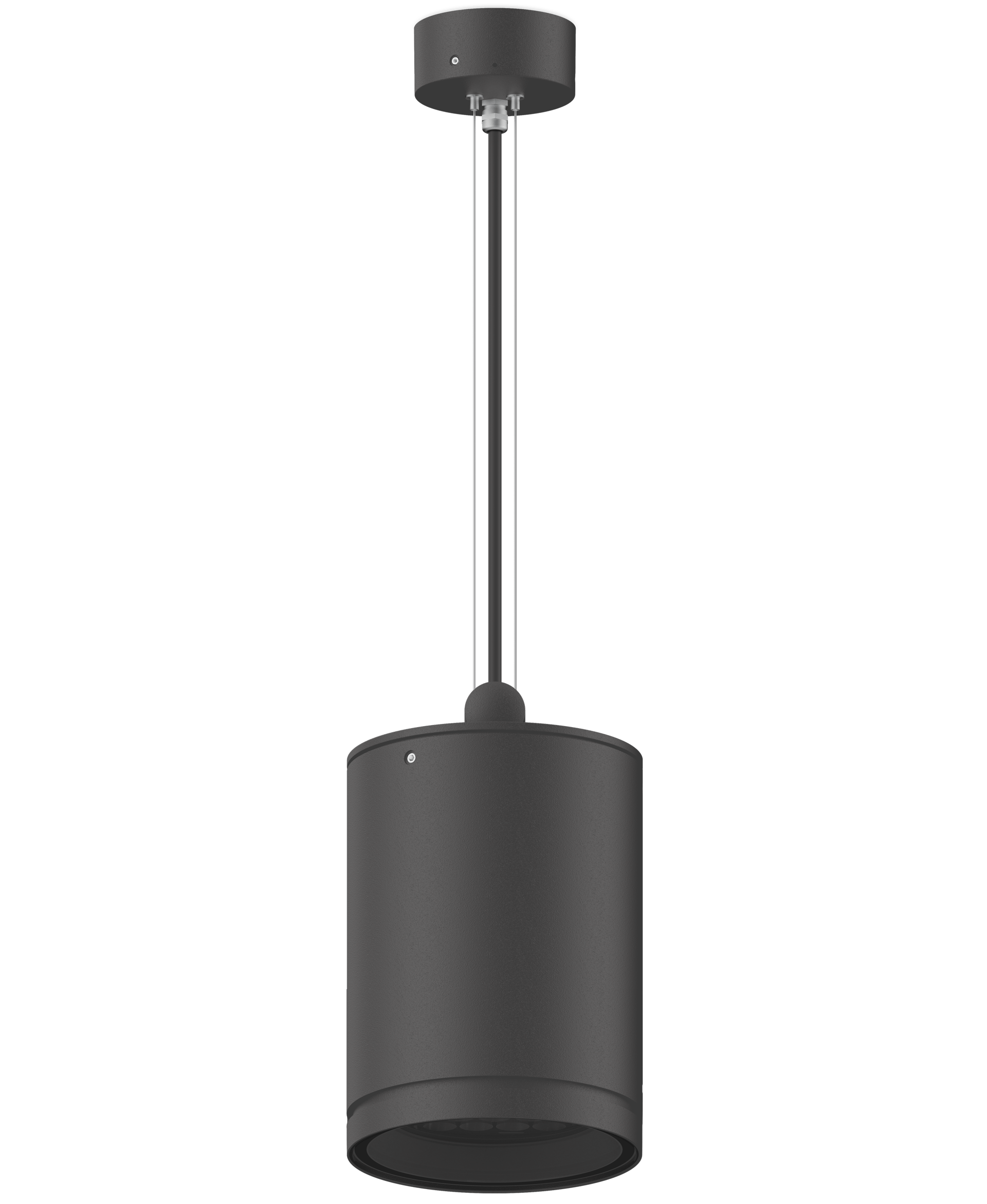

IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Two cable entries. Ceiling mount through canopy. Cable suspension 1.5 - 5 ft., to be specified at time at ordering. Integral driver in thermally separated compartment. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. Tunable White technology. DALI interface. The luminaire is factory-sealed and does not need to be opened during installation. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

DAS140-PM TW LED PENDANT MOUNT TUNABLE WHITE Schematics
Colors
Material

Body: Marine-grade, all aluminium construction

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK07

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting: Ceiling mount through canopy, drop guard through wire rope. Factory sealed till canopy. Cable suspension 0.5 m, ceiling mount through canopy. Longer cable suspension available on request

Electrical

Ballast / Driver: DALI

Cable: Two cable entries on canopy for trough wiring

Power Factor:

Power Supply:

Surge Protection:

Additional Information

:

:

:

Light Distribution

Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
134-2319symmetric, medium beam [M]LED-24/42W / 325 mA – 2700-6000K4605.880
134-2318symmetric, wide beam [W]LED-24/42W / 325 mA – 2700-6000K4340.780
134-2320symmetric, narrow beam [E]LED-24/42W / 325 mA – 2700-6000K4789.480
Showing 1 to 3 of 3 Entries
