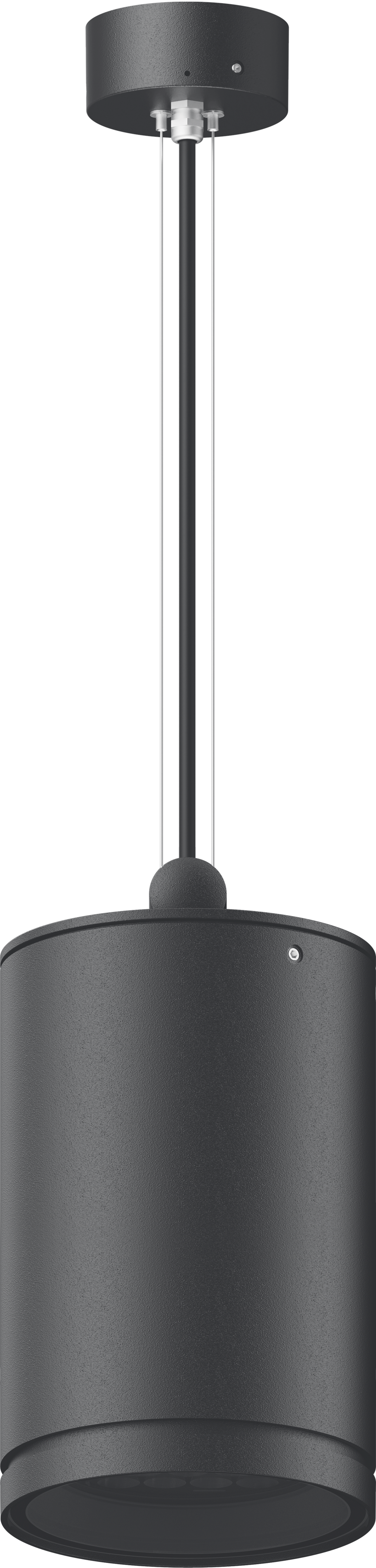

DAS100

IP66, Class I. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Silicone CCG® gasket. Safety glass lens. Two cable entries. Ceiling mount through canopy. Cable suspension 0.5 - 1.5 m. To be specified at time at ordering. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. Factory installed LED circuit board. Tunable White Technology. The luminaire is factory-sealed and does not need to be opened during installation. Other standardised housing lengths available on request.

Colors

Material

Body: Marine-grade, all aluminium construction

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK07

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting: Ceiling mount through canopy, drop guard through wire rope. Factory sealed till canopy. Cable suspension 0.5 m, ceiling mount through canopy. Longer cable suspension available on request

Electrical

Ballast / Driver: DALI

Cable: Two cable entries on canopy for trough wiring

Power Factor:

Power Supply:

Surge Protection:

Additional Information

Light Distribution

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
134-2319	symmetric, medium beam [M]	LED-24/42W / 325 mA – 2700-6000K	4605.8	80
134-2318	symmetric, wide beam [B]	LED-24/42W / 325 mA – 2700-6000K	4340.7	80
134-2320	symmetric, narrow beam [E]	LED-24/42W / 325 mA – 2700-6000K	4789.4	80

Showing 1 to 3 of 3 Entries

Accessories

Optical Accessories

Mounting Accessories

	Part-ID	Title	PDF	Open Data
Please select an accessory category

Item	Download	Mail Link
