DAC240 LED

DAC240 LED

Family Spec Sheet

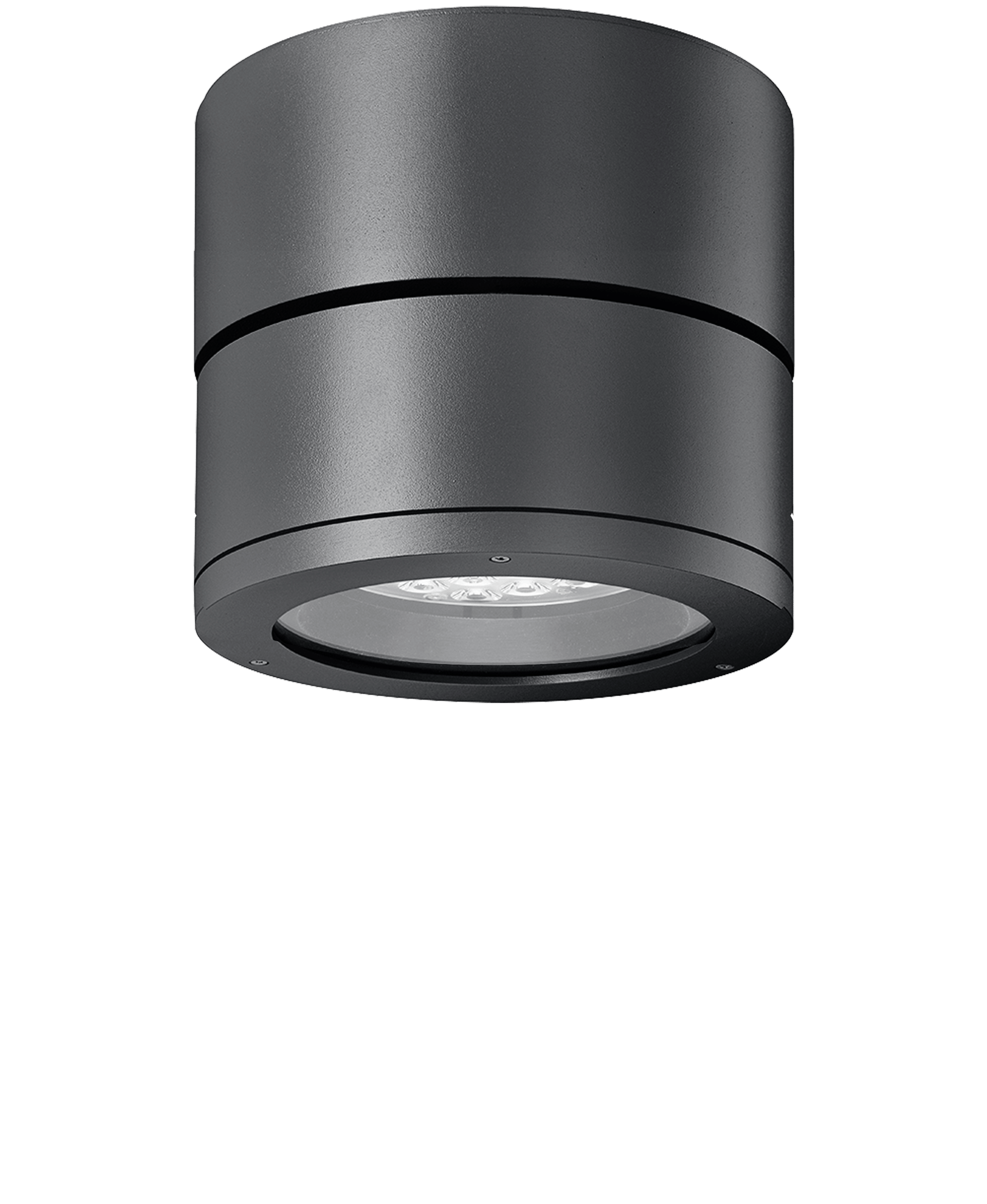

IP65. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Frame with safety catch. Suitable for installation over recessed junction box. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

DAC240 LED Schematics
Colors
Material

Body: Marine-grade die-cast aluminium alloy

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone rubber gasket

Impact Protection: IK07

Ingress Protection: IP65

Finish: Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.

Corrosion Protection: 5CE

Mounting:

Electrical

Ballast / Driver: Integral EC electronic converter in thermally-separated compartment

Cable: Two cable entries

Power Factor:

Power Supply: Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Surge Protection:

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

:

:

Light Distribution

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
134-1432symmetric, wide beam [W]LED-24/48W / 700 mA - 3000 K5388.580
134-1433symmetric, medium beam [M]LED-24/48W / 700 mA - 3000 K6047.280
134-1434symmetric, very narrow beam [VN]LED-24/48W / 700 mA - 3000 K5986.180
134-1435symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/48W / 700 mA - 3000 K6442.780
134-1436symmetric, wide beam [W]LED-24/48W / 700 mA - 4000 K5760.180
134-1437symmetric, medium beam [M]LED-24/48W / 700 mA - 4000 K6464.280
134-1438symmetric, very narrow beam [VN]LED-24/48W / 700 mA - 4000 K6398.980
134-1439symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/48W / 700 mA - 4000 K688780
134-1437wallwash [A20]LED-24/48W / 700 mA - 4000 K5186.680
134-1433wallwash [A20]LED-24/48W / 700 mA - 3000 K4851.980
134-1433linear spread, medium beam [M]LED-24/48W / 700 mA - 3000 K5508.380
134-1437linear spread, medium beam [M]LED-24/48W / 700 mA - 4000 K5888.180
