DAC100 | Gimbal

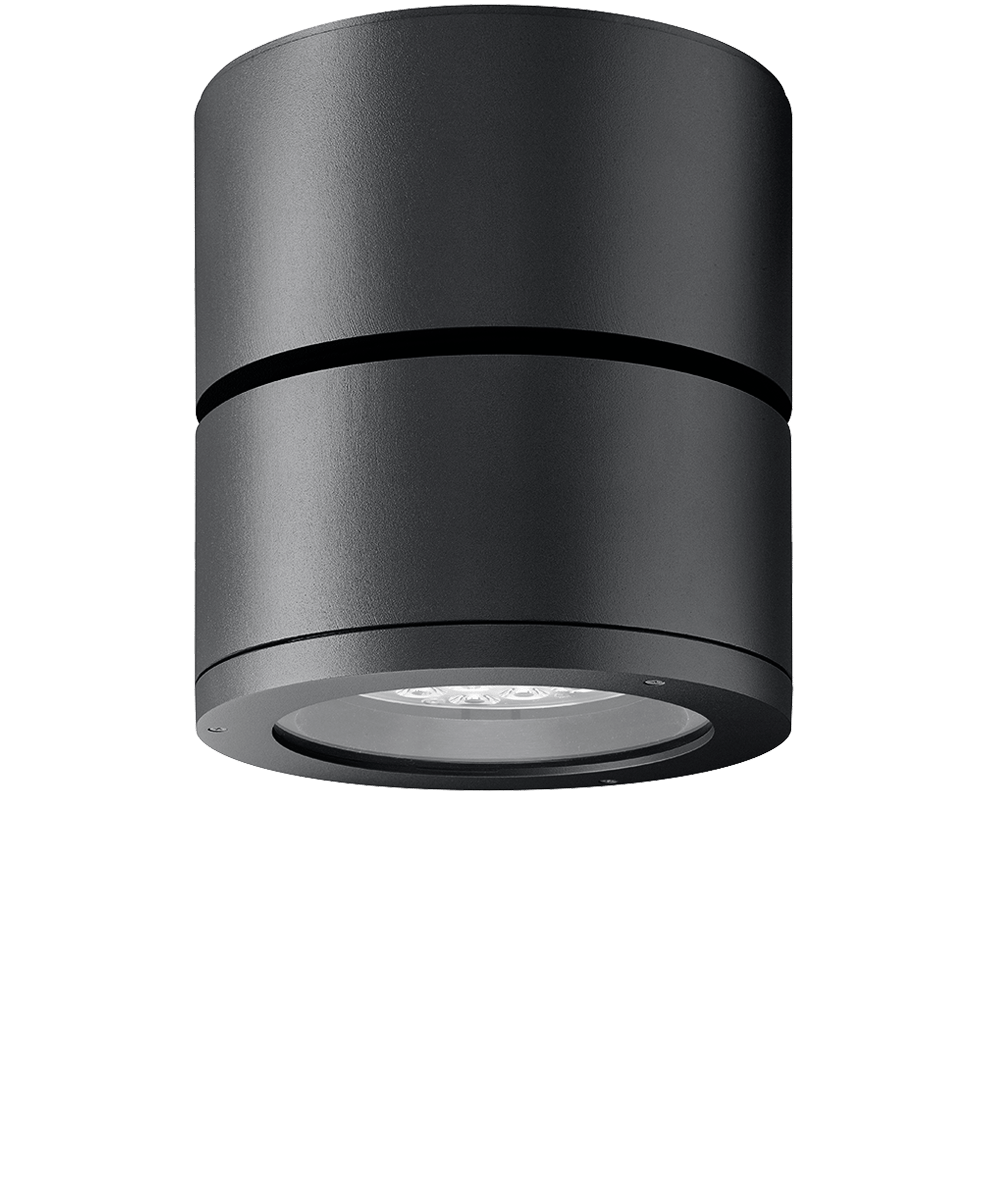

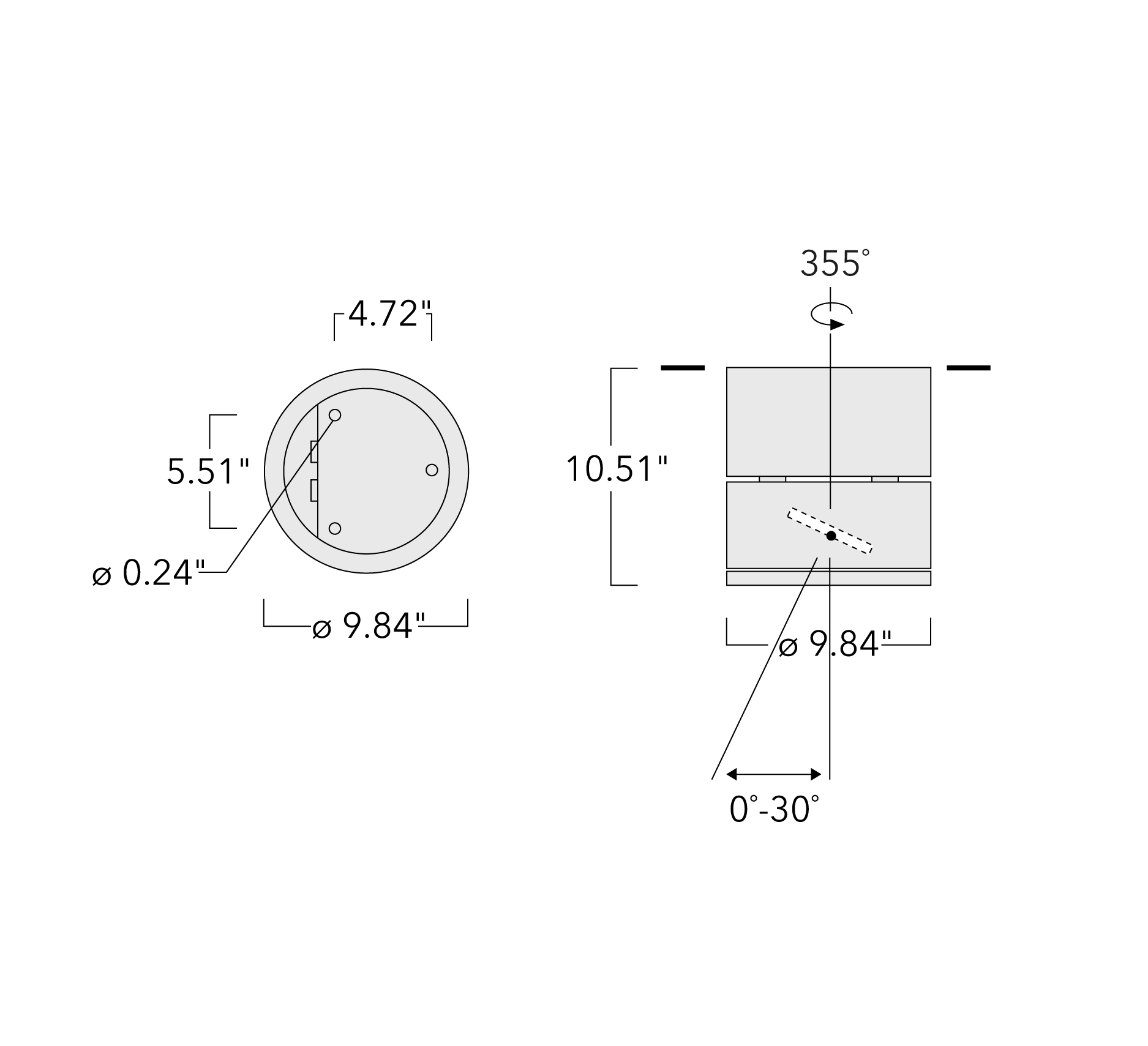

IP65. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Frame with safety catch. Gimbal mounted, 0-30° tiltable and 355° rotatable. Suitable for installation over recessed junction box. A maximum of one internal optical accessory. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

Colors

RAL9004 Black

RAL9006 White

RAL9007 Grey Metallic

RAL7016 Anthracite grey

RAL9016 White

RAL8019 Dark Bronze

Powdercoat finish available in 35 different colours

RAL9016 Traffic white

Material

Body	Marine-grade die-cast aluminium alloy
Fasteners	PCS Polymer Coated Stainless Steel Hardware
Gasket	Silicone rubber gasket
Impact Protection	IK07
Ingress Protection	IP65
Finish	Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.
Corrosion Protection	5CE
Mounting

Electrical

Ballast / Driver	Integral EC electronic converter in thermally-separated compartment
Cable	Two cable entries
Power Factor
Power Supply	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge Protection

Additional Information

Lifetime	Ta=25°/40° L90B10 > 90000h

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
134-1596	symmetric, wide beam [W]	LED-12/18W / 500 mA - 3000 K	1997.5	80
134-1597	symmetric, wide beam [W]	LED-12/18W / 500 mA - 4000 K	2136.8	80
134-1598	symmetric, medium beam [M]	LED-12/18W / 500 mA - 3000 K	2241.6	80
134-1599	symmetric, medium beam [M]	LED-12/18W / 500 mA - 4000 K	2398	80
134-1602	symmetric, very narrow beam [VN]	LED-12/18W / 500 mA - 3000 K	2137.9	80
134-1603	symmetric, very narrow beam [VN]	LED-12/18W / 500 mA - 4000 K	2287	80
134-1605	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-12/18W / 500 mA - 3000 K	2388.2	80
134-1606	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-12/18W / 500 mA - 4000 K	2554.9	80
134-1600	wallwash [A20]	LED-12/18W / 500 mA - 3000 K	1798.6	80
134-1601	wallwash [A20]	LED-12/18W / 500 mA - 4000 K	1924	80
134-1598	linear spread, medium beam [M]	LED-12/18W / 500 mA - 3000 K	2041.9	80
134-1599	linear spread, medium beam [M]	LED-12/18W / 500 mA - 4000 K	2184.3	80

Showing 1 to 12 of 12 Entries
