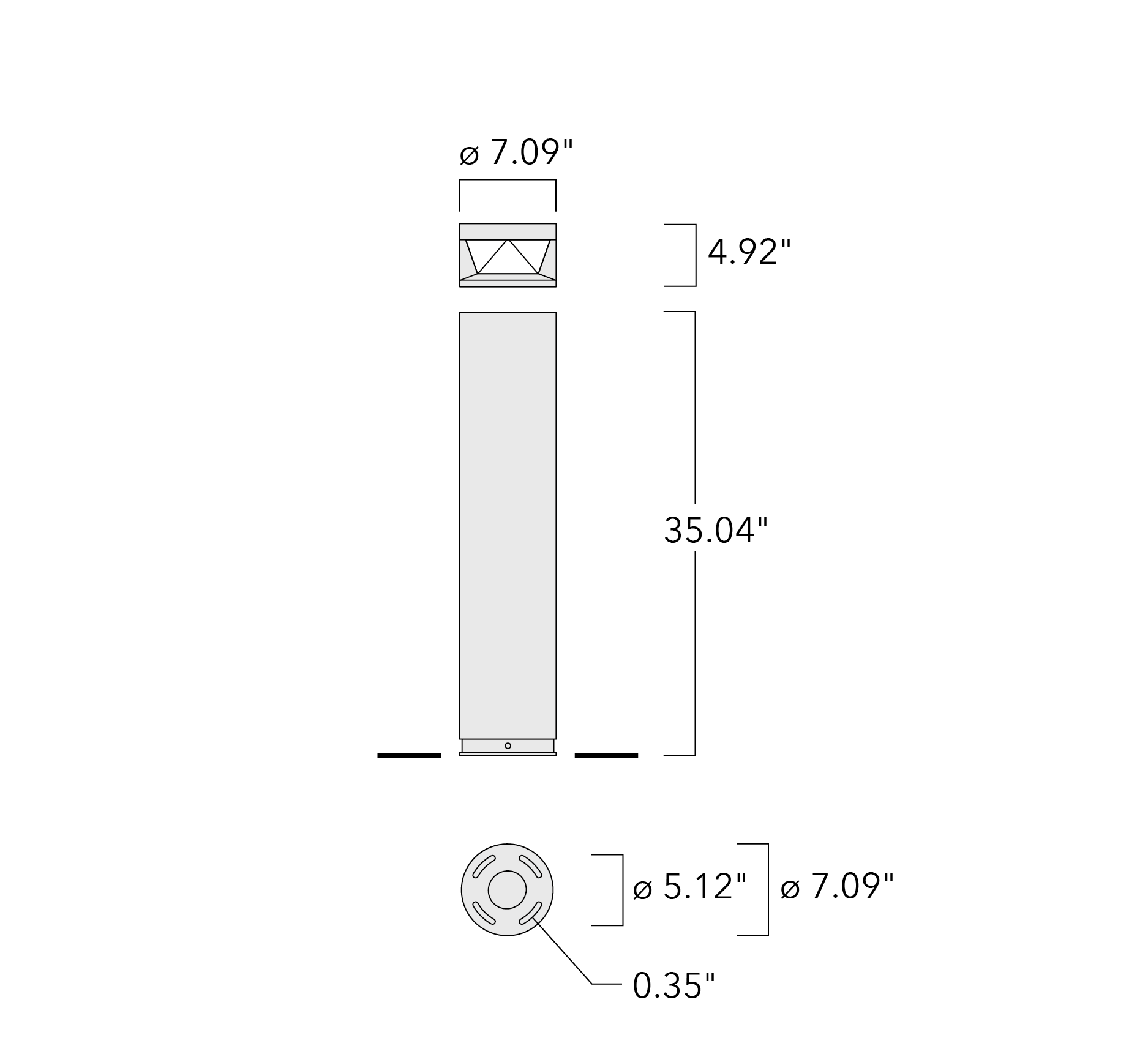

KTY234 LED II

(1000 mm)

Back
Family Spec Sheet
600 mm 600 mm
1.000 mm 1.000 mm

IP66. Class I. IK10. Marine-grade, all aluminum construction. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate lens, CAD-optimized indirect optics for superior illumination and glare control. Integral driver in thermally separated compartment. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire.
Luminaire spacing up to 35 ft; ideal for pathway lighting applications. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

Eigenschaften

Material

GehäuseMarine-grade all-aluminum construction
SchraubenPCS Polymer Coated Stainless Steel Hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK10
SchutzartIP66
AbdeckungPowder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019
Korrosionsschutz5CE
Befestigung

Elektrik

LED TreiberIntegral EC electronic converter
Kabel
Leistungsfaktor
NetzIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
ÜberspannungsschutzIntegral 10kV Surge Protector

Weitere Eigenschaften

LifetimeTa=25°/40° L90B10 > 90000h
Lead TimeThis is a new product release and may have an extended lead time.
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

CRI

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
114-9091symmetric distribution [C60]LED-6/18W / 1050 mA - 3000 K82580electronic gear19.80
114-9093symmetric distribution [C60]LED-6/26W / 1400 mA - 3000 K1055.380electronic gear19.80
114-9092symmetric distribution [C60]LED-6/18W / 1050 mA - 4000 K863.480electronic gear19.80
114-9085rectangular, side throw [R65]LED-3/9W / 1050 mA - 3000 K519.780electronic gear19.80
114-9086rectangular, side throw [R65]LED-3/9W / 1050 mA - 4000 K543.980electronic gear19.80
114-9094symmetric distribution [C60]LED-6/26W / 1400 mA - 4000 K1103.380electronic gear19.80
114-9087rectangular, side throw [R65]LED-3/13W / 1400 mA - 3000 K664.780electronic gear19.80
114-9088rectangular, side throw [R65]LED-3/13W / 1400 mA - 4000 K694.980electronic gear19.80
114-9091asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 3000 K450.480electronic gear19.80
114-9092asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 4000 K471.380electronic gear19.80
114-9093asymmetric, forward-throw, one-sidedLED-6/26W / 1400 mA - 3000 K576.180electronic gear19.80
114-9094asymmetric, forward-throw, one-sidedLED-6/26W / 1400 mA - 4000 K602.380electronic gear19.80
114-9192symmetric distribution [C60]LED-6/18W / 1050 mA - 2700 K786.780electronic gear19.80
114-9193symmetric distribution [C60]LED-6/26W / 1400 mA - 2700 K997.780electronic gear19.80
114-9095rectangular, side throw [R65]LED-3/9W / 1050 mA - 2700 K495.580electronic gear19.80
114-9096rectangular, side throw [R65]LED-3/13W / 1400 mA - 2700 K628.580electronic gear19.80
117-6207Blank Head [BLANK]BLANK HeadNABLANK Head
Showing 1 to 17 of 17 Entries
