KTY234 LED I

Back
Family Spec Sheet

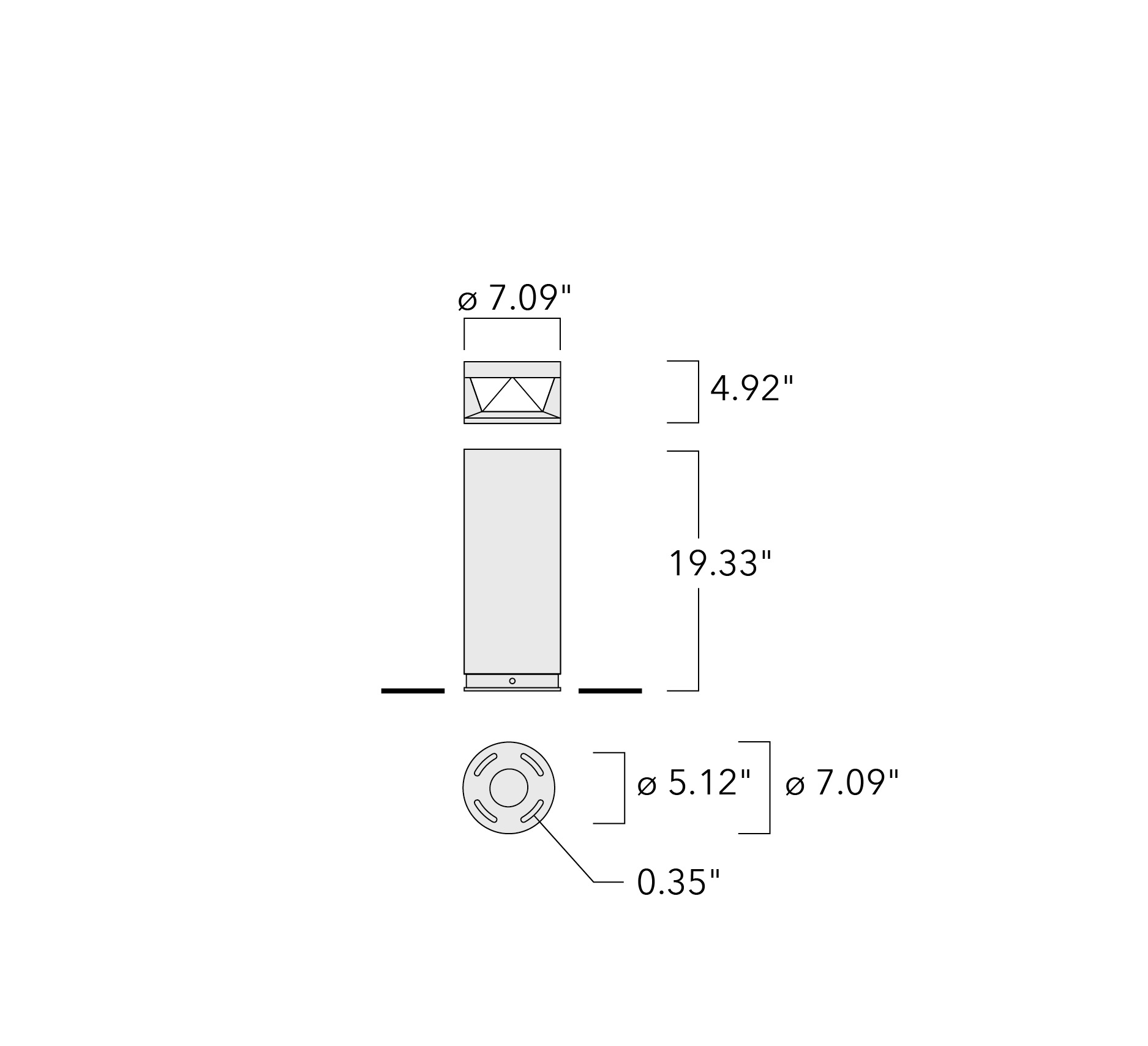

600 mm 600 mm
1.000 mm 1.000 mm

IP66. Class I. IK10. Marine-grade, all aluminum construction. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate lens. CAD-optimized indirect optics for superior illumination and glare control. Integral driver in thermally separated compartment. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire.
Luminaire spacing up to 35 ft; ideal for pathway lighting applications. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

Eigenschaften

Material

GehäuseMarine-grade all-aluminum construction
SchraubenPCS Polymer Coated Stainless Steel Hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK10
SchutzartIP66
AbdeckungPowdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019
Korrosionsschutz5CE
Befestigung

Elektrik

LED TreiberIntegral EC electronic converter
Kabel
Leistungsfaktor
NetzIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
ÜberspannungsschutzIntegral 10kV Surge Protector

Weitere Eigenschaften

LifetimeTa=25°/40° L90B10 > 90000h
Lead TimeThis is a new product release and may have an extended lead time.
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
114-9179symmetric distribution [C60]LED-6/18W / 1050 mA - 3000 K82580electronic gear14.74
114-9181symmetric distribution [C60]LED-6/26W / 1400 mA - 3000 K1055.380electronic gear14.74
114-9180symmetric distribution [C60]LED-6/18W / 1050 mA - 4000 K863.480electronic gear14.74
114-9173rectangular, side throw [R65]LED-3/9W / 1050 mA - 3000 K519.780electronic gear14.74
114-9174rectangular, side throw [R65]LED-3/9W / 1050 mA - 4000 K543.980electronic gear14.74
114-9182symmetric distribution [C60]LED-6/26W / 1400 mA - 4000 K1103.380electronic gear14.74
114-9175rectangular, side throw [R65]LED-3/13W / 1400 mA - 3000 K664.780electronic gear14.74
114-9176rectangular, side throw [R65]LED-3/13W / 1400 mA - 4000 K694.980electronic gear14.74
114-9179asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 3000 K450.480electronic gear14.74
114-9180asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 4000 K471.380electronic gear14.74
114-9181asymmetric, forward-throw, one-sidedLED-6/26W / 1400 mA - 3000 K576.180electronic gear14.74
114-9182asymmetric, forward-throw, one-sidedLED-6/26W / 1400 mA - 4000 K602.380electronic gear14.74
114-9183symmetric distribution [C60]LED-6/18W / 1050 mA - 2700 K786.780electronic gear14.74
114-9184symmetric distribution [C60]LED-6/26W / 1400 mA - 2700 K997.780electronic gear14.74
114-9187rectangular, side throw [R65]LED-3/9W / 1050 mA - 2700 K495.580electronic gear14.74
114-9188rectangular, side throw [R65]LED-3/13W / 1400 mA - 2700 K616.480electronic gear14.74
Showing 1 to 16 of 16 Entries
