DLS200 series

DLS229 LED

Static White

Choose a family:

17W | 262 mm | DLS229 28W | 350 mm | DLS239
Home
Products
Wall luminaires surface mounted

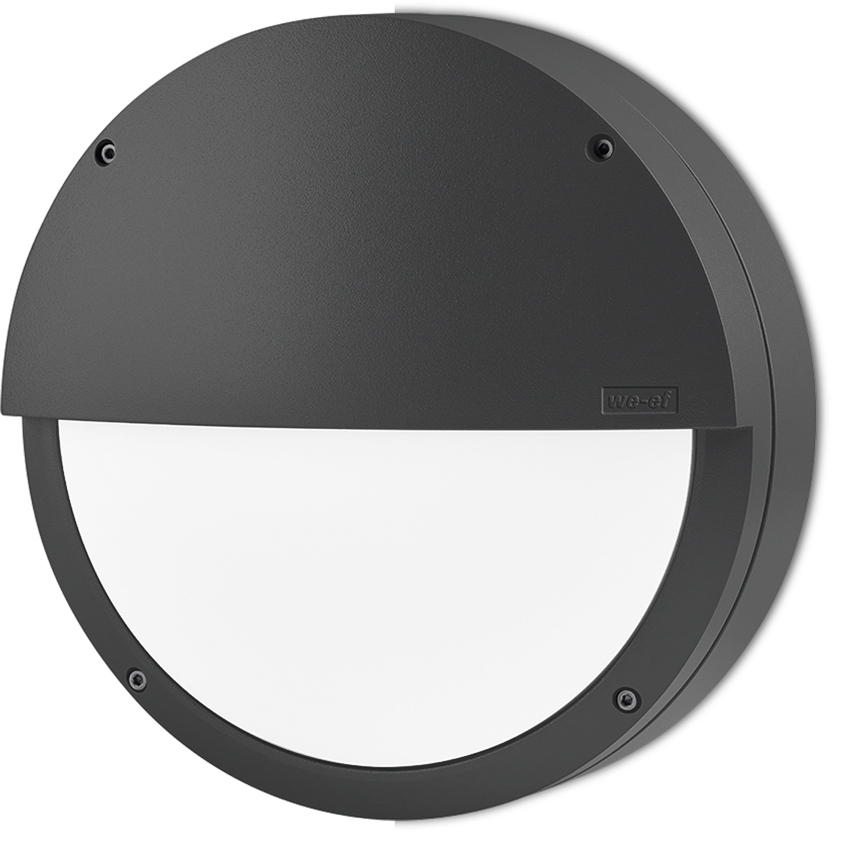

DLS229 LED
Family Spec Sheet Installation Instructions More Downloads

IP55, Class I. Class II on request. IK10. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone rubber gasket. Polycarbonate main lens. Two cable entries. Factory installed LED circuit board. Integral EC electronic converter.

DLS229 LED Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone rubber gasket
Impact ProtectionIK10
Ingress ProtectionIP55
FinishPowdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter
Power Supply220-240V / 50-60 Hz
Surge Protection1/2 kV
Additional Information
LifetimeTa=25° L70B50 > 50000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRISpecificationsPhotometrics
TextPDF
195-9527diffused distributionLED-FT-17W / 500 mA - 3000 K974.480
195-9528diffused distributionLED-FT-17W / 500 mA - 4000 K1015.780
195-0897diffused distributionLED-FT-17W / 500 mA - 2700 K931.680
Showing 1 to 3 of 3 Entries
