FLC141 LED

FLC141 LED

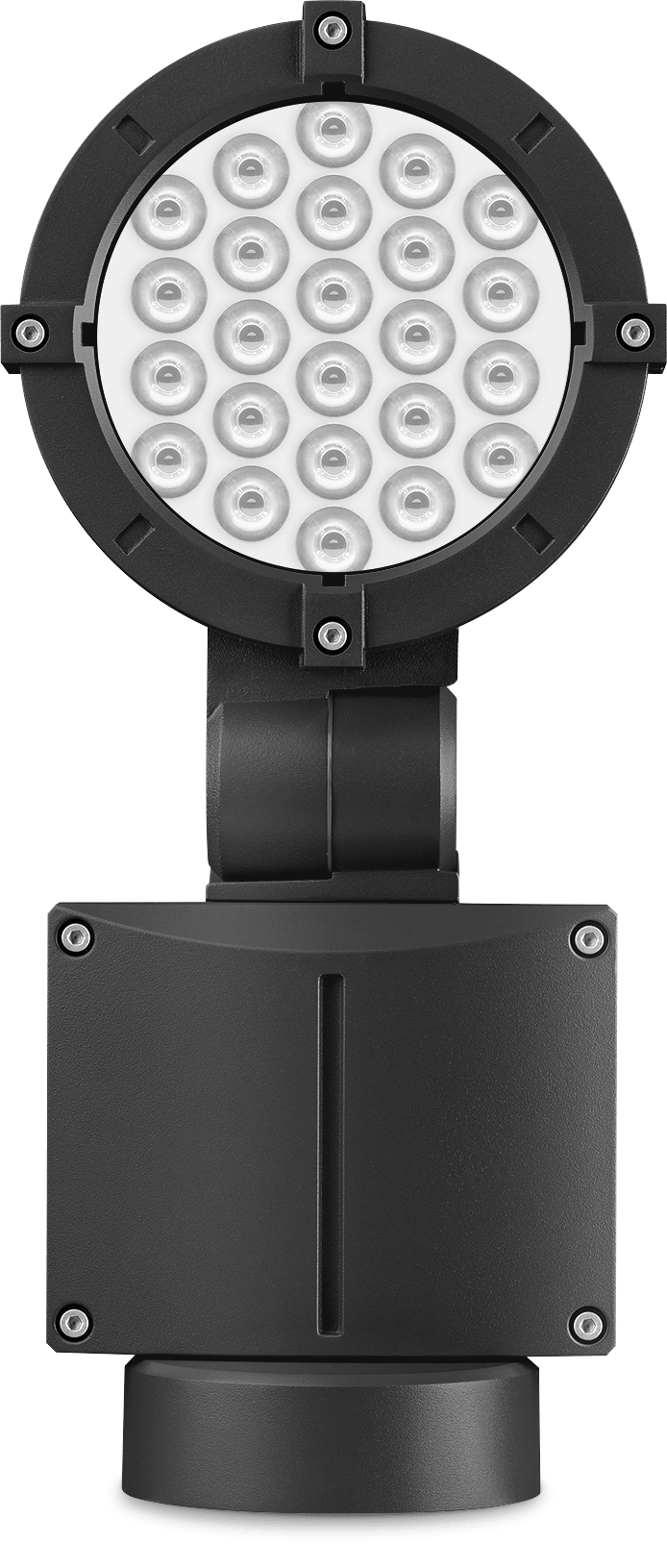

IP66, Class I. Class II on request. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory- sealed and does not need to be opened during the installation. Optional 2200 K version available. To be specified at time of ordering.

FLC141 LED Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Power Supply220-240V / 50-60 Hz
Surge Protection1/2 kV
Additional Information
LifetimeTa=25° L90B10 > 90000h
Energy efficiency classC-D (Light source)

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
146-7050symmetric, medium beam [M]LED-24/48W / 700 mA - 3000 K6047.280
146-7051symmetric, medium beam [M]LED-24/48W / 700 mA - 4000 K6464.280
146-7052symmetric, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 3000 K6442.780
146-7053symmetric, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 4000 K688780
146-7062symmetric, wide beam [B]LED-24/48W / 700 mA - 3000 K5388.580
146-7063symmetric, wide beam [B]LED-24/48W / 700 mA - 4000 K5760.180
146-7064symmetric, very narrow beam [EE]LED-24/48W / 700 mA - 3000 K5986.180
146-7065symmetric, very narrow beam [EE]LED-24/48W / 700 mA - 4000 K6398.980
146-7064linear spread, very narrow beam [EE]LED-24/48W / 700 mA - 3000 K5545.280
146-7065linear spread, very narrow beam [EE]LED-24/48W / 700 mA - 4000 K5927.680
146-7052linear spread, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 3000 K6104.980
146-7053linear spread, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 4000 K652680
146-7050wallwashLED-24/48W / 700 mA - 3000 K4851.980
146-7051wallwashLED-24/48W / 700 mA - 4000 K5186.680
146-0963symmetric, wide beam [B]LED-24/48W / 700 mA - 2700 K5016.980
146-0965symmetric, medium beam [M]LED-24/48W / 700 mA - 2700 K5630.180
146-0964symmetric, very narrow beam [EE]LED-24/48W / 700 mA - 2700 K5573.380
146-0872symmetric, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 2700 K5998.480
146-0965wallwashLED-24/48W / 700 mA - 2700 K4517.380
146-0964linear spread, very narrow beam [EE]LED-24/48W / 700 mA - 2700 K5162.880
146-0872linear spread, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 2700 K5683.980
Showing 1 to 21 of 21 Entries

Accessories

Part-IDTitlePDFOpen Data
146-0229Glare shield ES
