ETC100/300 | Fixed

50 mm 50 mm 65 mm 65 mm
ETC109 Standard Depth100 mm 100 mm 95 mm 95 mm
ETC11_ Standard Depth150 mm 150 mm 160 mm 160 mm
ETC329 Reduced Depth180 mm 180 mm 252 mm 252 mm
ETC339 Reduced Depth
1W 2W 3W
Home
Products
Inground luminaires
ETC110-1 LED

ETC110-1 LED

Family Spec Sheet

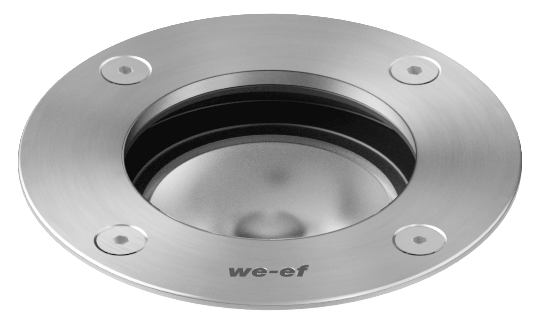

IP67. 12V - 24V AC/DC. Class III. IK09. Stainless steel construction including PCS hardware. Silicone rubber gasket. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 1.5 m of flexible PVC free cable. IP68 in-line connector facilitates easy removal for off-site lamp replacement. Electronic converter required. To be ordered separately. CAD-optimised optics for superior illumination and glare control. Factory installed LED circuit board. The optional installation blockout is recommended for mounting. To be ordered separately. The luminaire is not suitable for permanent underwater operation.

ETC110-1 LED Schematics
Colors
Material

Body: Stainless steel construcion

Fasteners: PCS polymer coated stainless steel

Gasket: Silicone rubber gasket

Impact Protection: IK09

Ingress Protection: IP67

Finish: Stainless steel

Corrosion Protection:

Mounting:

Electrical

Ballast / Driver: Electronic converter required. To be ordered separately.

Cable: 1.5 m of flexible PVC free cable

Power Factor:

Power Supply:

Surge Protection: 1/2 kV (optional SP10)

Additional Information

Lifetime: Ta=25° L90B10 > 90000h

Energy efficiency class: C-D (Light source)

:

Light Distribution

Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
185-2770symmetric, medium beam [M]LED-1/2W / 24V AC/DC - 3000 K233.880
185-2771symmetric, medium beam [M]LED-1/2W / 24V AC/DC - 4000 K249.975
185-2772symmetric, very narrow beam, sharp cut-off [EES]LED-1/2W / 24V AC/DC - 3000 K226.580
185-2773symmetric, very narrow beam, sharp cut-off [EES]LED-1/2W / 24V AC/DC - 4000 K242.175
185-3536symmetric, medium beam [M]LED-1/2W / 24V AC/DC - 2700 K217.780
185-3537symmetric, very narrow beam, sharp cut-off [EES]LED-1/2W / 24V AC/DC - 2700 K210.980
Showing 1 to 6 of 6 Entries
