DAS110-PR LED

DAS110-PR LED

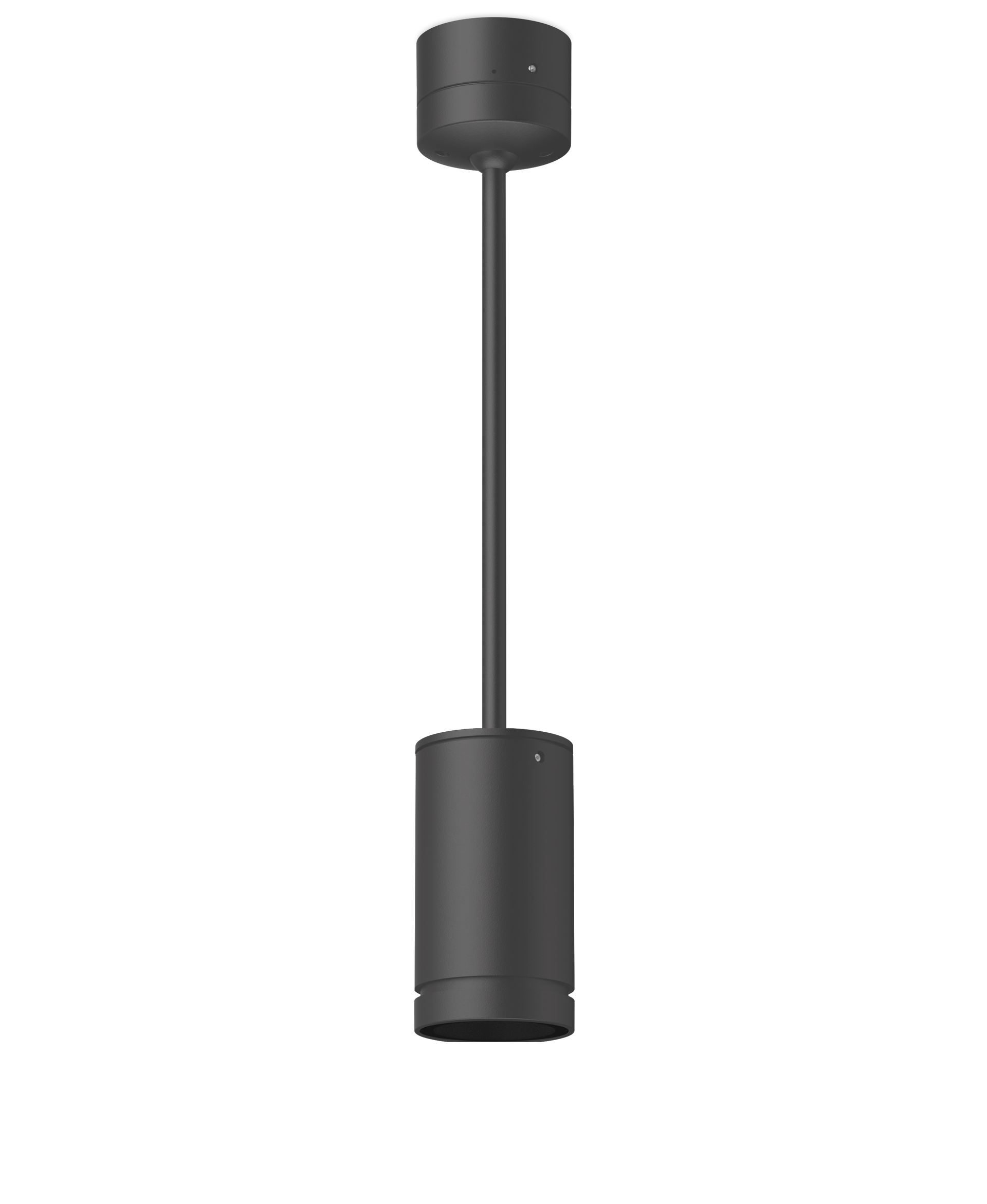

IP66, Class I. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Silicone CCG® gasket. Safety glass lens. Two cable entries. Ceiling mount through canopy. Pendelum rod 0.5 - 1.5 m can be selected in 0.1 m increments. To be specified at time at ordering. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Other standardised housing lengths available on request. Optional 2200 K version available. To be specified at time of ordering

DAS110-PR LED Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, all aluminium construction
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Corrosion Protection5CE
MountingCable suspension 0.5 m, ceiling mount through canopy. Longer cable suspension available on request
Electrical
Ballast / DriverIntegral EC electronic converter
CableTwo cable entries
Power Factor>0.9
Power Supply220-240V / 50-60 Hz
Surge Protection1/2 kV
Additional Information
LifetimeTa=25° L90B10 > 90000h
Energy efficiency classC-D (Light source)

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
134-2394symmetric, wide beam [B]LED-6/12W / 700 mA - 2700 K107080
134-2395symmetric, wide beam [B]LED-6/12W / 700 mA - 3000 K1149.280
134-2396symmetric, wide beam [B]LED-6/12W / 700 mA - 4000 K1228.580
134-2437symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1201.180
134-2438symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1290.180
134-2439symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K137980
134-2440symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 2700 K1347.780
134-2441symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K1447.680
134-2442symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1547.480
134-2443symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 2700 K142480
134-2444symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K1529.580
134-2445symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K163580
Showing 1 to 12 of 12 Entries

Accessories

Part-IDTitlePDFOpen Data
134-2104IO-180-DAC110
