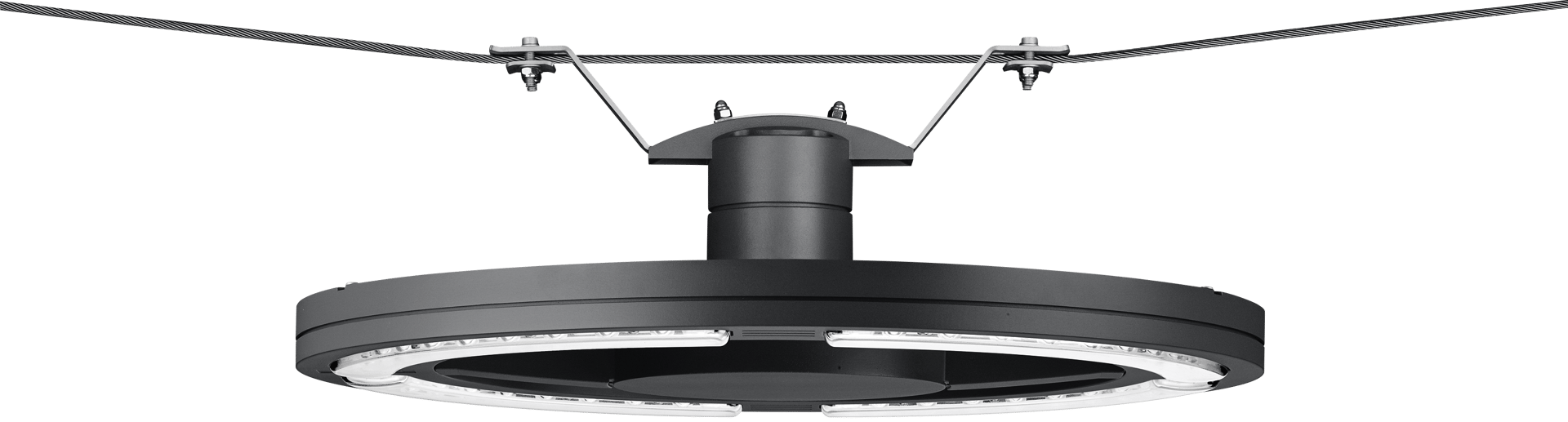

CFS540 LED

CFS540 LED

Family Spec Sheet

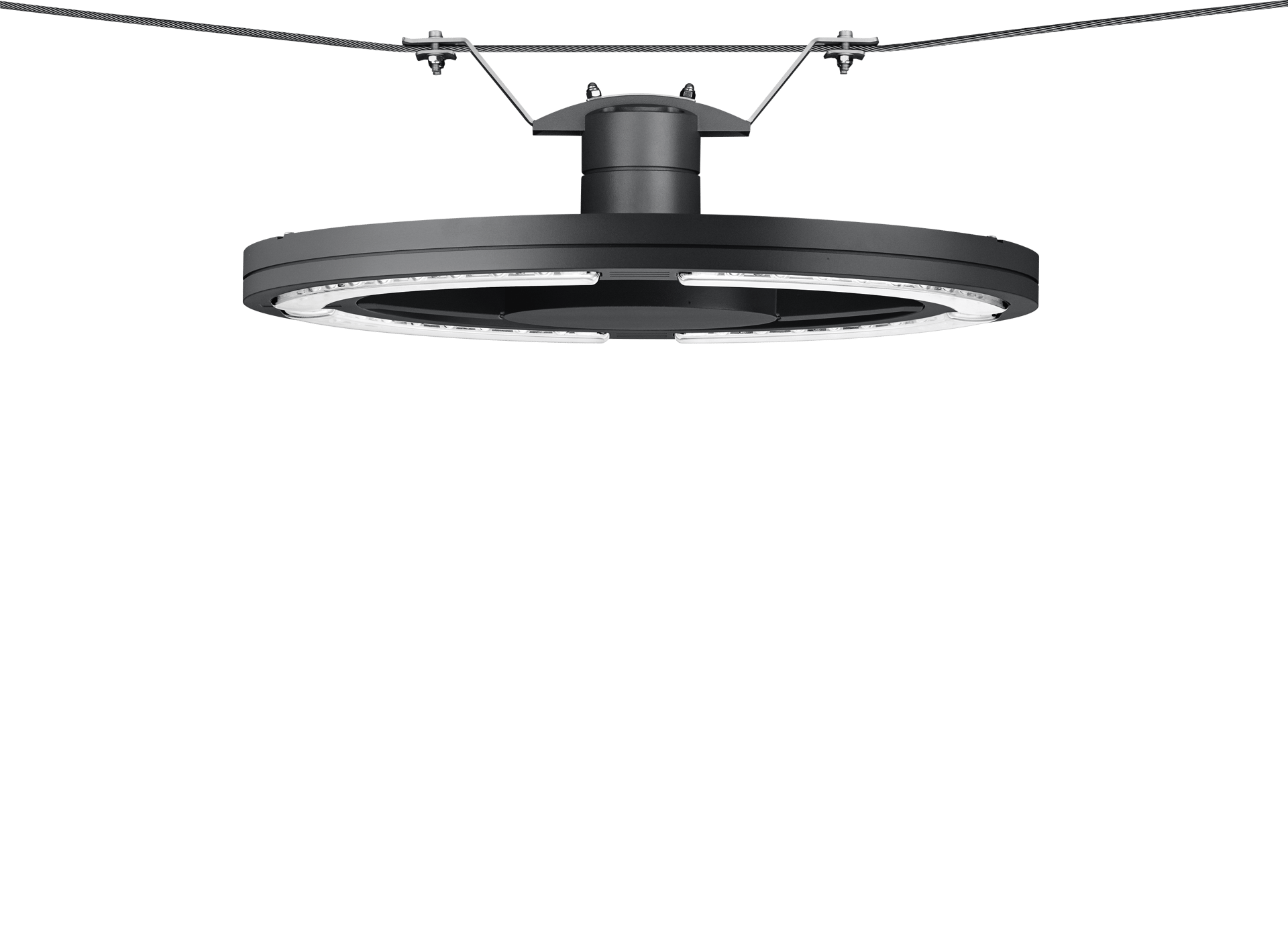

IP66, Class I. Class II on request. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. RFC® Reflection Free Contour main lens. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Optional 2200 K version available. To be specified at time of ordering. Includes cable connector, for cable 9-14 mm. +/- 14° adjustable to compensate for sloping catenary systems.

CFS540 LED Schematics
Colors
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
RAL8019 Grey brown
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
FinishPowdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016
Corrosion Protection5CE
Mounting
Electrical
Ballast / DriverIntegral EC electronic converter
CableIncludes cable connector, for cable 9-14 mm
Power Factor< 0.9
Power Supply220-240V / 50-60 Hz
Surge Protection6/6 kV (optional SP10)
Additional Information
LifetimeTa=25° L90B10 > 90000h
Energy efficiency classC-D (Light source)

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
105-0138controlled symmetric distribution [C50]LED-36/36W / 350 mA - 3000 K5268.980
105-0139controlled symmetric distribution [C50]LED-36/36W / 350 mA - 4000 K5778.880
105-0146controlled symmetric distribution [C50]LED-36/72W / 700 mA - 3000 K9381.480
105-0147controlled symmetric distribution [C50]LED-36/72W / 700 mA - 4000 K10028.480
105-0150controlled symmetric distribution [C50]LED-36/108W / 1050 mA - 3000 K14032.380
105-0151controlled symmetric distribution [C50]LED-36/108W / 1050 mA - 4000 K1468580
105-0140rectangular [R]LED-36/36W / 350 mA - 3000 K521280
105-0141rectangular [R]LED-36/36W / 350 mA - 4000 K5716.480
105-0148rectangular [R]LED-36/72W / 700 mA - 3000 K9279.980
105-0149rectangular [R]LED-36/72W / 700 mA - 4000 K9919.980
105-0152rectangular [R]LED-36/108W / 1050 mA - 3000 K13644.580
105-0153rectangular [R]LED-36/108W / 1050 mA - 4000 K14279.180
105-0249controlled symmetric distribution [C50]LED-36/36W / 350 mA - 2700 K492980
105-0250controlled symmetric distribution [C50]LED-36/72W / 700 mA - 2700 K8734.480
105-0251controlled symmetric distribution [C50]LED-36/108W / 1050 mA - 2700 K13379.780
105-0252rectangular [R]LED-36/36W / 350 mA - 2700 K4875.780
105-0253rectangular [R]LED-36/72W / 700 mA - 2700 K8639.980
105-0254rectangular [R]LED-36/108W / 1050 mA - 2700 K13009.880
105-0251-70controlled symmetric distribution [C50]LED-36/108W / 1050 mA - 2700 K15337.770
105-0254-70rectangular [R]LED-36/108W / 1050 mA - 2700 K14913.770
105-0150-70controlled symmetric distribution [C50]LED-36/108W / 1050 mA - 3000 K15990.370
105-0152-70rectangular [R]LED-36/108W / 1050 mA - 3000 K15548.370
105-0151-70controlled symmetric distribution [C50]LED-36/108W / 1050 mA - 4000 K1664370
105-0153-70rectangular [R]LED-36/108W / 1050 mA - 4000 K1618370
105-0249-70controlled symmetric distribution [C50]LED-36/36W / 350 mA - 2700 K5268.970
