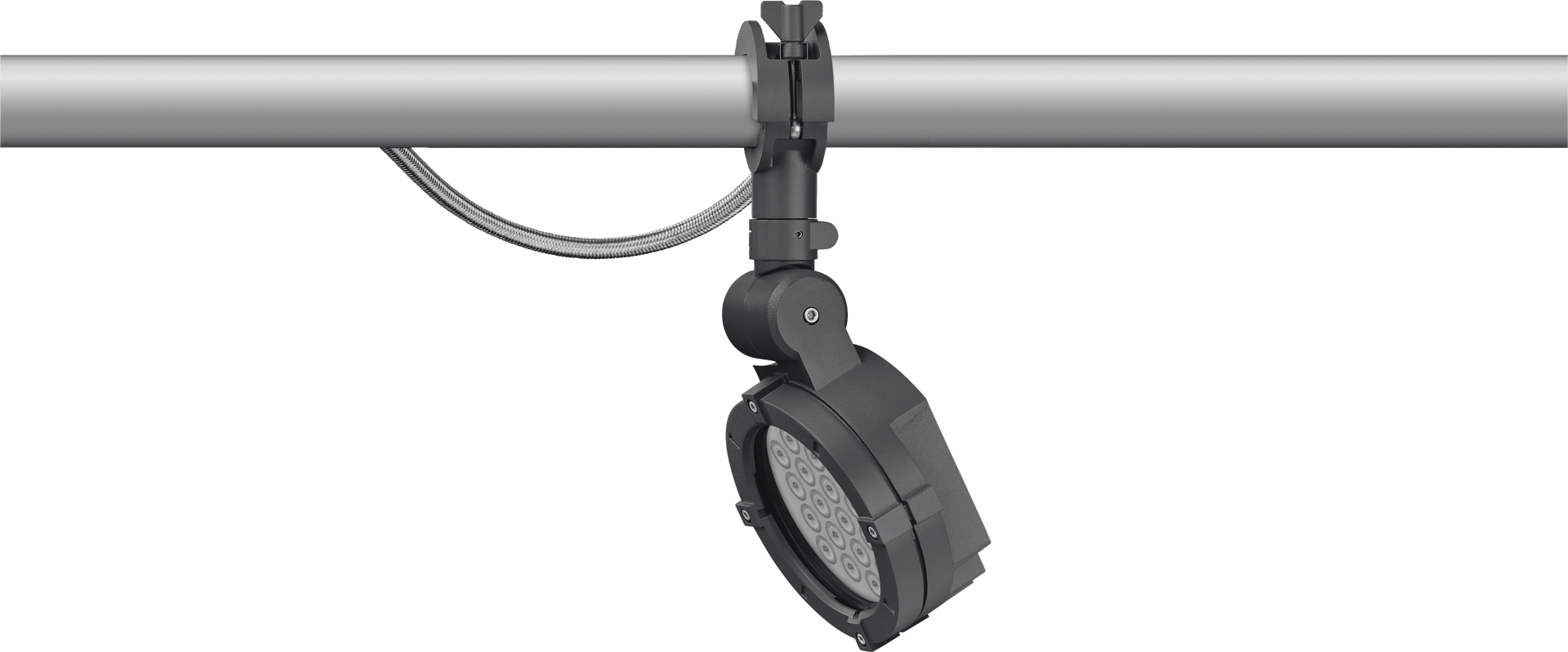

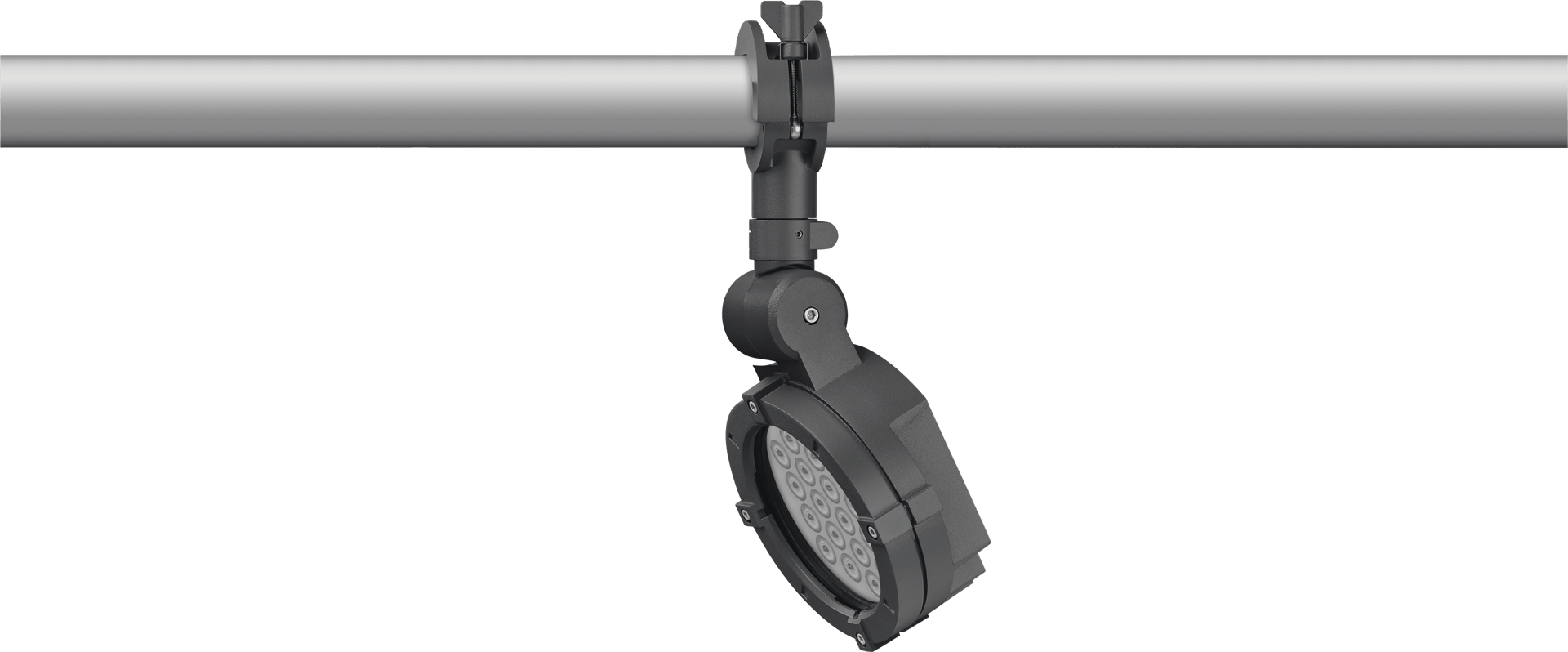

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Including terminal box, for mounting on ø 48-60 mm pipes or space frames.

FLC141 LED Space frame Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Corrosion Protection5CE
MountingIncluding terminal box, for mounting on ø 48-60 mm pipes or space frames
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Additional Information

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
146-7092symmetric, wide beam [B]LED-24/48W / 700 mA - 3000 K5388.580
146-7093symmetric, medium beam [M]LED-24/48W / 700 mA - 3000 K6047.280
146-7094symmetric, very narrow beam [EE]LED-24/48W / 700 mA - 3000 K5986.180
146-7095symmetric, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 3000 K6442.780
146-7097symmetric, wide beam [B]LED-24/48W / 700 mA - 4000 K5760.180
146-7098symmetric, medium beam [M]LED-24/48W / 700 mA - 4000 K6464.280
146-7099symmetric, very narrow beam [EE]LED-24/48W / 700 mA - 4000 K6398.980
146-7100symmetric, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 4000 K688780
146-7093wallwashLED-24/48W / 700 mA - 3000 K4851.980
146-7098wallwashLED-24/48W / 700 mA - 4000 K5186.680
146-7084symmetric, wide beam [B]LED-24/48W / 700 mA - 2700 K5016.980
146-7085symmetric, medium beam [M]LED-24/48W / 700 mA - 2700 K5630.180
146-7086symmetric, very narrow beam [EE]LED-24/48W / 700 mA - 2700 K5573.380
146-7087symmetric, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 2700 K5998.480
Showing 1 to 14 of 14 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
146-0229Glare shield ES
