FLC100 series

FLC121 LED Space frame

Static White

Choose a variant:

RAIL66
Space Frame

Choose a family:

⌀105 mm | FLC121 LED Space frame ⌀145 mm | FLC131 LED Space frame ⌀180 mm | FLC141 LED Space frame
Home
Products
RAIL66
FLC121 LED Space frame
Family Spec Sheet Installation Instructions More Downloads

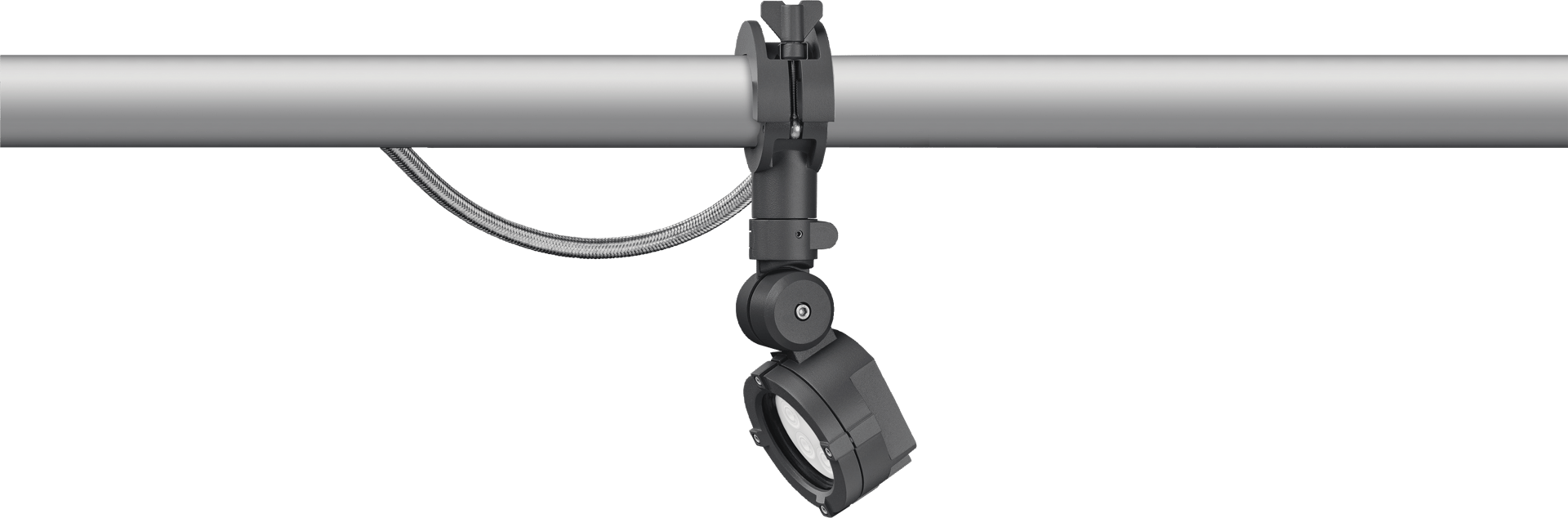

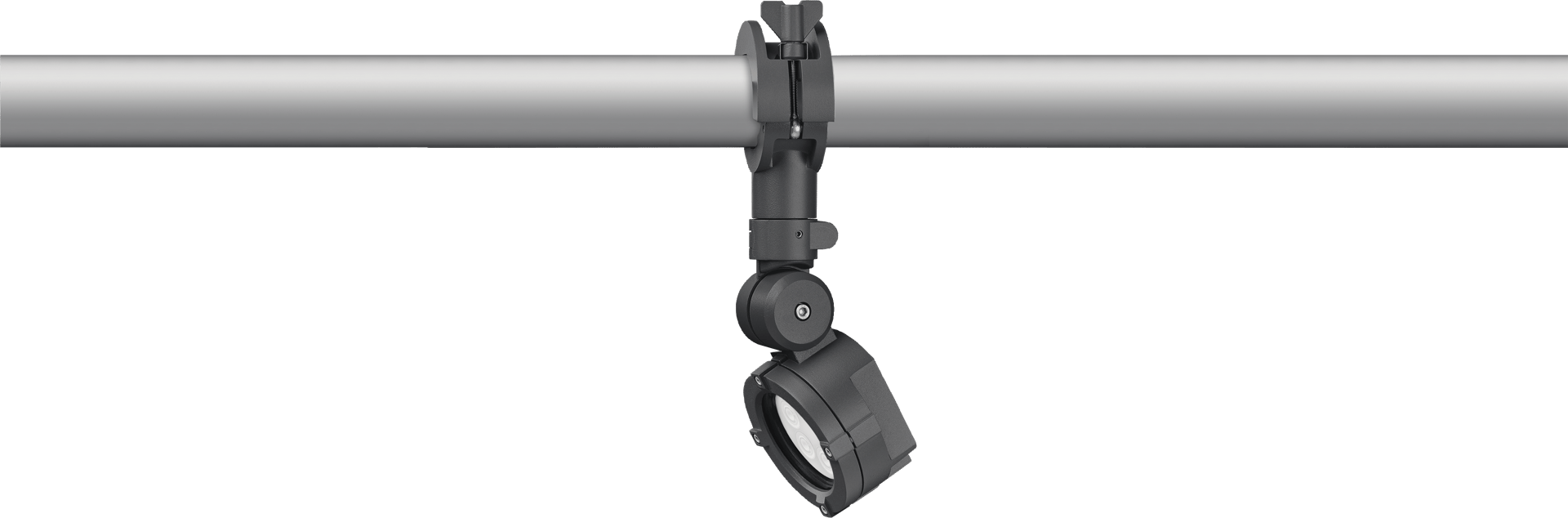

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Including terminal box, for mounting on ø 48-60 mm pipes or space frames.

FLC121 LED Space frame Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Corrosion Protection5CE
MountingIncluding terminal box, for mounting on ø 48-60 mm pipes or space frames
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Additional Information

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
145-9749symmetric, wide beam [B]LED-6/12W / 700 mA - 3000 K1347.180
145-9750symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1511.880
145-9751symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K1496.580
145-9752symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K1610.780
145-9755symmetric, wide beam [B]LED-6/12W / 700 mA - 4000 K144080
145-9756symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1616.180
145-9757symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1599.780
145-9758symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1599.780
145-9750wallwashLED-6/12W / 700 mA - 3000 K121380
145-9756wallwashLED-6/12W / 700 mA - 4000 K1296.680
145-9930symmetric, wide beam [B]LED-6/12W / 700 mA - 2700 K1254.280
145-9931symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1407.580
145-9932symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 2700 K1393.380
145-9933symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 2700 K1499.680
Showing 1 to 14 of 14 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
145-0030Snoot ET
