LTP400

Choose a variant:

1.500 mm 1.500 mm 4.000 mm 4.000 mm

Downloads

Family Spec Sheet Installation Instructions More Downloads
Home
Products
Light columns
LTP444 LED-FT

LTP444 LED-FT

Trilight column. IP44. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Silicone rubber gaskets. Prismatic polycarbonate lenses. Integral EC electronic converter. CAD-optimized lens for superior illumination and glare control. Service door with fused cable connecting box. Planted root available on request.

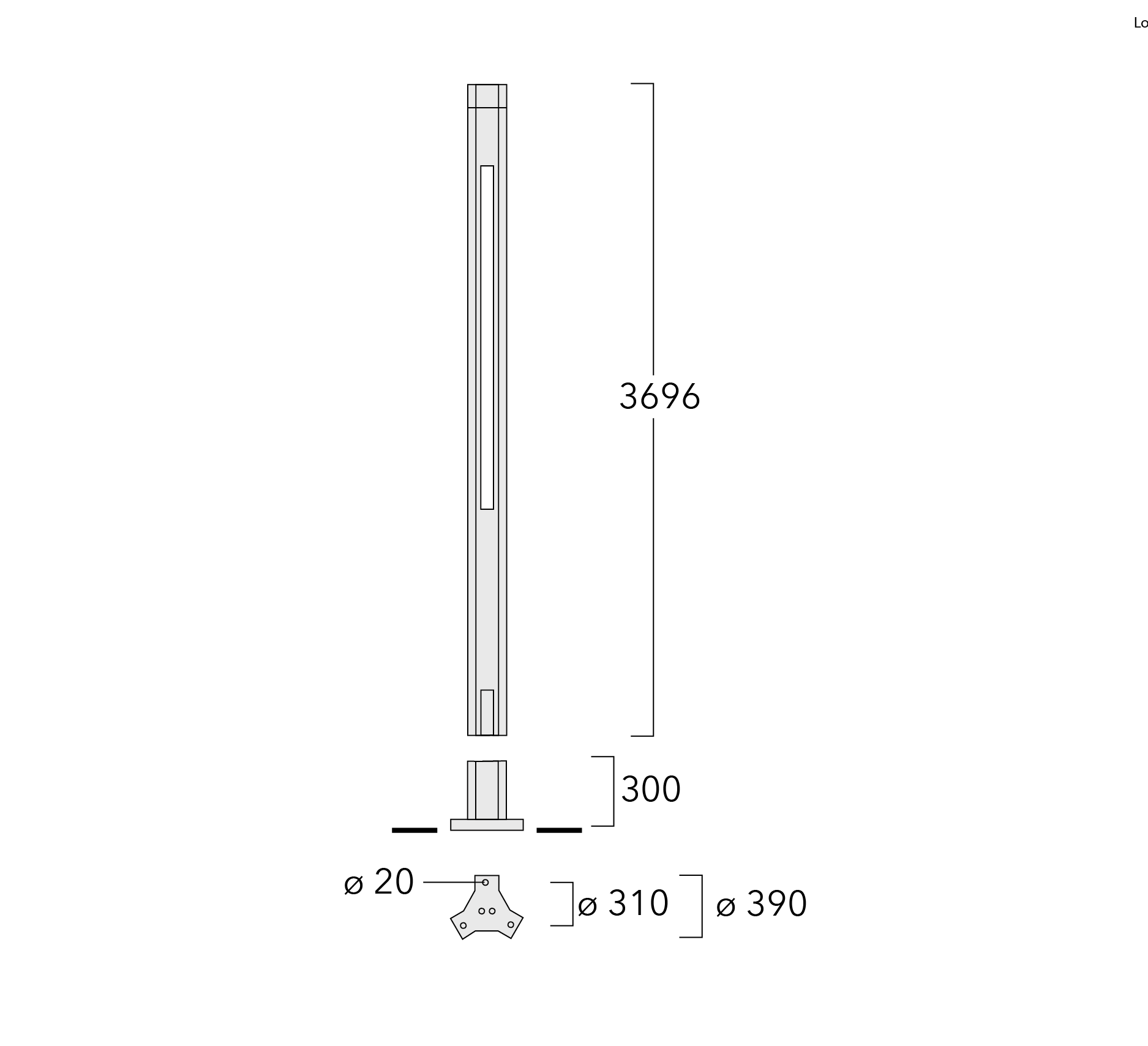

LTP444 LED-FT Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, all-aluminium construction
FastenersPCS hardware
GasketSilicone rubber gasket
Impact ProtectionIK10
Ingress ProtectionIP44
FinishPowdercoat finish in black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter
Power Factor> 0.9
Power Supply220-240V / 50-60 Hz
Additional Information
LifetimeTa=25° L70B50 > 50000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
116-0207three sided light outputLED-FT-37W / 1050 mA - 3000 K2546.580
116-0205three sided light outputLED-FT-37W / 1050 mA - 4000 K2656.280
Showing 1 to 2 of 2 Entries

Accessories

Part-IDTitlePDFOpen Data
300-0456-APPlanted root ESD6
